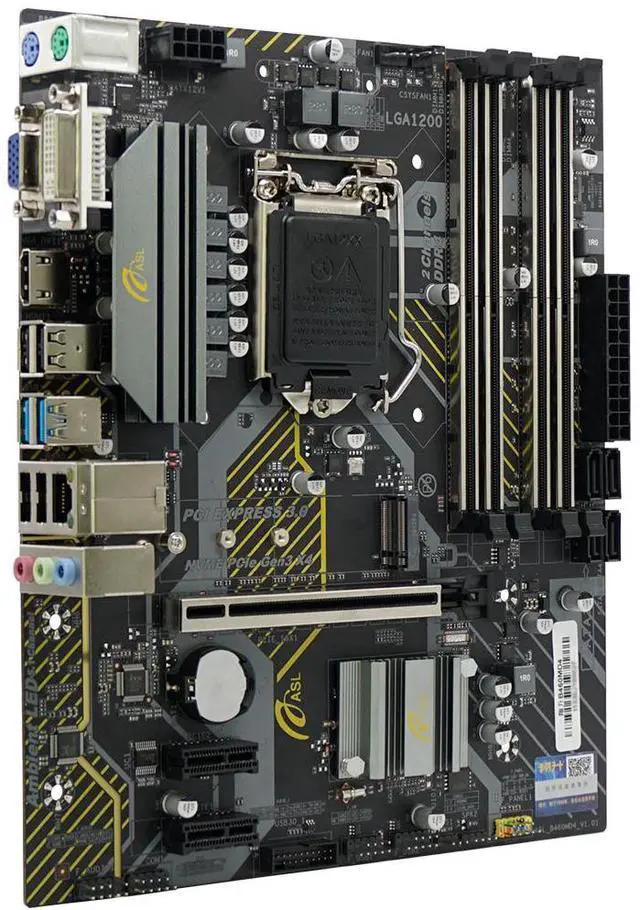

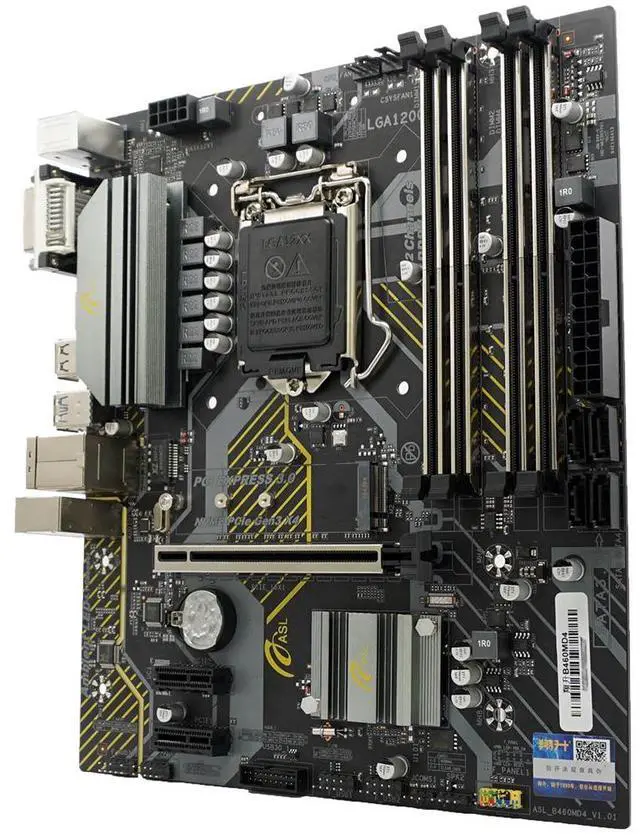

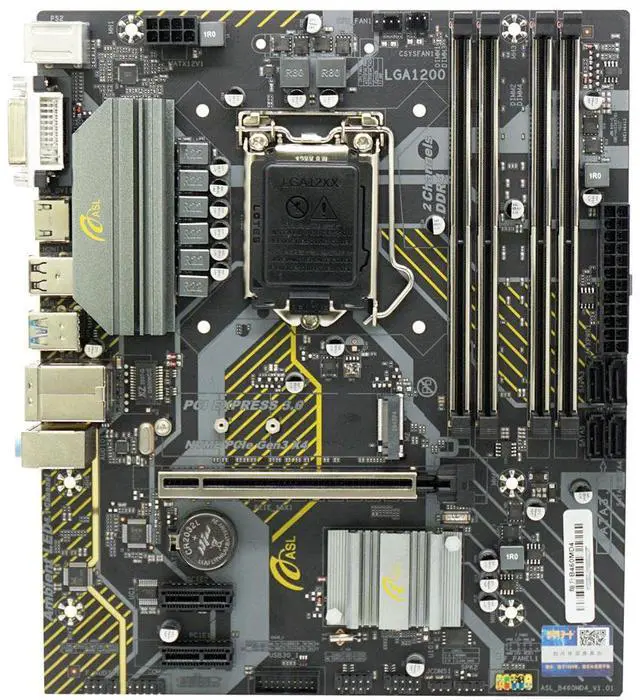

ASL B460M-D4 M-ATX Motherboard - Supports 10th Gen LGA1200, 4x DDR4, HDMI+VGA+DVI, 4×SATA3 + M.2, 1x PCI-E x16, 2x PCI-E x1 slots
Limited time offer, ends 11/30 By STELLAR
- 1. Adopts B460 desktop chipset, M - ATX form factor, with dimensions of 205×240 mm.
- 2. Supports 10th - generation, LGA1200 Socket processors, as well as Core/Pentium/Celeron series processors. It is equipped with 4 DDR4 DIMM memory slots, supporting a maximum of 128GB.
- 3. For storage, there are 4 SATA3.0 (6.0Gb/s) hard drive interfaces and 1 M.2 solid - state drive interface (NVMe protocol).
- 4. The expansion slots include 1 PCI - E x16 slot and 2 PCI - E x1 slots.
- 5. The rear panel has 1 VGA, 1 DVI, 1 HDMI video interface, as well as 4 USB2.0 and 2 USB3.0 interfaces, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Model: ASL B460M-D4
Chipset Platform: Intel B460 Desktop Chipset
Form Factor: M-ATX
Dimensions: 205 x 240 mm
Processor:
Supports Intel 10th Gen LGA1200 Socket processors
Supports Intel Core/Pentium/Celeron series processors
Memory Slots:
4x DDR4 DIMM dual-channel memory slots
Supports up to 128GB
Memory frequency support depends on motherboard/processor
Video Output Ports:
Requires processor-integrated graphics functionality
Rear 1x HDMI video output port
Rear 1x VGA video output port
Rear 1x DVI video output port
Audio:
Integrated Realtek audio chip
Supports High Definition Audio technology
Rear 3-jack audio ports
Supports 5.1 surround sound
Network:
Integrated Realtek network chip
Supports 1000M
Rear 1x RJ45 Ethernet port
Storage:
4x SATA 3.0 6.0Gb/s hard drive interfaces
1x M.2 SSD interface (NVMe protocol)
Expansion Slots:
1x PCI-E x16 slot
1x PCI-E x1 slot
1x M.2 WiFi slot

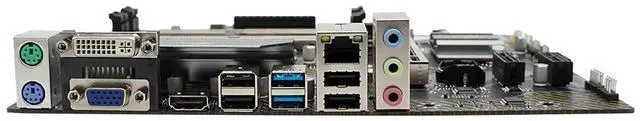

Rear Panel Ports:
1x PS/2 keyboard/mouse port
1x HDMI video output port
1x VGA video output port
1x DVI video output port
4x USB 3.0 ports
2x USB 2.0 ports
1x RJ45 Ethernet port
1x 3-Jack audio port
Internal Pins/Connectors:
1x 24-pin motherboard power connector
1x 8-pin CPU power connector
1x 4-pin CPU fan header
1x 3-pin system fan header
1x Front audio header
2x Front USB 2.0 headers
1x Front USB 3.0 header
1x COM port header
1x Buzzer header
1x CMOS clear header
1x Front panel header
