ASL B760M-D5 M-ATX Motherboard - Supports 12/13th Gen LGA1700, 2×DDR5 64GB, DP/HDMI/VGA, 2×M.2, 3 SATA, WiFi, Gigabit LAN
Limited time offer, ends 09/29 By STELLAR
- 1.CPU Compatibility: Supports 12th/13th generation LGA1700 processors, enabling straightforward upgrades.
- 2.Memory Performance: 2×DDR5 dual-channel, max 64GB, delivering high-speed data processing.
- 3.Video Interfaces: DP+HDMI+VGA triple outputs (requires integrated graphics), compatible with new and old displays.
- 4.Storage Expansion: 2×M.2 slots (including PCIe 4.0 x4) + 3×SATA 3.0, supporting high-speed SSDs and mechanical drives.
- 5.Network Connectivity: Onboard M.2 WiFi slot (compatible with third-party modules) + Gigabit Ethernet, enabling seamless wired/wireless switching.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

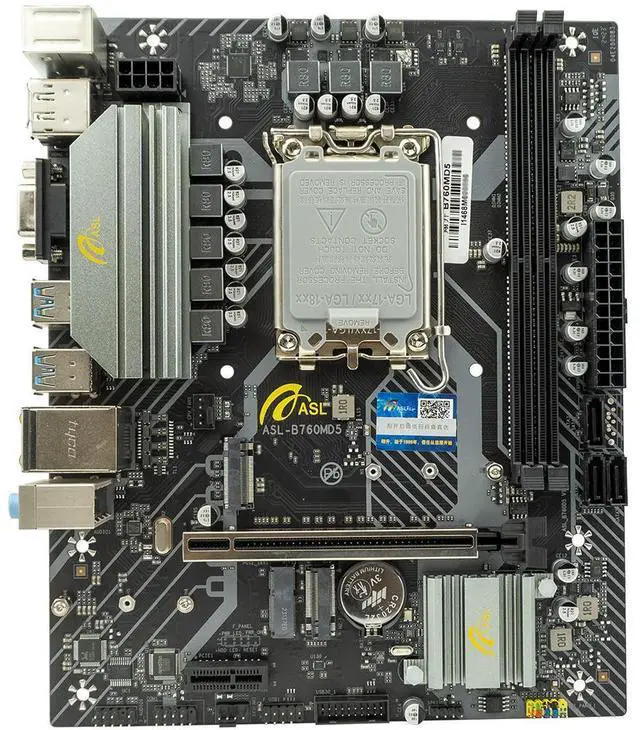

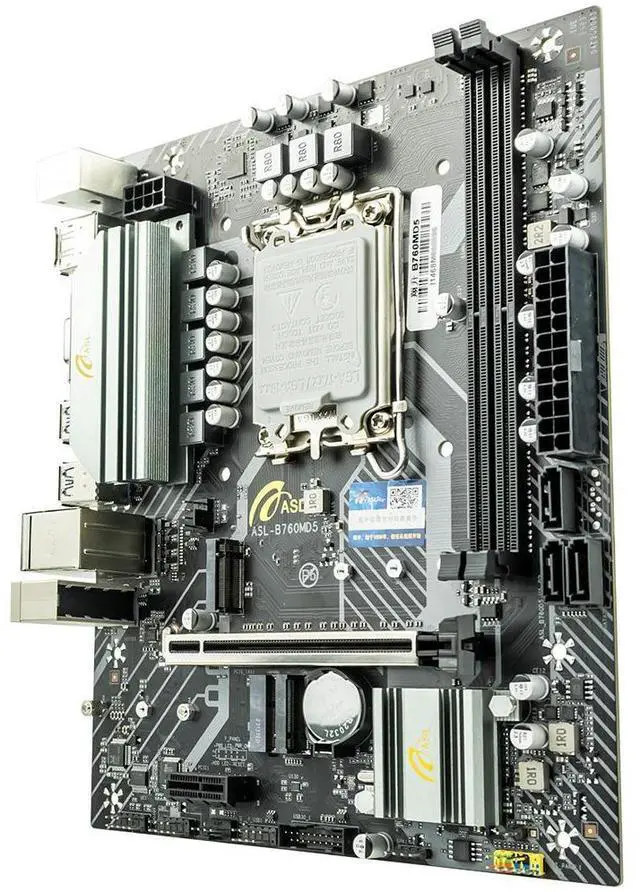

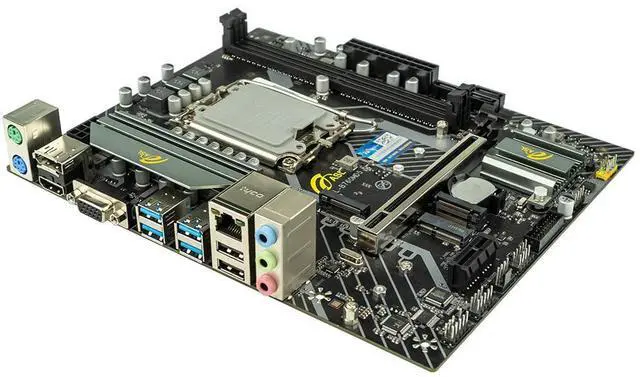

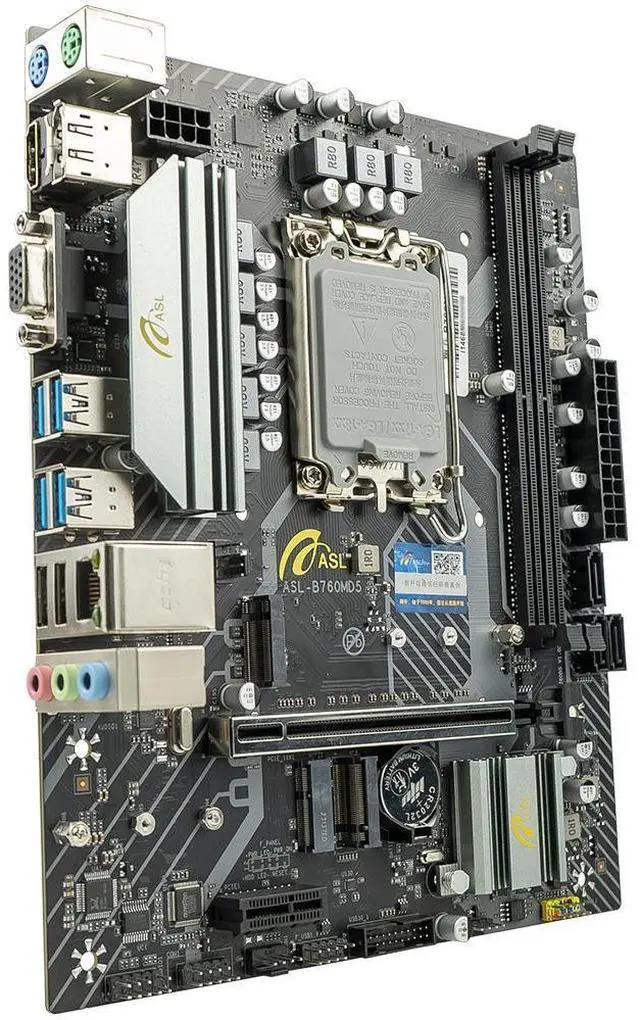

Product Model: ASL B760M-D5
Chipset Platform: Intel B-series Desktop High-Speed Chipset
Form Factor: M-ATX
Dimensions: 180 x 220 mm
Processor:
Supports Intel 12th Gen Core/Pentium/Celeron processors based on LGA1700 socket
Supports Intel 13th Gen Core/Pentium/Celeron processors based on LGA1700 socket
Memory Slots:
2x DDR5 DIMM dual-channel memory slots
Maximum support: 64GB
Memory frequency support depends on motherboard/processor
Video Output Ports:
Requires integrated graphics functionality from the processor
Rear 1x DisplayPort video output port
Rear 1x HDMI video output port
Rear 1x VGA video output port
Audio:
Integrated Realtek audio chip
Supports High Definition Audio technology
Rear 3-jack audio ports
Supports 5.1 surround sound
Network:
Integrated Realtek network chip
Supports 1000M
Rear 1x RJ45 Ethernet port
Supports WiFi expansion
Onboard 1x M.2 WiFi module slot
Supports third-party WiFi module devices
Storage:
3x SATA 3.0 6.0Gb/s hard drive interfaces
1x M.2 SSD interface (PCIe 4.0 x4, NVMe/SATA protocol adaptive, marked M2_3, located below CPU)
1x M.2 SSD interface (PCIe 3.0 x4, NVMe/SATA protocol adaptive, marked M2_2, located below PCIe)
Expansion Slots:
1x PCIe x16 slot
1x PCIe x1 slot

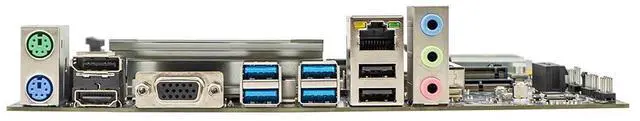

Rear Panel Connectors:
1x PS/2 keyboard/mouse port
1x DisplayPort video output
1x HDMI video output
1x VGA video output
4x USB 3.2 ports
2x USB 2.0 ports
1x RJ45 Ethernet port
1x 3-jack audio port
Internal Pins/Connectors:
1x 24-pin motherboard power connector
1x 8-pin CPU power connector
1x 4-pin CPU fan header
1x 4-pin system fan header
1x COM port header
1x Front audio header
1x Front USB 2.0 header
1x Front USB 3.2 Pin Header
1x 4-Pin External Buzzer Pin Header
1x 2-Pin CMOS Clear Pin Header
1x Front Panel Pin Header
