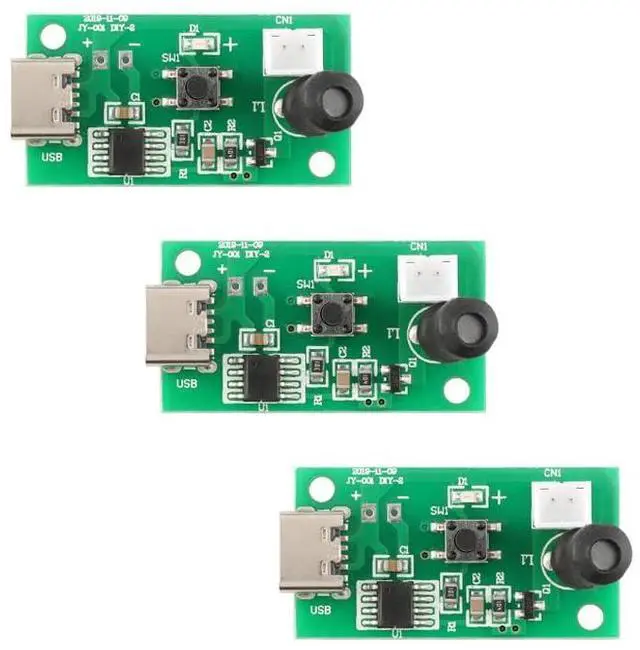

3Pcs Type-C USB Spray Humidifier Module Integrated Driver Circuit Board
- Type-C USB Humidifier Atomizer Module: This humidifier atomizer driver board kit includes a Type-C USB driver module, atomizer plate, cotton swabs, and mounting bracket, making it suitable for DIY humidifiers, misting devices, incubation experiments, aroma diffusers, and electronic projects.; 5V Low-Power Ultrasonic Mist Driver: The module operates at DC 5V with a rated current of 300mA and power of 1.52W. It can be powered by USB adapters, power banks, or other stable 5V Type-C power sources for compact desktop and portable misting applications.; Continuous and Intermittent Mist Modes: Press the switch once for continuous mist mode, with the single-color LED staying on and automatic shutoff after 4 hours. Press the switch a second time for intermittent mist mode, with the LED flashing and a 10-second spray / 5-second pause cycle, automatically shutting off after 12 hours.; Micro-Hole Atomizer Plate Included: The included atomizer plate supports DC 3V12V drive voltage, 103113kHz resonance frequency, 1.5W rated power, and 0.63W power range. It features a 20mm silicone sleeve outer diameter, 80100mm cable length, and 2.0 cable terminal for easy connection.; Compact PCB for DIY Integration: Made of 1.2mm FR-4 material, the PCB measures approximately 35 × 19 × 1.2mm. With a 25 × 38mm bracket and 8 × 100mm cotton swab included, this kit is convenient for mini humidifier assembly, humidifier repair, smart plant care, model fog effects, and creative misting devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Type-C USB Mist Humidifier Module Kit, 5V Ultrasonic Atomizer Driver PCB with Atomizer Plate, Cotton Swabs and Mounting Bracket, DIY Mini Humidifier Circuit Board for Incubation Experiments and Electronic Projects
Product
Product Type: Humidifier atomizer driver board
Rated Voltage: DC 5V
Rated Current: 300mA
Power: 1.52W
Atomization Frequency: 108kHz ± 2kHz
Material: 1.2 mm FR-4
Ambient Light: Single-color
LED PCB Dimensions: 35 × 19 × 1.2 mm
Mist Modes: Continuous mist mode, intermittent mist mode, power off Atomizer Plate
Drive Voltage: DC 3V12V
Mist Output: 25660
M/H Resonance Frequency: 103113kHz ±5
Rated Power: 1.5W
Power Range: 0.6W 3W Silicone
Sleeve Outer Diameter: 20 mm
Cable Length: 80100 mm
Cable Terminal: 2.0
Bracket Size: 25 x 38 mm
Cotton Swab Size: 8 x 100 mm Mist Mode Description Continuous Mist Mode Press the switch once: the LED stays on, entering continuous mist mode. Mist continues until the unit automatically shuts down after 4 hours for protection. Intermittent Mist Mode Press the switch a second time: The LED stays on, indicating intermittent mist mode. Mist is emitted for 10 seconds, followed by a 5-second pause, repeating in a cycle. The device automatically shuts down after 12 hours of misting for protection.
Power Off: Press the switch a third time
Product
Specifications
Product Name: Type-C USB Mist Humidifier Module KitProduct Type: Humidifier atomizer driver board
Rated Voltage: DC 5V
Rated Current: 300mA
Power: 1.52W
Atomization Frequency: 108kHz ± 2kHz
Material: 1.2 mm FR-4
Ambient Light: Single-color
LED PCB Dimensions: 35 × 19 × 1.2 mm
Mist Modes: Continuous mist mode, intermittent mist mode, power off Atomizer Plate
Specifications
Type: Micro-hole atomizer plateDrive Voltage: DC 3V12V
Mist Output: 25660
M/H Resonance Frequency: 103113kHz ±5
Rated Power: 1.5W
Power Range: 0.6W 3W Silicone
Sleeve Outer Diameter: 20 mm
Cable Length: 80100 mm
Cable Terminal: 2.0
Bracket Size: 25 x 38 mm
Cotton Swab Size: 8 x 100 mm Mist Mode Description Continuous Mist Mode Press the switch once: the LED stays on, entering continuous mist mode. Mist continues until the unit automatically shuts down after 4 hours for protection. Intermittent Mist Mode Press the switch a second time: The LED stays on, indicating intermittent mist mode. Mist is emitted for 10 seconds, followed by a 5-second pause, repeating in a cycle. The device automatically shuts down after 12 hours of misting for protection.
Power Off: Press the switch a third time
