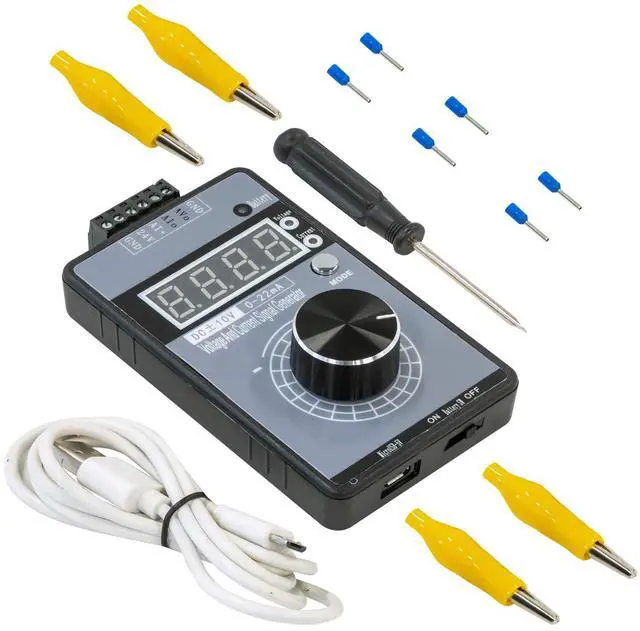

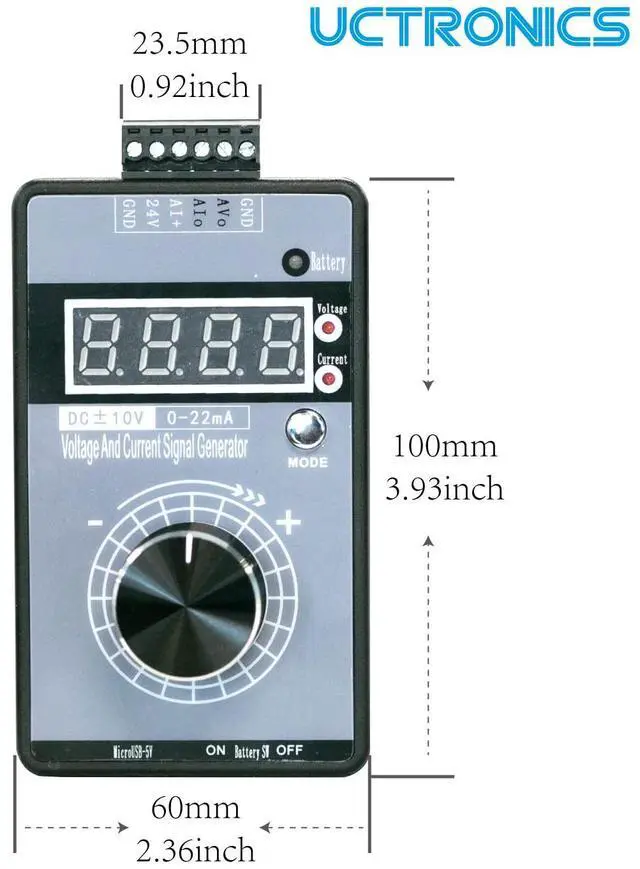

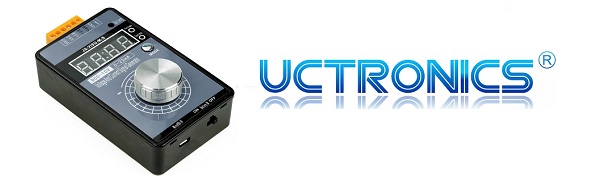

UCTRONICS signal generator is designed to simulate DC ±10V voltage signal and 0/4-20mA current signal for PLC and panel Debugging, Device Testing, Frequency Converter, Flow Valve, ect. Very easy to use, it can be connected with micro USB-5V power supply or DC 15-30V external power. What’s more, it can display 4 different types of digit, DC ±10V voltage, 0-22mA current, 0-100 percent and 0-50HZ. It will play a important role in your electronics work.

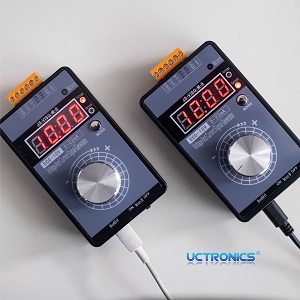

Note: We have two different thickness signal generators on sale, different in versions.

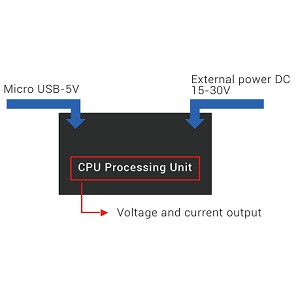

Power Supply:

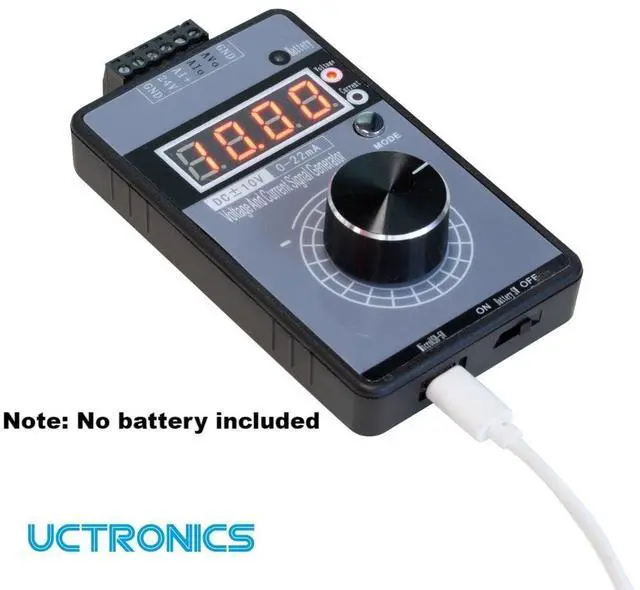

3 ways: rechargeable battery(not included), external micro USB-5V, and external power DC 15-30V, each way makes the generator work
When used outdoors, it can be connected with a mobile power supply conveniently.

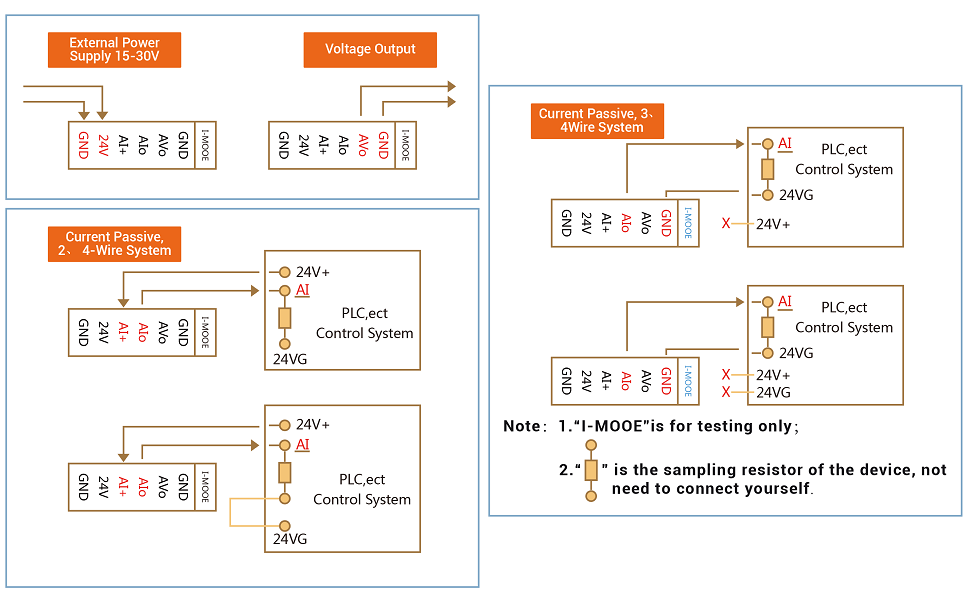

Wiring Diagram:
How to judge whether the module device is active or passive? Common methods below:
1. Internal principle of the device, it is passive if "I+" is 24V+; it is active if “I-“ is 24VG;
2. Use a multimeter to measure the voltag between “I+” and “I-”, it is active if the vaule is 0V; it is passive if the vaule is 24V.

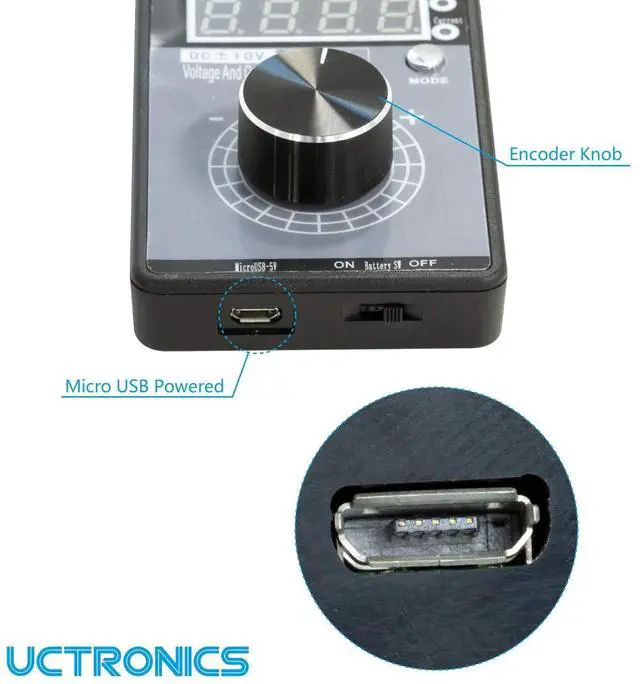

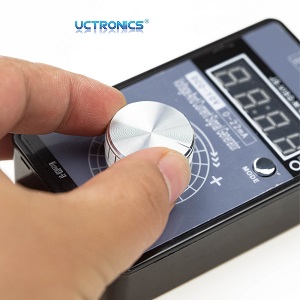

Encoder Knob:
Supports stepless adjustable ratation, better performance and longer service life than normal potentiometer.
Reliable:
Clear LED display.
No matter in PCL debugging or other electronics work, it always simulates the signal you need.

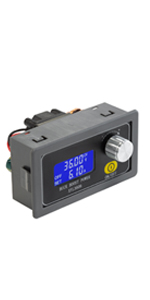

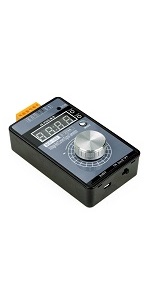

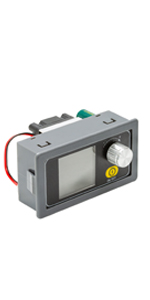

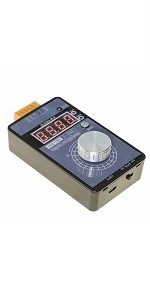

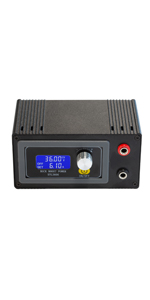

 DC 0-10V 4-20mA Signal Generator |  DC 0-10V 4-20mA Signal Generator |  DC 6A Variable Voltage Power Supply |  DC 6A Power Converter with Enclosure |  Mini Buck Boost Converter |  Adjustable Buck Boost Converter | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — no data | — no data | — no data | — no data |
| Features | USB Power | Built-in Battery | DC 6-30V to 0-36V 6A | Ready-to-use, Metal Case | DC 6-30V Up to 0-36V 5A 180W | 6-36V to 0.6-36V Adjustable |
