KEHIPI Adjustable 4-20mA Signal Generator Current Voltage Analog Simulator 0-10V/0-22mA Signal Sources with LCD Display for Value Adjusting PLC Controller Panel LED Testing Calibration
- 0-22mA/4-20mA DC 0-10V Signal Generator, Mini Adjuatable Function Generator with LCD Display, Built-in 1000mAh Rechargeable Battery Current Voltage Analog Generator for PLC & Panel Debugging
- High Precision Output: 0-10V/0-22mA, precision is 0.01V/0.01mA, rotate the encoder knob to adjust output voltage, can be calibrated.
- Power Supply: Built-in battery ,micro USB-5V or external power DC 15-30V
- The current output is 2 3 4 wires. Passive and active are fully compatible.
- Store output value when power off.Output short circuit protection, reverse connection protection, charging protection.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wide Application--- It can be used for PLC and panel debugging, device testing, frequency converter, flow valve, servo motors speed regulation, light dimmer and ect. With small size design, it is easy and convenient for you to carry it.

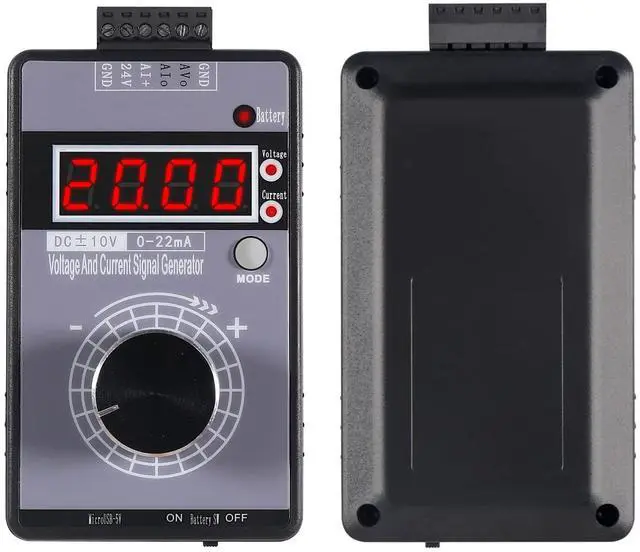

Portable LED Display Signal Generator
Specification:
- Material: ABS
- Battery Capacity: 1000mAh, 3.7V
- Maximum Charging Current: 0.8A
- External: Micro USB- 5V, Current: 0.2A (Not Charging)/1A (Charging)
- Voltage Output: -10v~+10v Adjustable, Accuracy after Calibration: 0.01V
- Current Output: 0-22mA Adjustable, Accuracy After Calibration: 0.01mA
- Current sampling resistance is not more than 500 ohms
- Encoder: 20 pulses per turn of the knob
- Power Supply: Built-in battery 1000mAh

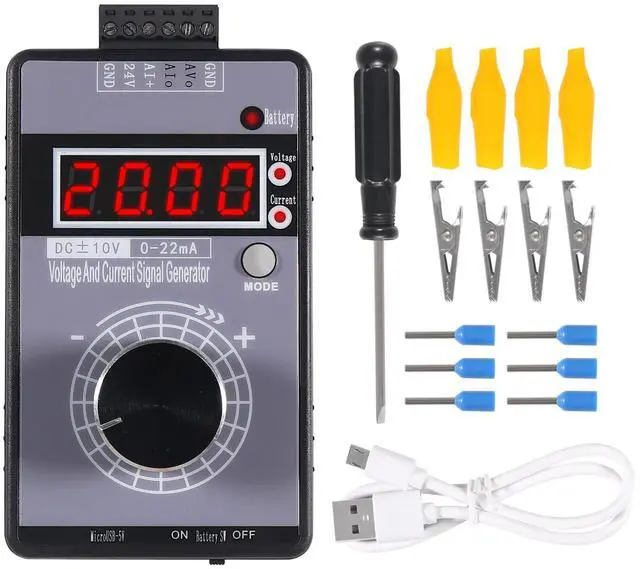

Packing List
1 x Signal Generator
1 x USB Cable
4 x Clip
4 x Insulation Clip Cover
1 x Screwdriver
6 x Terminal
1 x Manual
