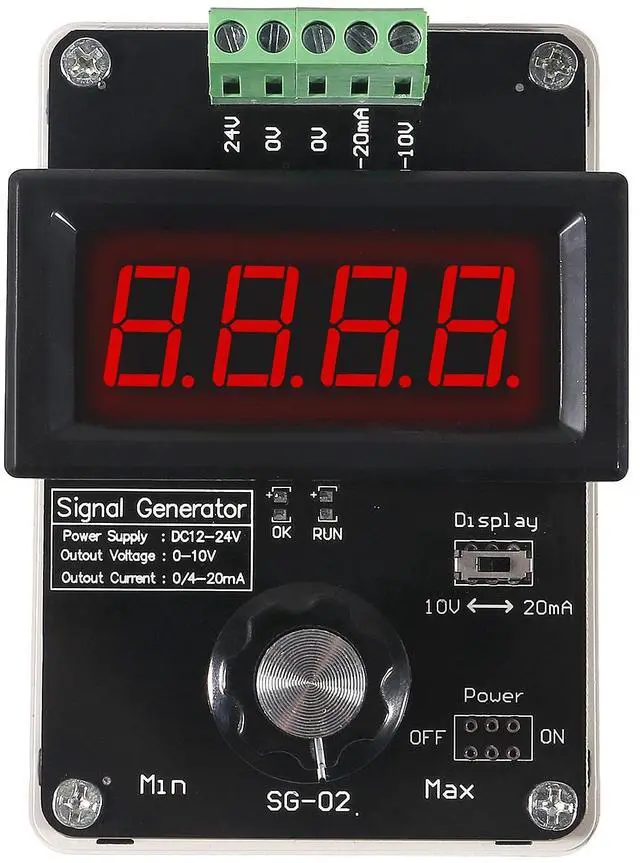

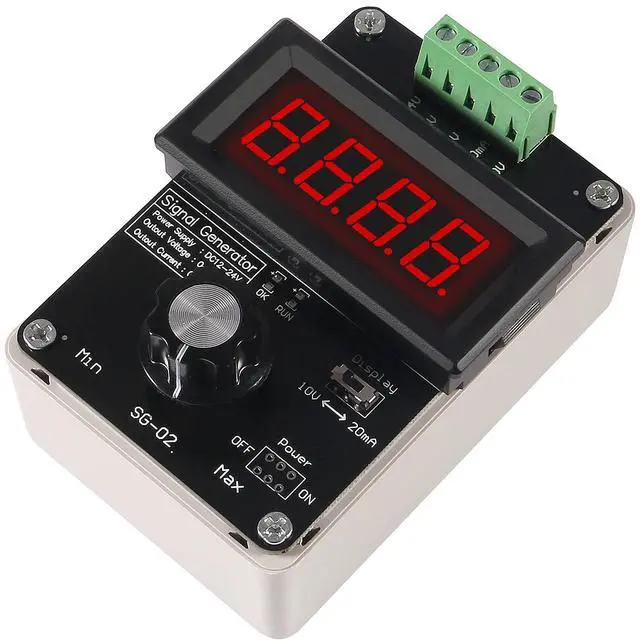

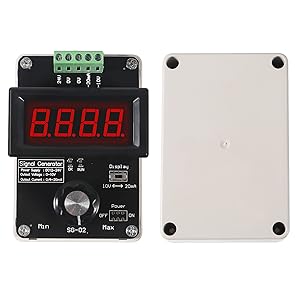

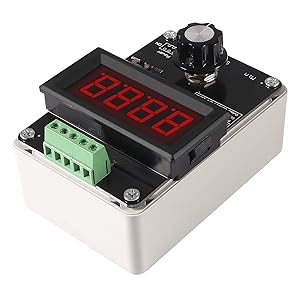

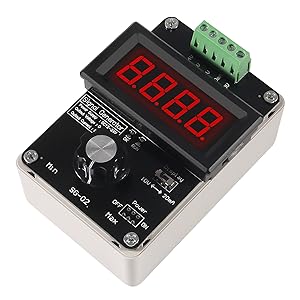

    KEHIPI 4-20mA Adjustable Signal Generator,DC 0-10V 0 4-20mA Current Voltage Analog Simulator for Value Adjusting PLC Panel LED Testing

    Be the first to review this product...
    • AITRIP versatile generator can be widely used as signal generator, value generator, value adjustment, inverter control, PLC debugging, panel debugging, LED testing, simulating the output of transmitter.
    • AITRIP signal generator kit is able to generate ampere & voltage by one module, which generate 0/4 - 20mA current signal and 0-10V voltage signal just by rotating a multi-cycle precise potentiometer, simple and handy.
    • Product Dimension: 3.93" x 2.67" x 1.49" (100mm x 68mm x 38mm), portable and convenient, easy to use.

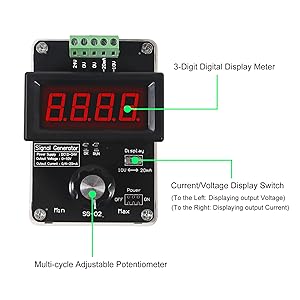

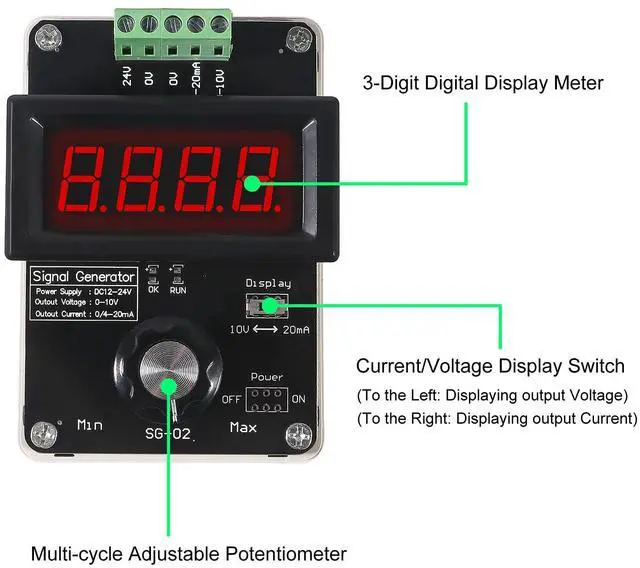

    • This 4-20mA signal generator has bright and clear 3-digit LED digital display screen, which can be used to monitor the output current and voltage. You just need to push the switch below the monitor easy to switch the display.
    • Display accuracy: Current: 0.1mA; Voltage: 0.01V
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1

    PRODUCT SPECIFICATIONS:

    • Working voltage: DC24V

    • Input signal: Potentiometer

    • Output signal: 0/4-20mA or 0-10V

    • Display accuracy: Current: 0.1mA; Voltage: 0.01V

    • Dimension: 100*68*38mm

    1

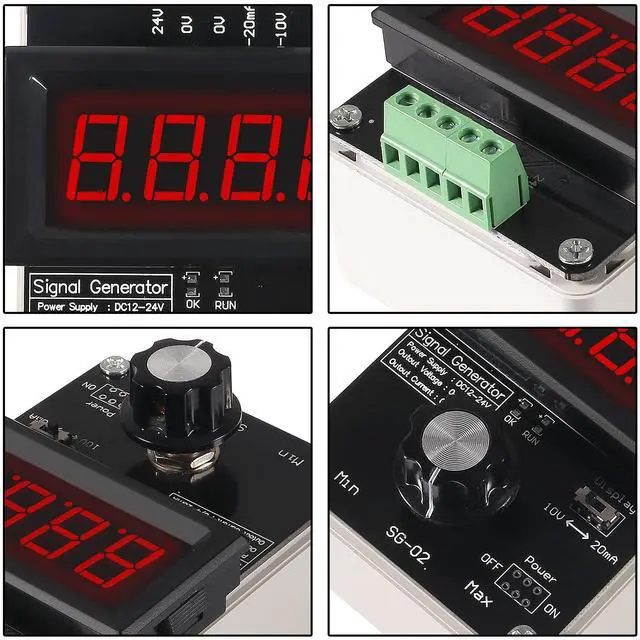

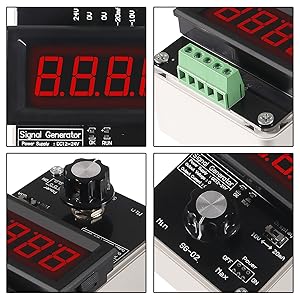

    WIRING INSTRUCTION:

    • "24V" --- Power Supply +
    • "0V" --- Power Supply -
    • "0V" --- Signal Output -
    • "0-20mA" --- Current Output +
    • "0-10V" --- Voltage Output +

    1

    DEBUGGING PROCEDURES:

    A. Current display calibration

    Clockwise rotating the multi-cycle potentiometer to the maximum, switching the display switch to the right and then using a multimeter to test the actual value of the output current. At this time, you can adjust the current display adjusting potentiometer to make the display value equal to the actual output value.

    2

    B. Voltage display calibration

    Clockwise rotating the multi-cycle potentiometer to the maximum, switching the display switch to the left and then using a multimeter to test the actual value of the output voltage. At this time, you can adjust the voltage display adjusting potentiometer to make the display value equal to the actual output value.

    1

    WIDE APPLICATION: AITRIP signal adapter can be used as signal generator, valve adjustment, inverter control, PLC debugging, panel debugging, LED testing, simulating the output of transmitter.

    Package Includes:

    1 x Signal Generator

    1

    PRODUCT SPECIFICATIONS:

    • Working voltage: DC24V

    • Input signal: Potentiometer

    • Output signal: 0/4-20mA or 0-10V

    • Display accuracy: Current: 0.1mA; Voltage: 0.01V

    • Dimension: 100*68*38mm

    1

    WIRING INSTRUCTION:

    • "24V" --- Power Supply +
    • "0V" --- Power Supply -
    • "0V" --- Signal Output -
    • "0-20mA" --- Current Output +
    • "0-10V" --- Voltage Output +

    1

    DEBUGGING PROCEDURES:

    A. Current display calibration

    Clockwise rotating the multi-cycle potentiometer to the maximum, switching the display switch to the right and then using a multimeter to test the actual value of the output current. At this time, you can adjust the current display adjusting potentiometer to make the display value equal to the actual output value.

    2

    B. Voltage display calibration

    Clockwise rotating the multi-cycle potentiometer to the maximum, switching the display switch to the left and then using a multimeter to test the actual value of the output voltage. At this time, you can adjust the voltage display adjusting potentiometer to make the display value equal to the actual output value.

    1

    WIDE APPLICATION: AITRIP signal adapter can be used as signal generator, valve adjustment, inverter control, PLC debugging, panel debugging, LED testing, simulating the output of transmitter.

    Package Includes:

    1 x Signal Generator

    WIDE APPLICATION:

    Our signal adapter can be used as signal generator, valve adjustment, inverter control, PLC debugging, panel debugging, LED testing, simulating the output of transmitter.

    DEBUGGING PROCEDURES:

    1. Current display calibration

    Clockwise rotating the multi-cycle potentiometer to the maximum, switching the display switch to the right and then using a multimeter to test the actual value of the output current. At this time, you can adjust the current display adjusting potentiometer to make the display value equal to the actual output value.

    2. Voltage display calibration

    Clockwise rotating the multi-cycle potentiometer to the maximum, switching the display switch to the left and then using a multimeter to test the actual value of the output voltage. At this time, you can adjust the voltage display adjusting potentiometer to make the display value equal to the actual output value.

    WIRING INSTRUCTION

    "24V" --- Power Supply +

    "0V" --- Power Supply -

    "0V" --- Signal Output -

    "0-20mA" --- Current Output +

    "0-10V" --- Voltage Output +

    Product Parameters:

    Working voltage: DC24V

    Input signal: Potentiometer

    Output signal: 0/4-20mA or 0-10V

    Display accuracy: Current: 0.1mA; Voltage: 0.01V

    Dimension: 100*68*38mm

    Package Includes:

    1* Signal Generator
