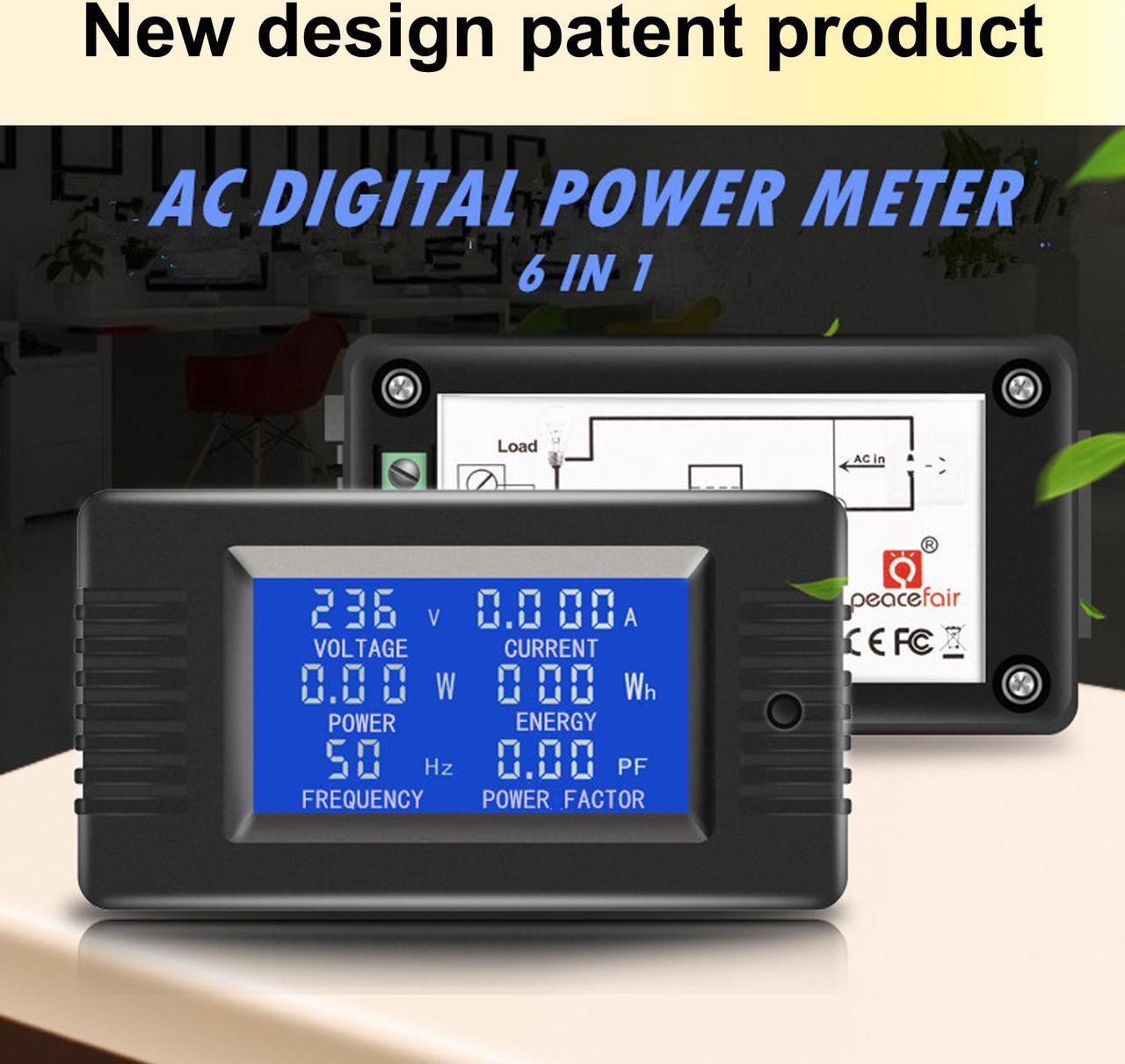

AUTENS AC Digital Meter AC 80-260V 100A Current Voltage Power Energy Panel Monitor Detector LCD Digital Display Ammeter Voltmeter Multimeter with Split Core Current Transformer CT

Features:

1.
Electrical parameter measurement function: Voltage, Current, Active Power, Energy, Frequency, Power Factor.

2.
Overload alarm function: backlight and power are flashing to alarm if it is over power alarm threshold.

3.
Power alarm threshold preset function: alarm value can be set by youself.

4.
Backlight on/off function: short press the key to turn on or off the backlight, backlight has memory function.

5.

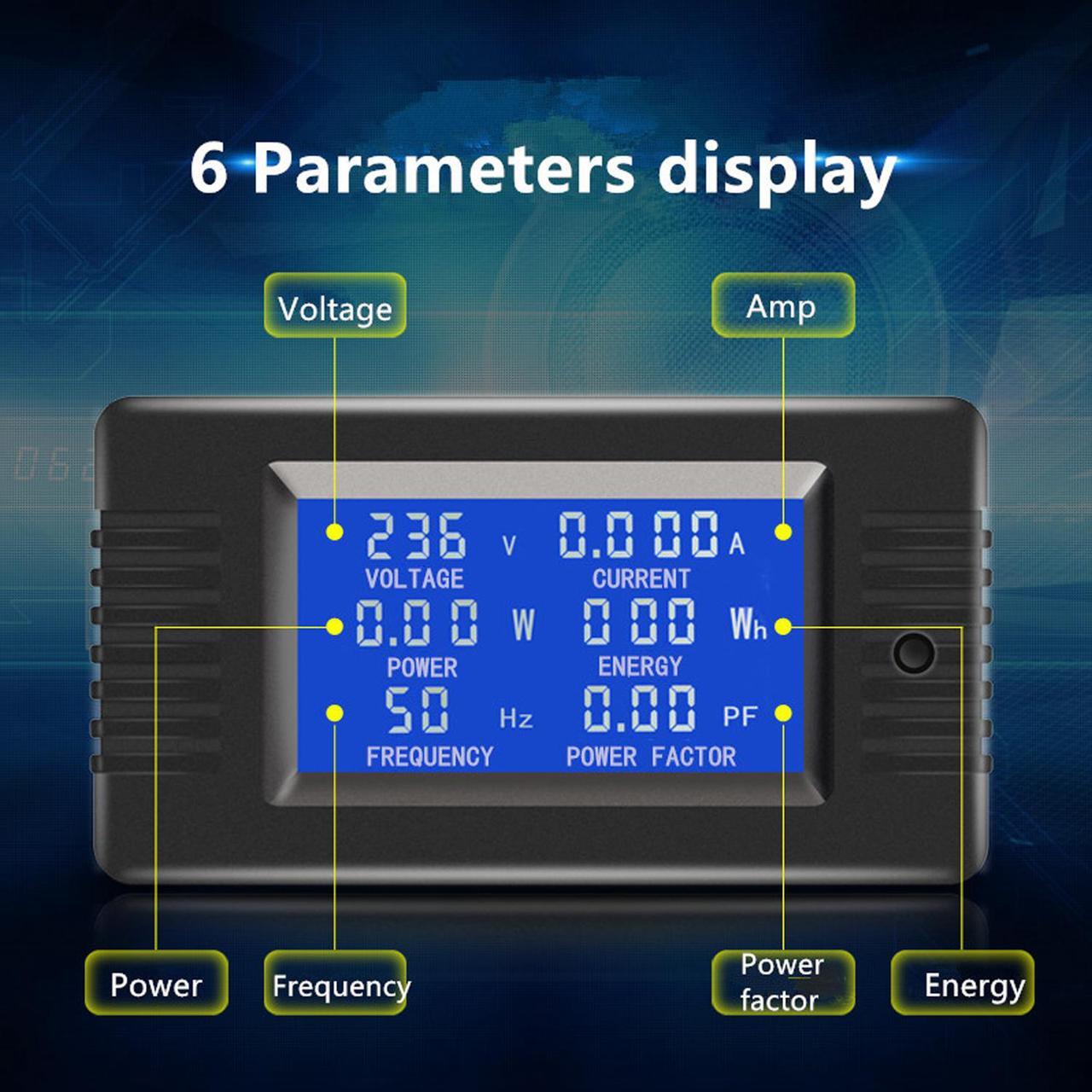

Large-screen LCD: it can display six parameters clearly at the same time.

Measuring Range:

Voltage: 80~260VAC
Current: 0~100A
Power: 0~22000W
Energy: 0~999kWh
Frequency: 45~65Hz
Power Factor: 0~1PF

Specification Parameters:

Working Voltage: 80 ~ 260VAC
Voltage Test: 80 ~ 260VAC
Rated Power: 100A/22000W
Operating Frequency: 45/65Hz
Operating Temperature Range: 14°F~140°F/-10°C~60°C
Measurement Accuracy: 1%

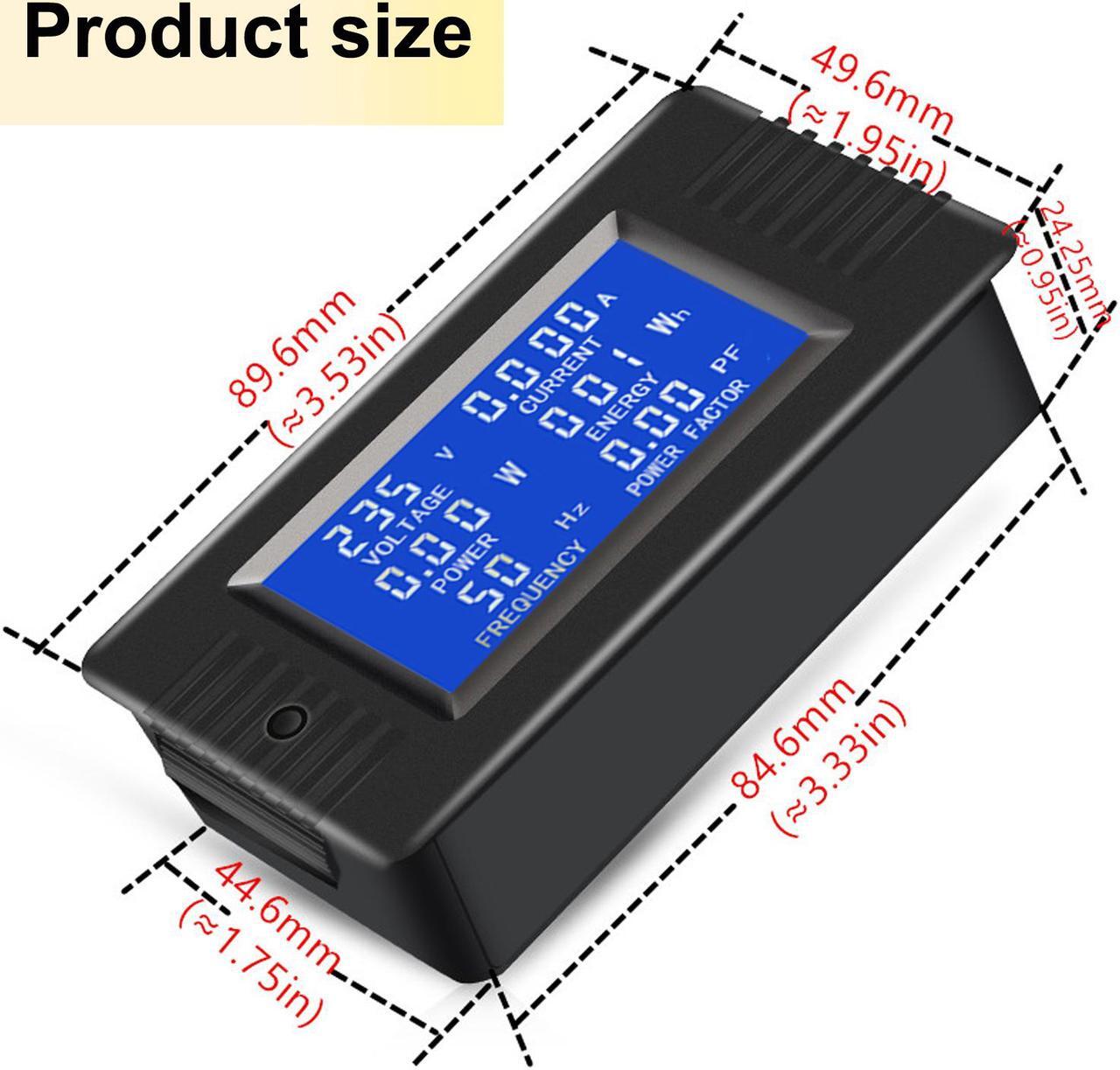

Dimension: 90x 49.6 x25mm/ 3.54 x 1.95 x 0.98 inch
Screen size: 51x30mm/2x 1.18 inch

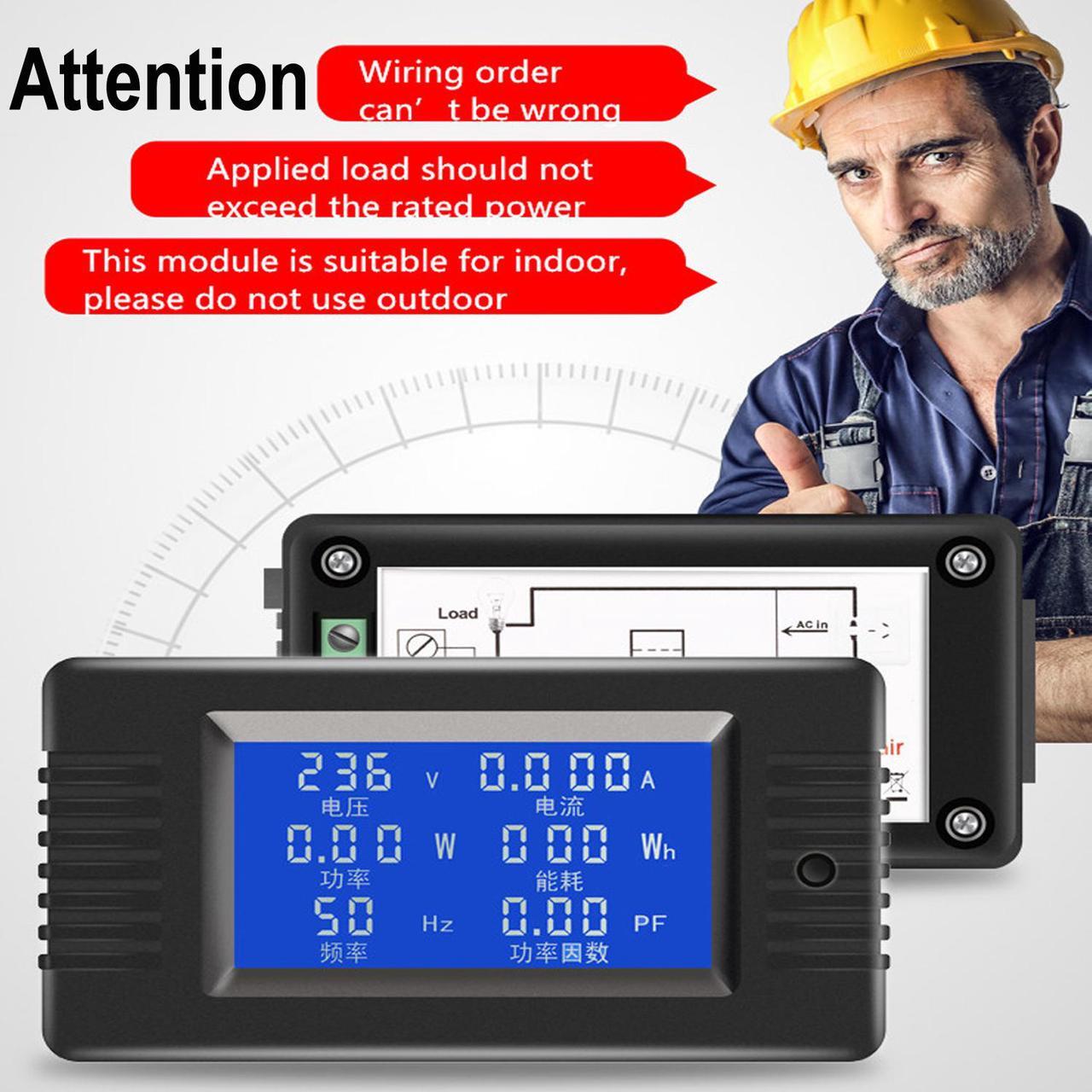

Note:

1. Please make sure the AC input is Pure Sine Wave. (Municipal electric power is pure sine wave). Please don't use the meter to measure AC power converted from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave.

2. Applied load should not exceed the rated power.

3. Wiring order cannot be wrong.

4. This meter is used for single-phase power with one hot line and one neutral line. If you want to measure the circuit with 2 hot lines, you will need 2 meters, one for each line.

5. This module is suitable for indoor applications, please do not use outdoors.

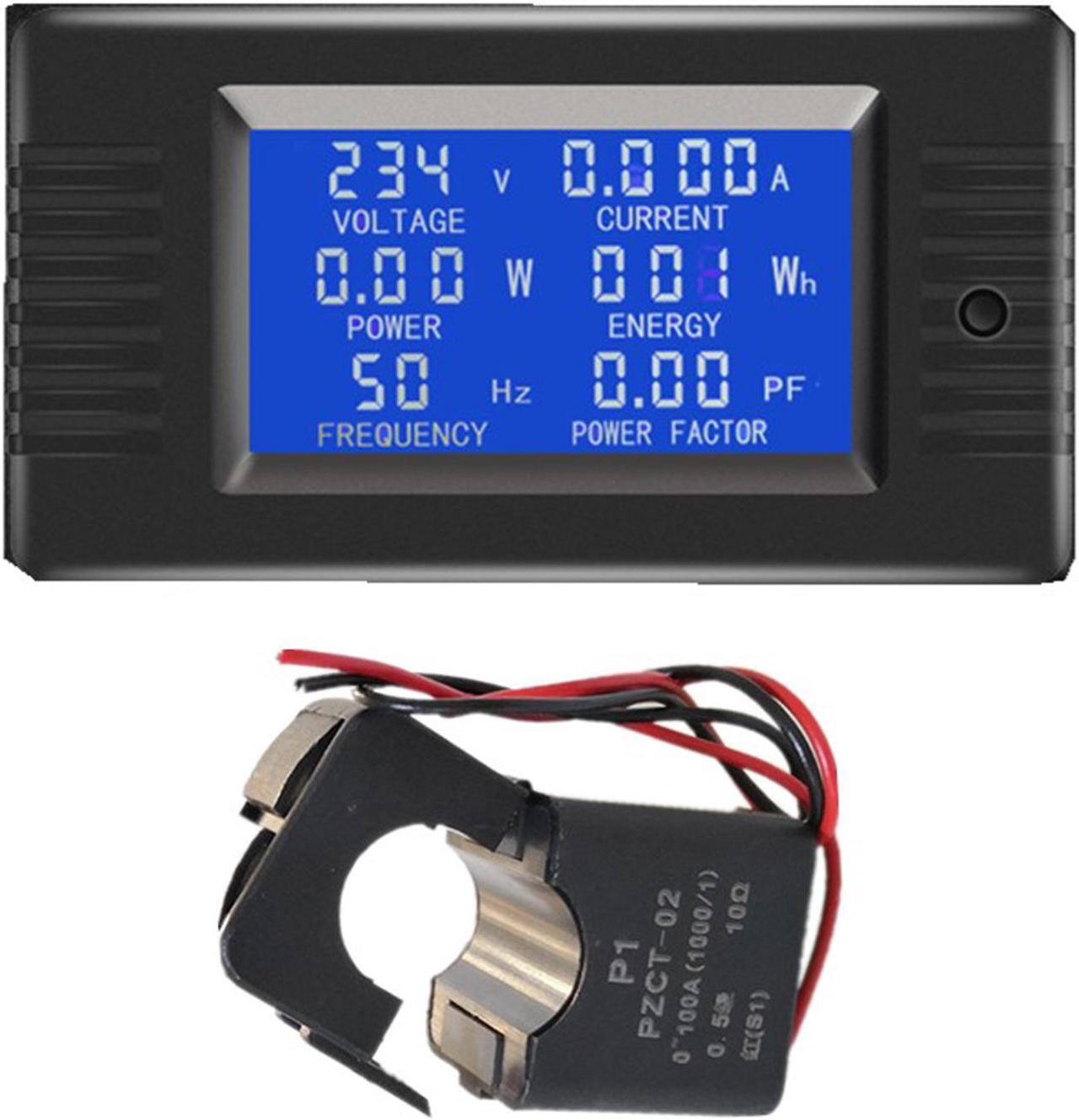

Package:

1x AC Digital Meter
1x 100A Split Core Current Transformer
