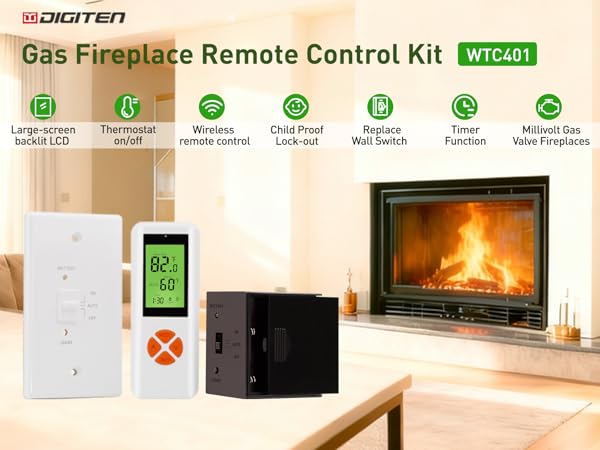

DIGITEN Millivolt valve Gas fireplace remote control Kit WTC401
A thermostat designed for millivolt valve gas fireplaces
WIRING MILLIVOLT VALVE
Connect the two 18-gauge stranded or solid wires of the Remote receiver box to the Milivolt gas valveat the TH & TH/TP teminals on the temminal block.
ELECTRONIC SPARK MODULE
Connect a 24VAC transformer in series to the TR (transformer) terminal on the ELECTRONIC MODULE
Replace On/Off Switch
Replacing an existing wall / manual On/Off switch or room thermostat with remote receiver.
Millivolt valve gas fireplace
Check compatibility by identifying your valve type. Our remotes work with Millivolt systems—look for the TH & TH/TP terminals on the valve.
Receiver Introduction
- ON: Slide the switch to the ON ; the system will remain ON all the time. The remote transmitter is disabled.
- AUTO: Slide the switch to the AUTO. The system will only operate by receiving commands from the remote transmitter.
- OFF: Slide the switch to the OFF the system will remain OFF all the time
Remote control
The remote control is equipped with a built-in temperature sensing chip to control the millivolt valve gas fireplace, keeping the ambient temperature within the range you need

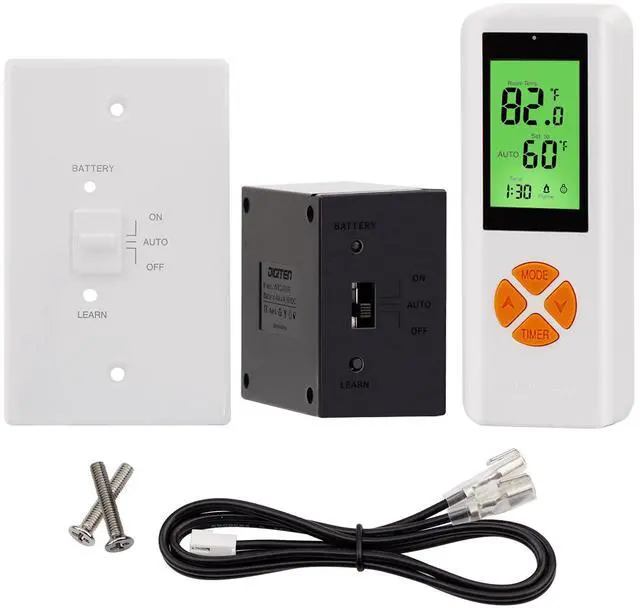

What's in the packaging box
- Remote Transmitter
- Receiver Box
- Wall Mount Cover Plate (white)
- Plug-in Wiring Assembly (22 inch) ,Screws, Installation & Instruction
Battery is needed
Warm reminder: For this gas fireplace remote control, you need to prepare 2 AAA batteries and 4 AA batteries
For safety
If no one is at home for a long time, placing the slide switch in the OFF position also functions as a safety "LOCK-OUT" by both turning the system off and disabling the remote receiver.
FEATURES/SPECIFICATIONS
DIGITEN
Enhance your quality of life
We are a company that integrates R&D, manufacturing, and sales, and has established our own brand DIGITEN.
Since 2015, we have been dedicated to enhancing the convenience and comfort of life through innovation in smart home technology, particularly in the area of temperature and humidity monitoring. Each year, we develop numerous products tailored to meet the diverse needs of customers worldwide.
Popular Product
Popular Product
Popular Product
Popular Product
Why choose your brand?
Our product quality is assured and our service is personalized.
What are the advantages of your product?
After a lot of testing and improvement, our products are easy to use and operate, and the product life is long.
What if the product has quality problems?
We provides one year term for any problems,please don't worry.
DIGITEN Millivolt valve Gas fireplace remote control Kit WTC401
Introduction to the Features of the Remote Control
A thermostat designed for millivolt valve gas fireplaces

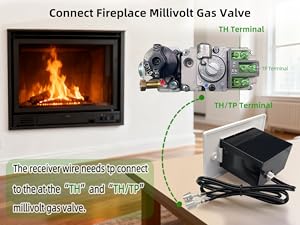

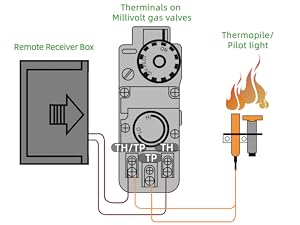

WIRING MILLIVOLT VALVE
Connect the two 18-gauge stranded or solid wires of the Remote receiver box to the Milivolt gas valveat the TH & TH/TP teminals on the temminal block.

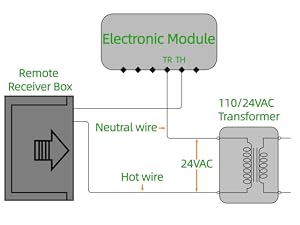

ELECTRONIC SPARK MODULE
Connect a 24VAC transformer in series to the TR (transformer) terminal on the ELECTRONIC MODULE

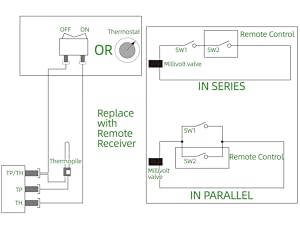

Replace On/Off Switch
Replacing an existing wall / manual On/Off switch or room thermostat with remote receiver.
Millivolt valve gas fireplace
Check compatibility by identifying your valve type. Our remotes work with Millivolt systems—look for the TH & TH/TP terminals on the valve.

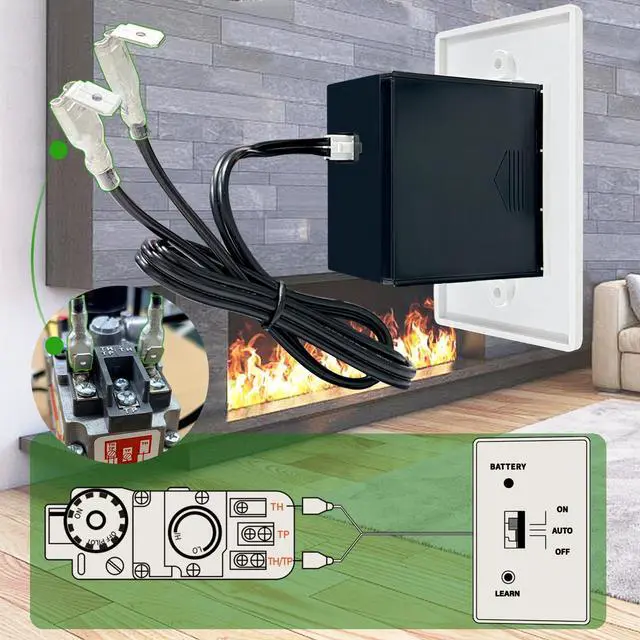

Receiver Introduction
- ON: Slide the switch to the ON ; the system will remain ON all the time. The remote transmitter is disabled.
- AUTO: Slide the switch to the AUTO. The system will only operate by receiving commands from the remote transmitter.
- OFF: Slide the switch to the OFF the system will remain OFF all the time

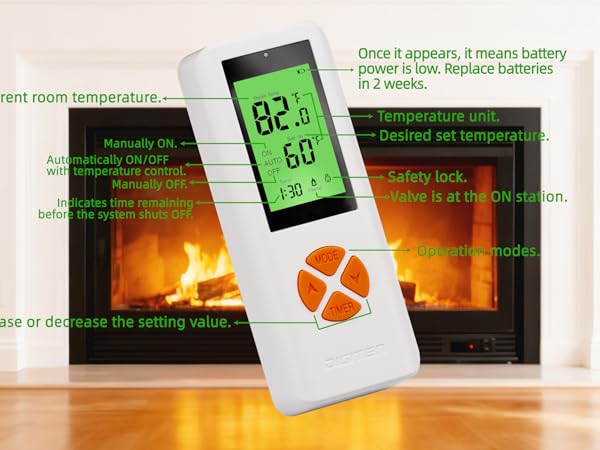

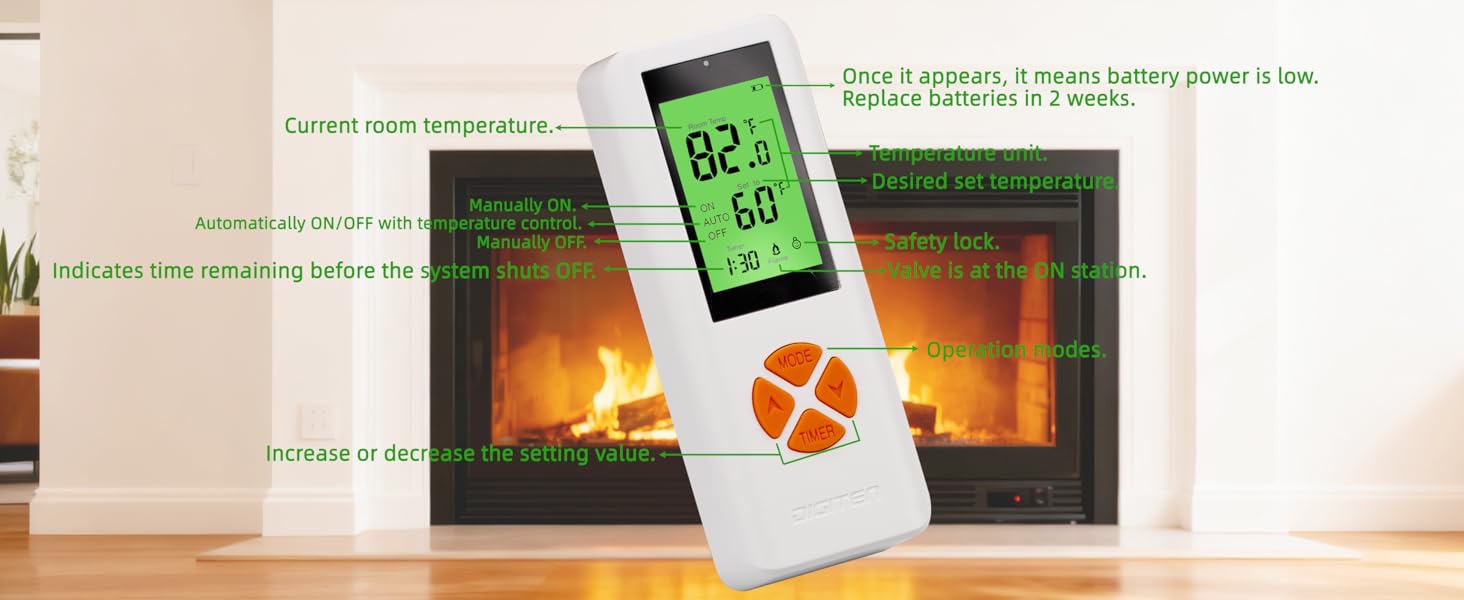

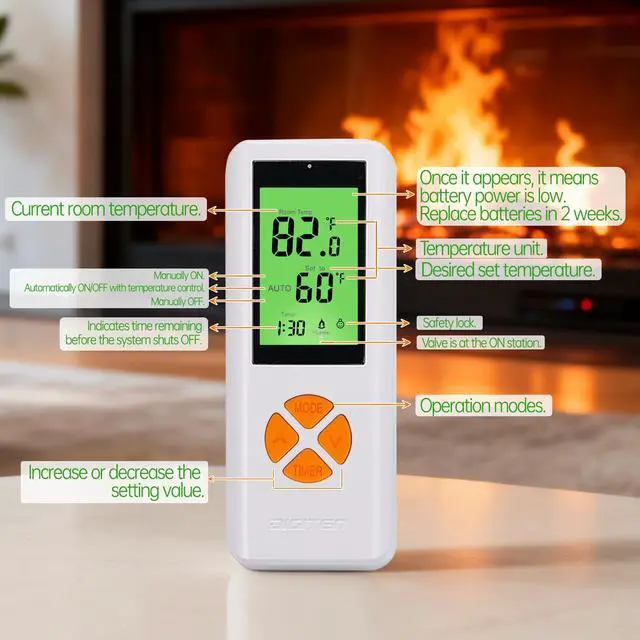

Remote control
The remote control is equipped with a built-in temperature sensing chip to control the millivolt valve gas fireplace, keeping the ambient temperature within the range you need

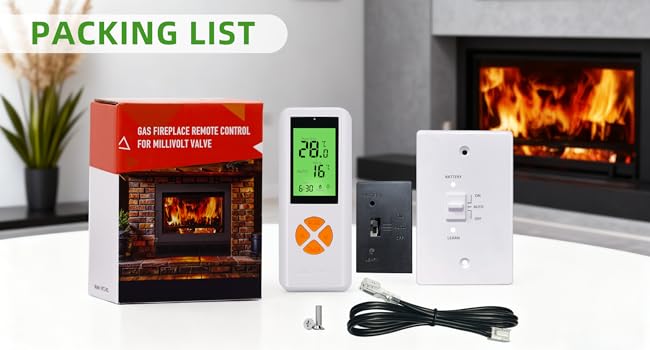

What's in the packaging box
- Remote Transmitter
- Receiver Box
- Wall Mount Cover Plate (white)
- Plug-in Wiring Assembly (22 inch) ,Screws, Installation & Instruction

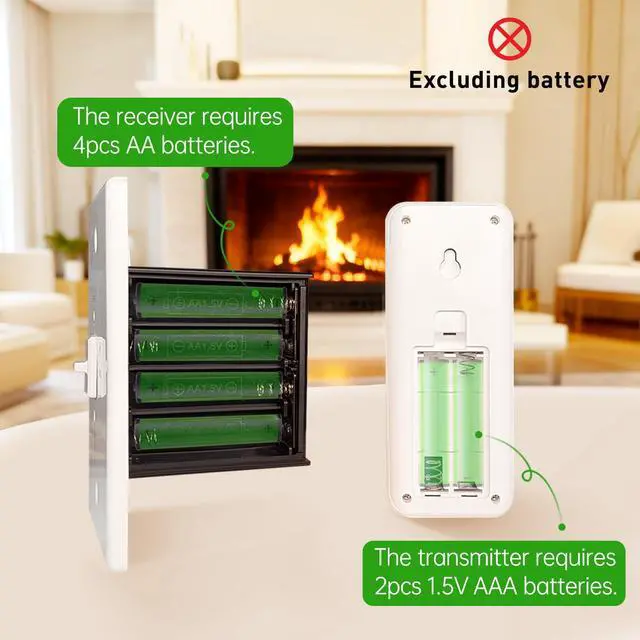

Battery is needed
Warm reminder: For this gas fireplace remote control, you need to prepare 2 AAA batteries and 4 AA batteries
For safety
If no one is at home for a long time, placing the slide switch in the OFF position also functions as a safety "LOCK-OUT" by both turning the system off and disabling the remote receiver.
FEATURES/SPECIFICATIONS
| Transmission distance | 65ft I 20m(open space) |
|---|---|
| Measuring temperature range | -9.0°C~S0°C, 15°F~122.0°F |
| Setting temperature range | 7°C ~37°C, 45° F~99.0° F |
| Sensor and accuracy | NTC Sensor in Transmitter,?0.1°C/° F |
| Receiver cable length | 56.5cm/22.24in |
| Remote control frequency | 30 Seconds |
