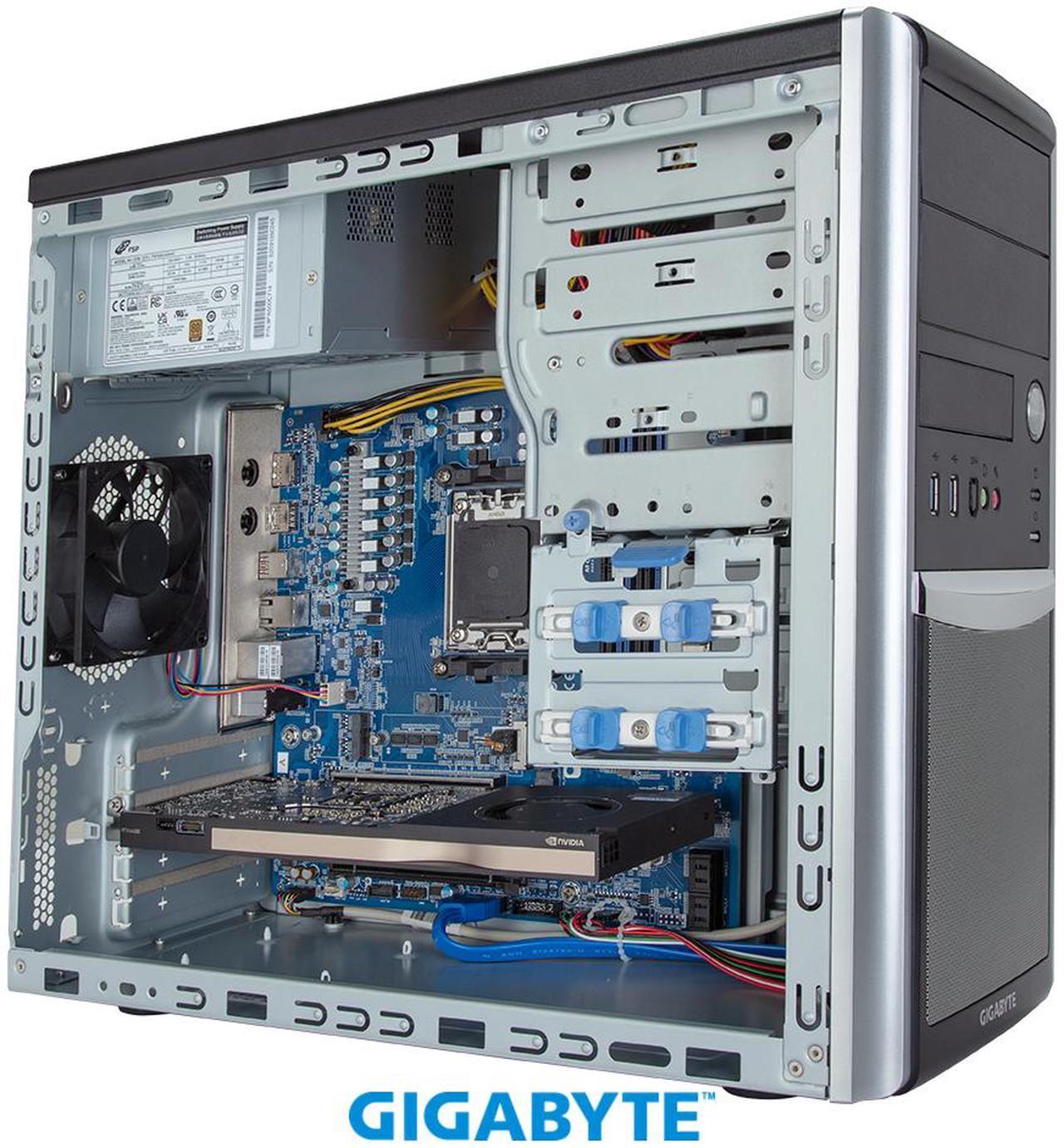

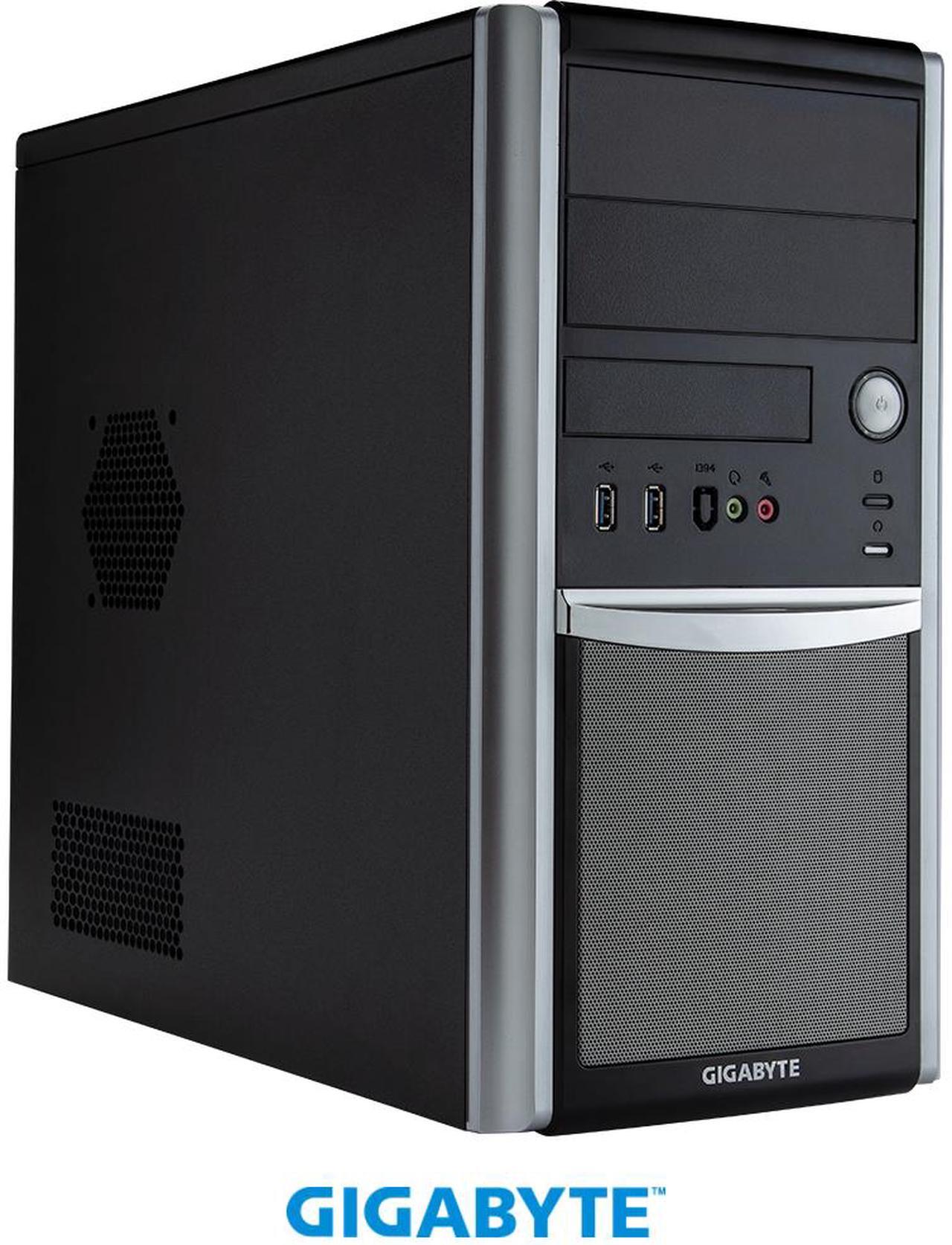

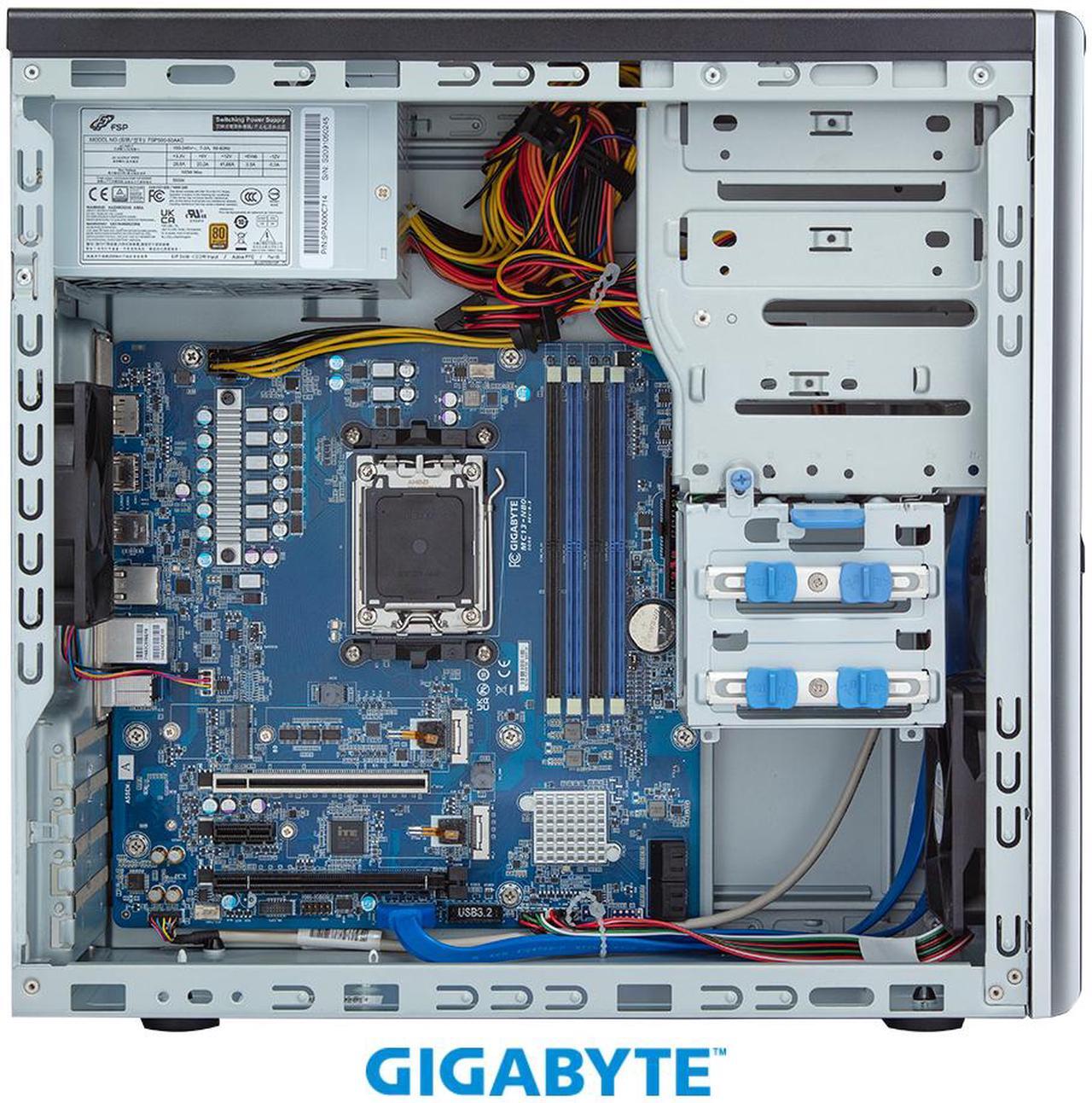

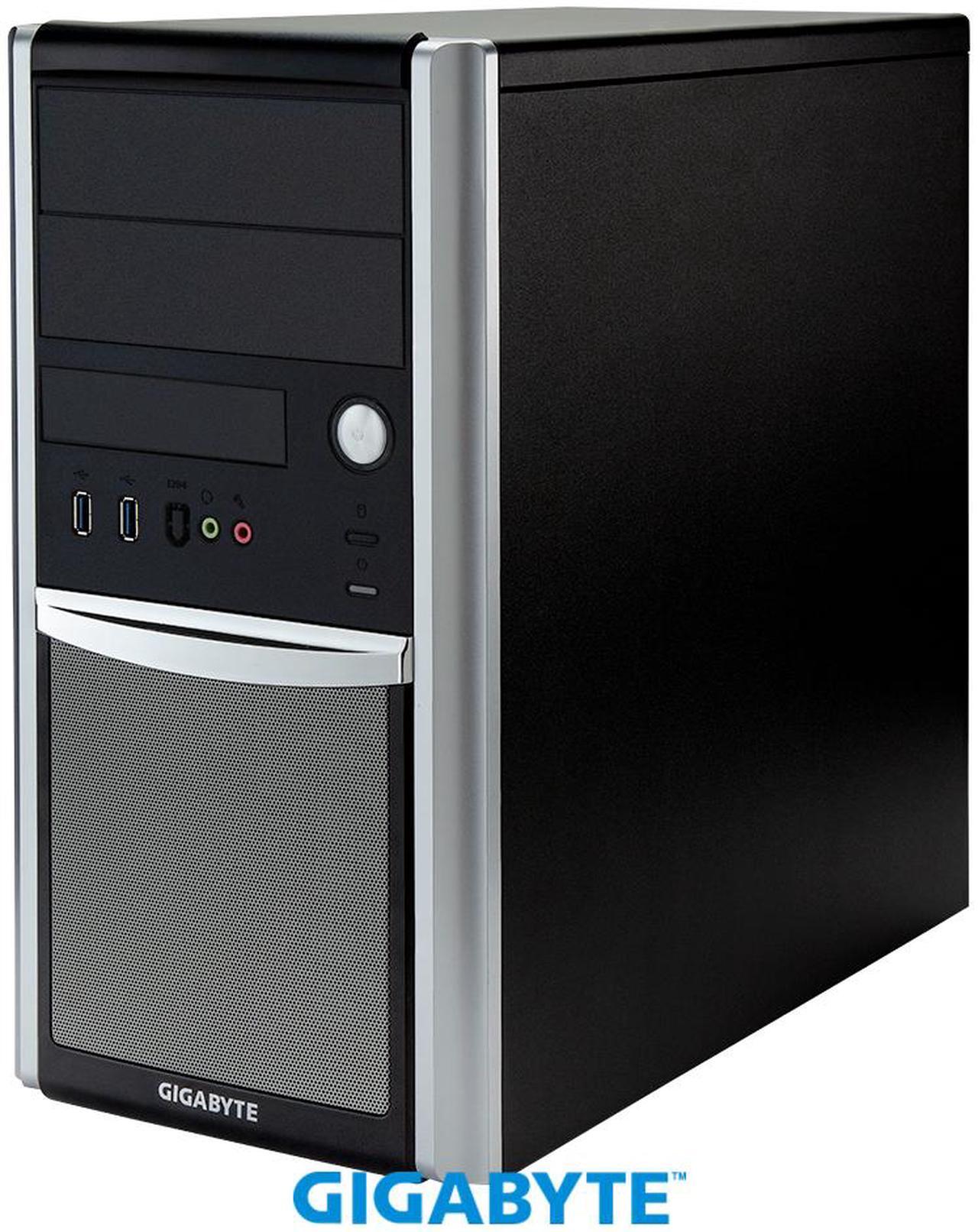

GIGABYTE W332-Z00 Entry Workstation - AMD Ryzen™ 7000 Series

Be the first to review this product...
  • Single AMD Ryzen™ 7000 Series Processors
  • Dual Channel DDR5 ECC / Non-ECC UDIMM, 4 DIMMs
  • Realtek® DASH Remote Management
  • Realtek® 2.5Gb/s LAN and 1Gb/s DASH LAN
  • 2 x M.2 slots with PCIe Gen5 x4 interface
  • 2 x 3.5"/2.5" SATA bays
  • 1 x PCIe Gen5 x16 slot
  • 2 x PCIe Gen4 x4 and x1 slots
  • Rear HDMI and DP support
  • Single 500W 80 PLUS Bronze power supply
View User Manual Details
+
+
Specs
Reviews

Learn more about the GIGABYTE W332-Z00

General
Brand GIGABYTE
Model W332-Z00
Form Factor Mini Tower
Workload Workstation
CPU Supported
CPU Type AMD Ryzen 7000 Series
CPU Socket AM5
Installed CPU No CPU Installed
Max Processors 1
CPU Features Recommend to install CPU TDP under 105W
Chipset
North Bridge AMD B650E
Memory Supported
Memory Slots 4 x 288Pin
Installed Memory Size No Memory Installed
Max Memory Supported 128GB
Memory Type Supported Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
Channel Supported Dual Channel
ECC Supported Yes
Storage Supported
Installed HDD No Storage Installed
M.2 2 x M.2 slots:
- M-key
- PCIe Gen5 x4, from CPU
- Supports 2280 cards

1 x M.2 slot for Wi-Fi:
- E-key, from FCH
- Supports 2230 cards
Expansion Slots
PCI Express 1 x PCIe x16 (Gen5 x16) slot, from CPU
1 x PCIe x16 (Gen4 x4) slot, from FCH
1 x PCIe x1 (Gen4 x1) slot, from FCH
Communications
First LAN Realtek 2.5Gb/s LAN (RTL8125)
Second LAN Realtek 1Gb/s DASH LAN (RTL8111EP)
Max. LAN Speed 2.5 Gigabit
Expansion Bays
3.5" Bays 2 x 3.5"/2.5" fixed SATA bays

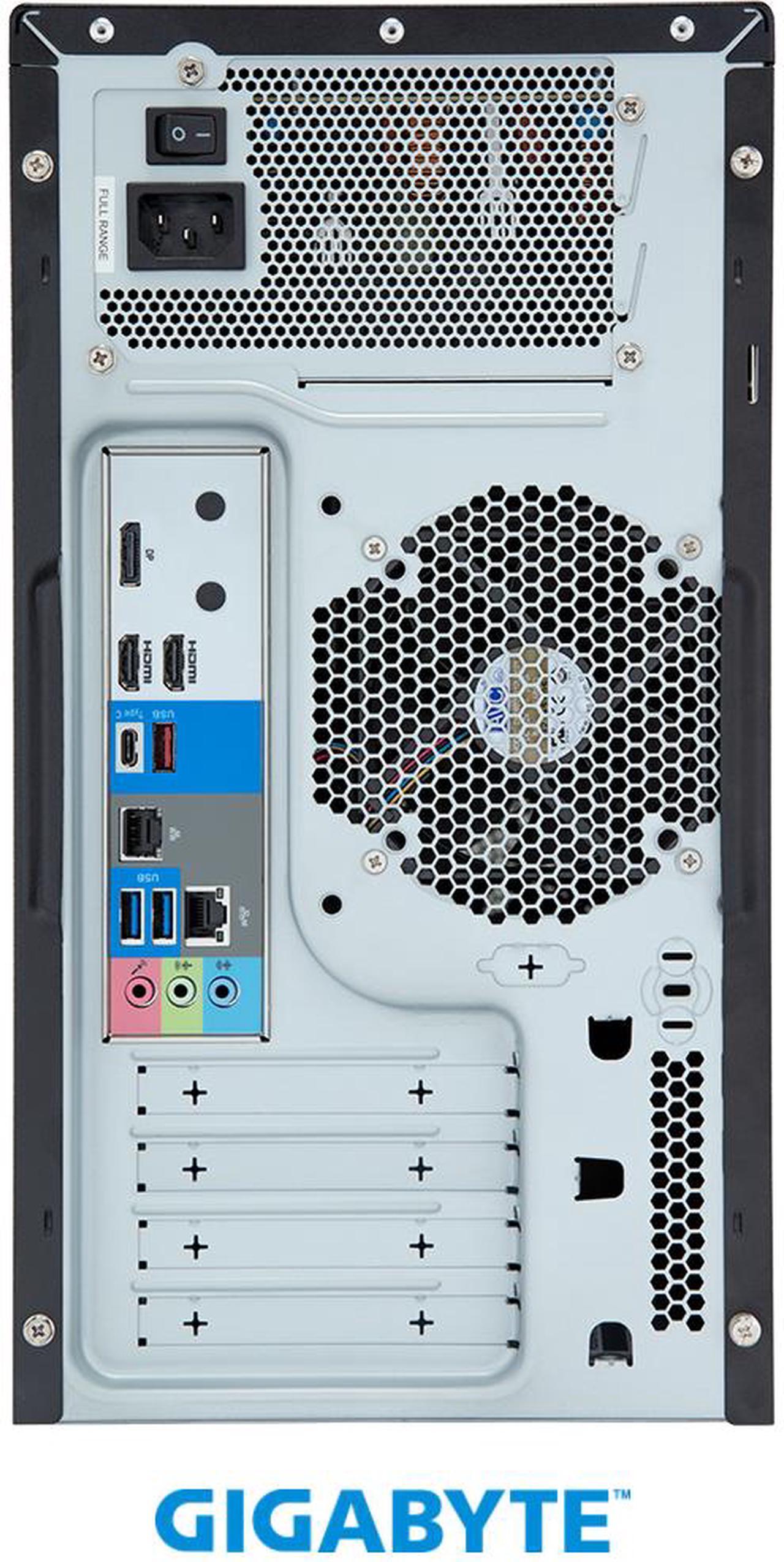

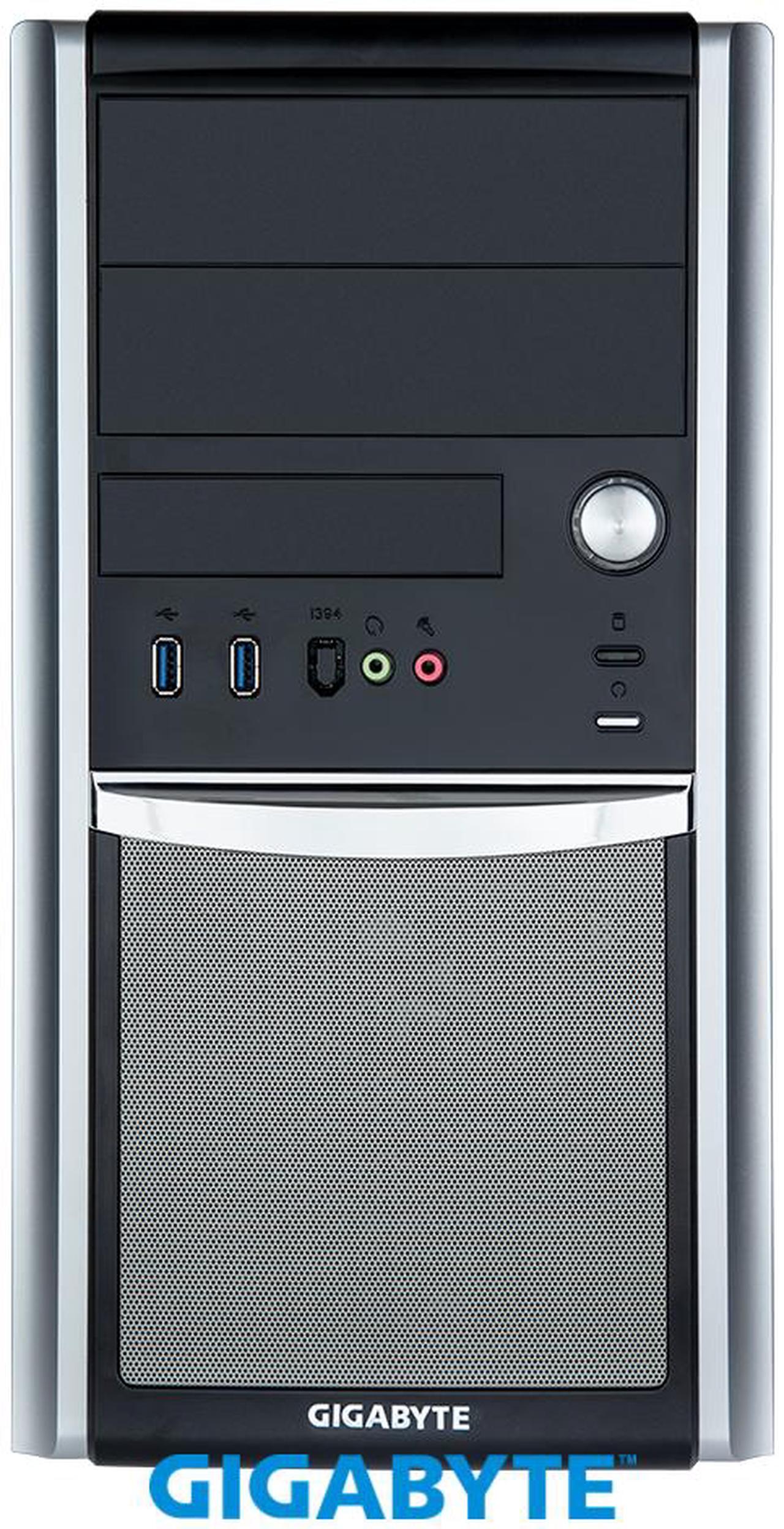

Panel Ports
Buttons 1 x Power Button
1 x Reset Button
LEDs 1 x Storage activity LED
Front USB 2 x USB 3.2 Gen1 ports
Front Audio Ports 1 x Line out port
1 x Mic in port
Audio
DisplayPort 1 x DisplayPort
Panel Ports
Rear USB 3 x USB 3.2 Gen 2 type A
1 x USB 3.2 Gen 2 type C
RJ45 2
Rear Audio Ports 3 x Audio Jacks (Line in / Line out / Mic in)
Other Ports Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s ports
1 x CPU fan header
3 x System fan headers
1 x Serial header (COM)
1 x TPM header
1 x Front panel header
1 x Front Audio header
1 x Front USB3.2 Gen1 header
Power Supply
Max. Power Single 500W 80 PLUS Bronze power supply
Cooling
Fans 2 x 92x92x25mm (4,500rpm)
Environment
Temperature Operating temperature: 0°C to 30°C
Non-operating temperature: -40°C to 60°C
Humidity Operating humidity: 8%-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions & Weight
Dimensions 14.57" x 7.8" x 14.76"
Packaging
Package Contents 1 x W332-Z00
1 x Quick Start Guide
Additional Information
Date First Available February 10, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
