$2,352.00
Meet Your Seller

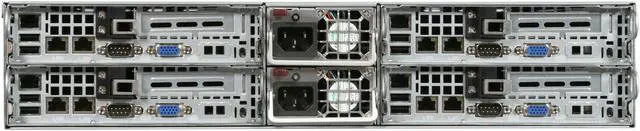

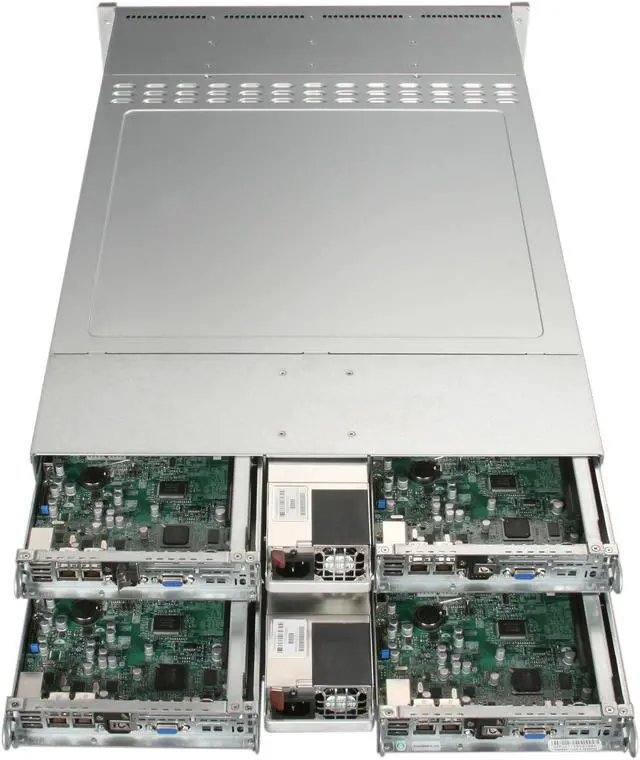

SUPERMICRO SYS-5026Ti-BTRF 2U Rackmount LGA 1156 Intel Xeon X3400/L3400 series, Core i3 Pentium G6950, Celeron G1101 Intel 3420 3 x 3.5" SATA Hot-Swap Bays Server Barebone (Four hot-pluggable systems)
- LGA 1156
- Intel Xeon X3400/L3400 series, Core i3 Pentium G6950 & Celeron G1101 Processors
- 6 x 240Pin Memory Slots
- 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-5026Ti-BTRF
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-5026Ti-BTRF |
| Form Factor | 2U Rackmount |
| CPU Type | Intel Xeon X3400/L3400 series, Core i3 Pentium G6950 & Celeron G1101 Processors |
|---|---|
| CPU Socket | LGA 1156 |
| North Bridge | Intel 3420 |
|---|
| Memory Slots | 6 x 240Pin |
|---|---|
| Max Memory Supported | Supports up to 32 GB DDR3 ECC Registered memory (RDIMM) in 6 DIMM sockets Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) in 4 DIMM sockets |
| Memory Type Supported | DDR3 1333/1066/800 |
| ECC Supported | Yes |
| Registered | Yes |
| Serial ATA | 6 x SATA 300 |
|---|---|
| SATA RAID | RAID 0, 1, 5 support (Windows) RAID 0, 1 support (Linux) |
| GPU/VPU | Matrox G200eW |
|---|---|
| Video Memory | 16MB DDR2 |
| PCI Express | 1 (x16) PCI-E 2.0 (Low Profile) |
|---|
| First LAN | Intel 82574L |
|---|---|
| Second LAN | Intel 82574L |
| Max. LAN Speed | Dual 1 Gigabit |
| Hot-Swap Bays | 3 x 3.5" SATA |
|---|
| COM | 1 |
|---|---|
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2 |
| Max. Power | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C |
|---|
| Features | Color: Black Integrated IPMI 2.0 with KVM and Dedicated LAN. Super I/O: Nuvoton W83627DHG UBE 2U Hard drive Backplane. Buttons: Power On/Off button UID button LEDs: Power LED (on power button) Network activity LED System Overheat/fan fail/power fail/ LED UID LED (on UID button) System Cooling: 4 x Cooling Fans RoHS Compliant |
|---|
| Dimensions | 28.5" x 17.2" x 3.5" |
|---|---|
| Weight | 85.0 lbs. (Gross) |
| First Listed on Newegg | August 21, 2021 |
|---|
