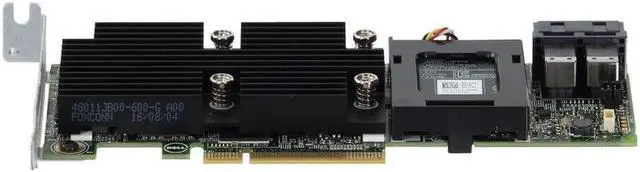

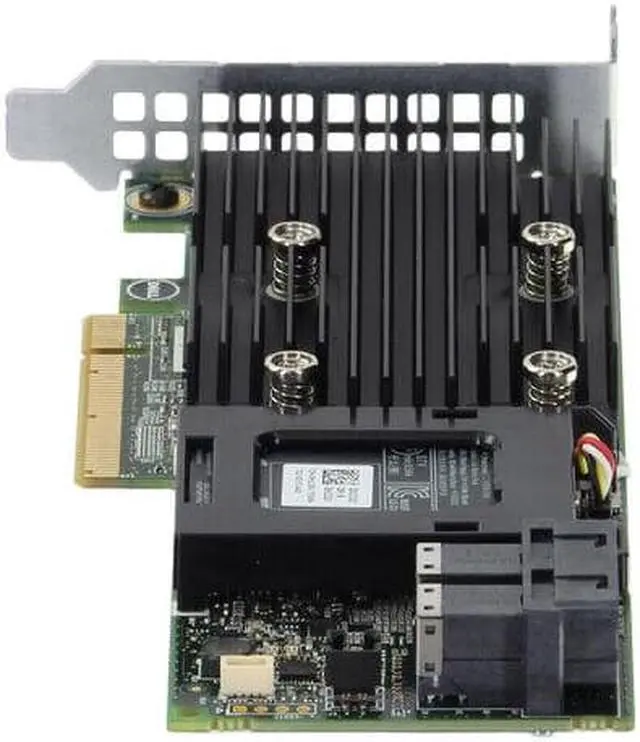

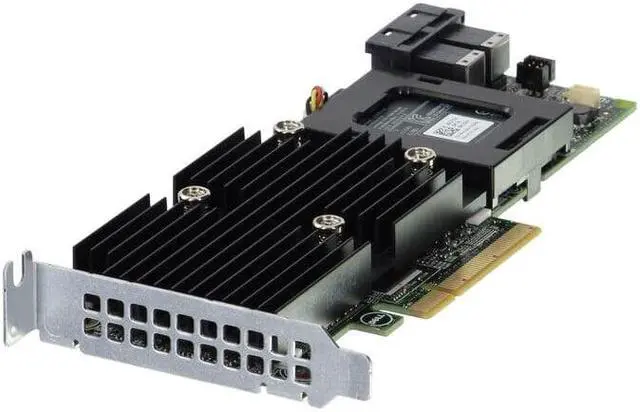

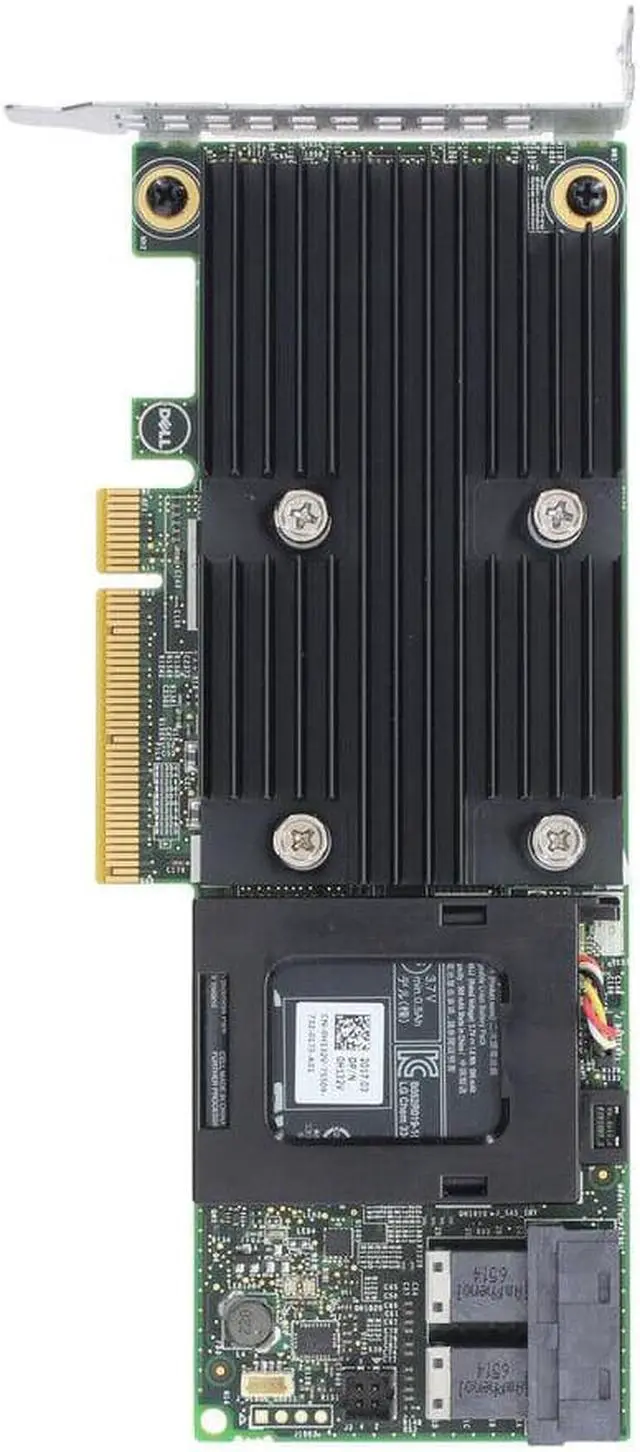

Dell H730 PERC 12Gb PCI-e 3.0 X8 SAS RAID Controller Card 5P6JK
REFURBISHED Product Type
- Brand: Dell
- Part Number: 5P6JK
- MPN: 5P6JK
- Model: PERC H730
- Type: SAS RAID Controller Card
- Compatible Brand: For Dell
- Compatible Model: For Dell PowerEdge Servers (various compatible models including R430, R530, R630, R730, T430, T630, and others)
- Interface: PCI-Express 3.0 x8
- RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60
- Data Transfer Rate: Up to 12Gb/s SAS
- Ports: 8 internal SAS/SATA ports
- Cache Memory: 1GB NV Cache
- Controller: LSI SAS3108 ROC
- Supported Drives: SAS, SATA HDDs & SSDs
- Form Factor: Low Profile with full-height bracket option
- Power Consumption: ~12W typical
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Dell H730 PERC 12Gb PCI-e 3.0 x8 SAS RAID Controller Card delivers high-speed, enterprise-class storage performance for Dell PowerEdge servers. Powered by the LSI SAS3108 RAID-on-Chip processor and equipped with 1GB NV Cache, the PERC H730 supports advanced RAID levels including 0, 1, 5, 6, 10, 50, and 60. Engineered to handle SAS and SATA HDDs or SSDs, it provides reliable data throughput up to 12Gb/s per port. Ideal for database applications, virtualization, and mission-critical storage systems, the H730 ensures optimized I/O performance and data protection in demanding IT environments.
Supports up to 8 internal SAS/SATA drives for scalable storage
12Gb/s SAS interface for high-speed data transfer
Advanced RAID levels (0, 1, 5, 6, 10, 50, 60) for data redundancy and performance optimization
Integrated 1GB NV Cache for improved write performance and data integrity
PCI-e 3.0 x8 interface for faster communication with server hardware
Reliable LSI SAS3108 controller chip for consistent enterprise performance
Low profile design with full-height bracket option for versatile installation
