Out of stock

$34,999^.99

Price alert

Sold by Newegg

Shipped by Newegg

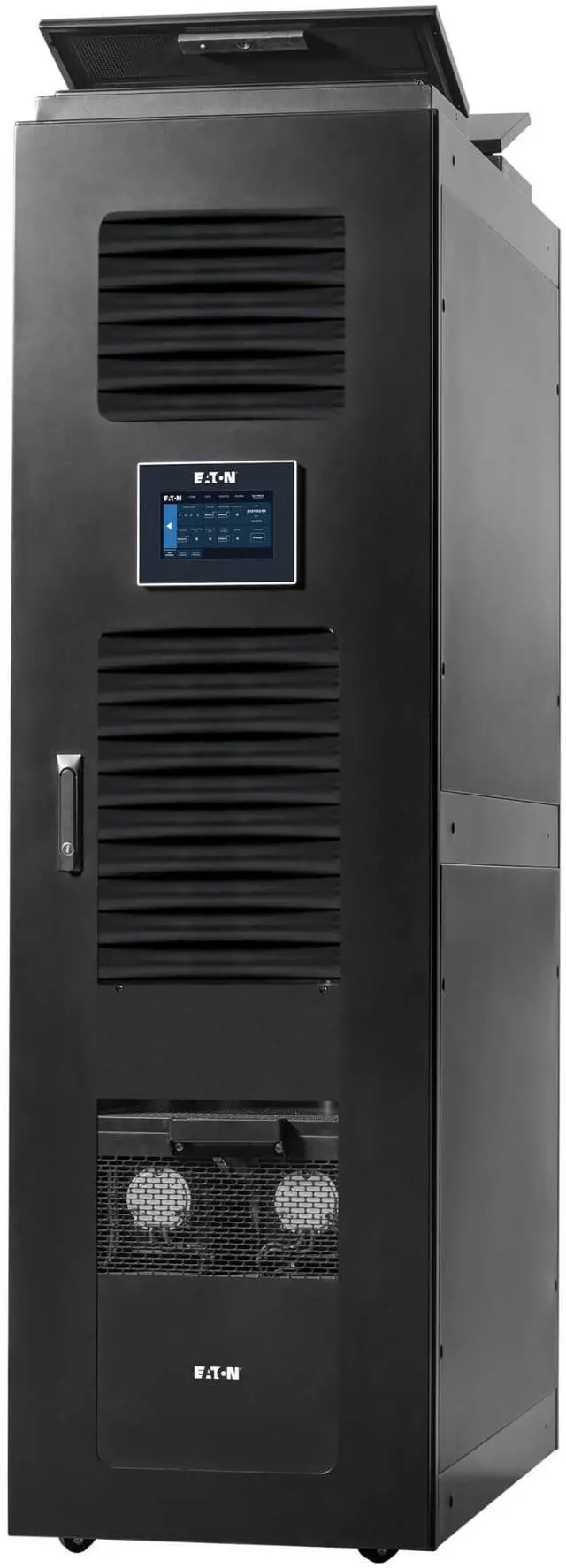

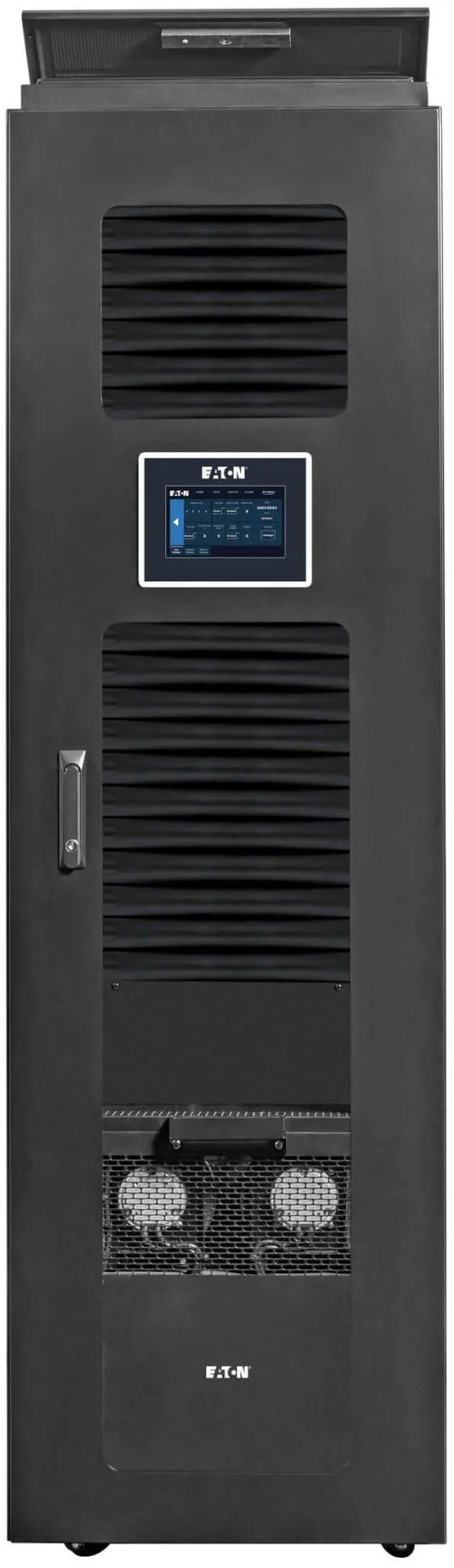

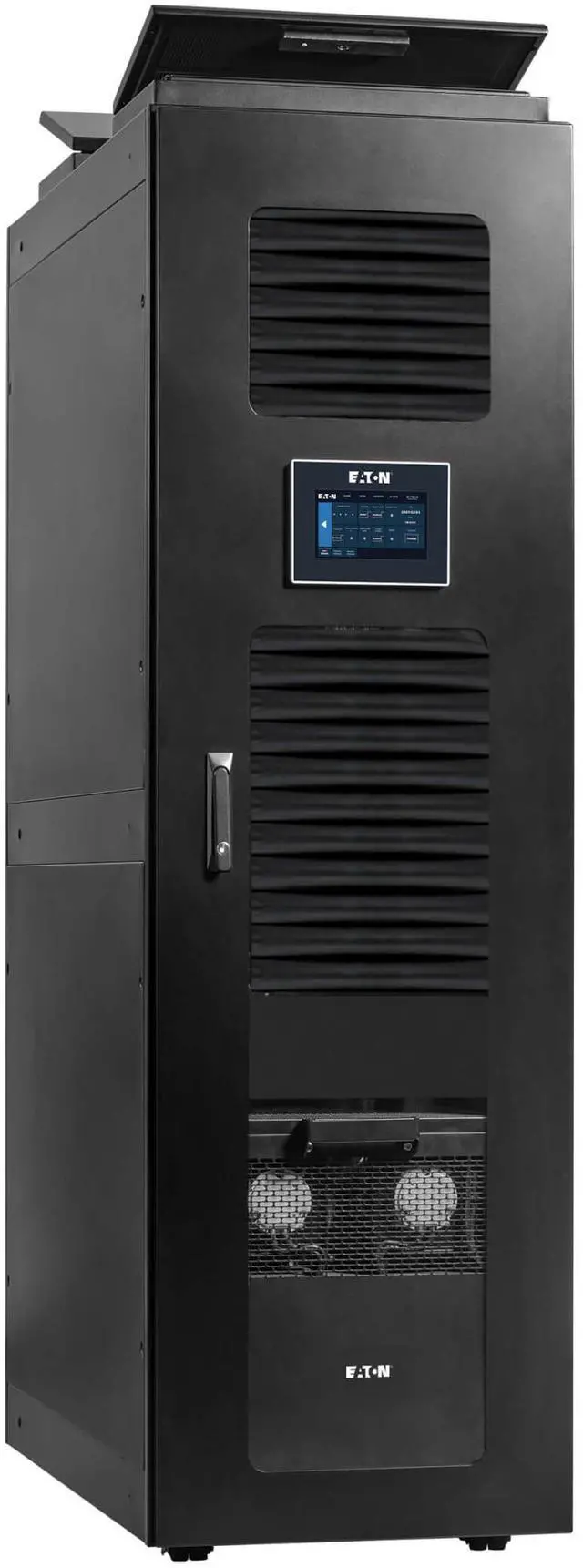

Tripp Lite by Eaton SRCOOL5KWRM42U SmartRack Self-Cooling 42U Server Rack Enclosure with Single-Phase 5.5 kW (18,766 BTU) Cooling Unit, 208V, 60 Hz

5.5kW (18.7 kBTU/hr) self-cooling rack ideal for server rooms and edge computing installations
One-box solution: no HVAC professional required to connect separate condenser and refrigerant tubing

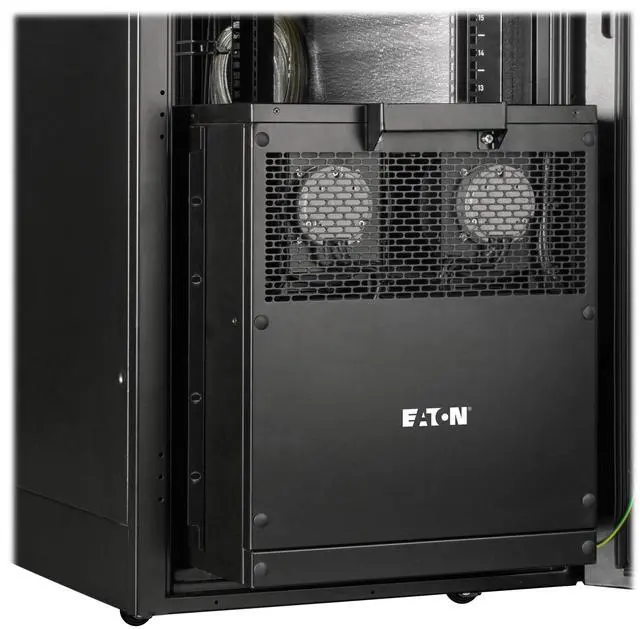

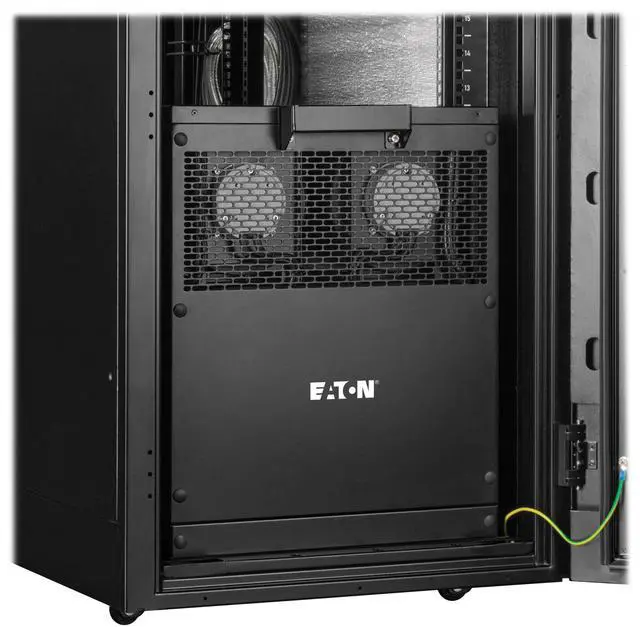

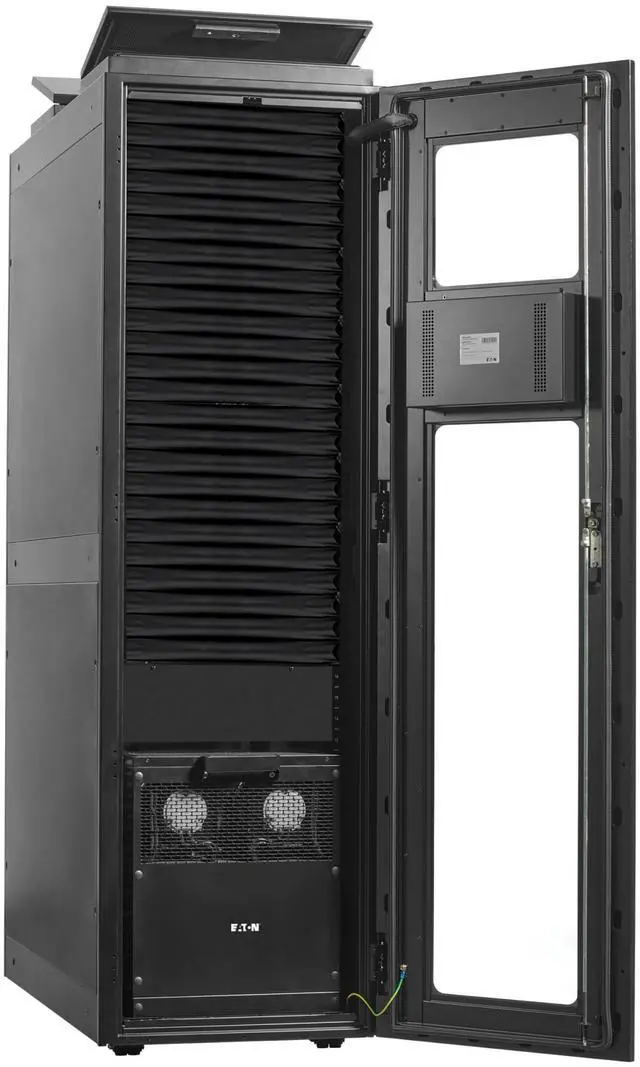

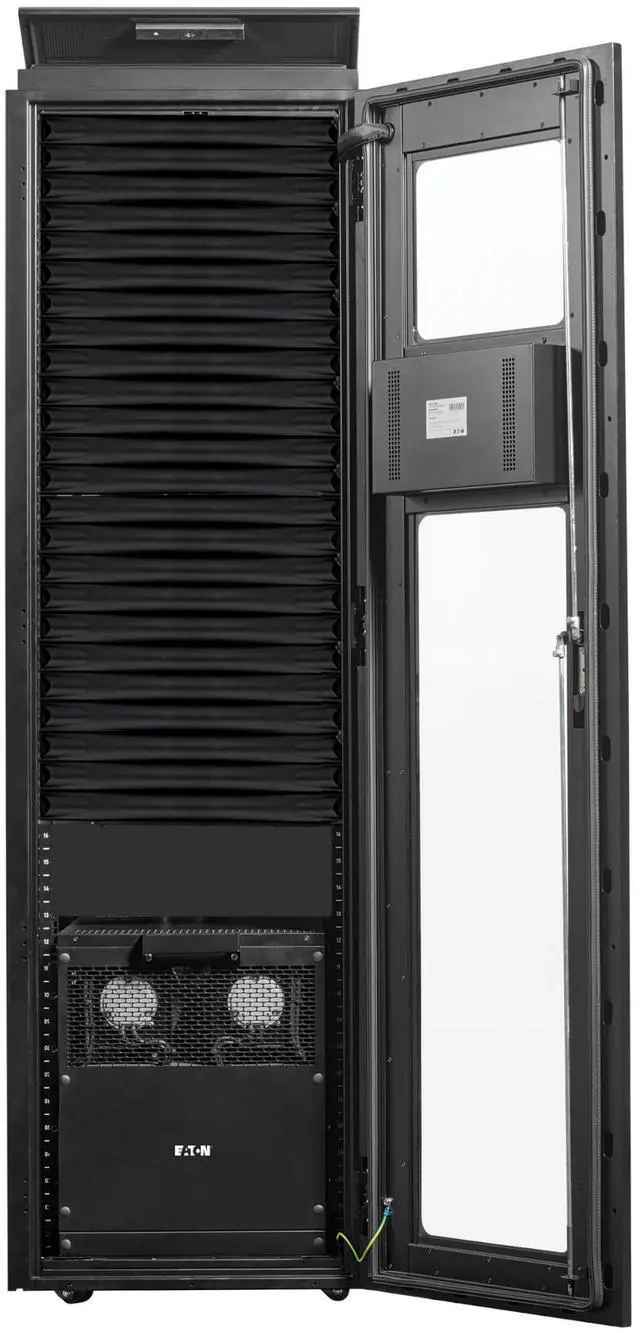

Rack-mount cooling unit pre-installed at the bottom of a custom insulated 42U deep rack

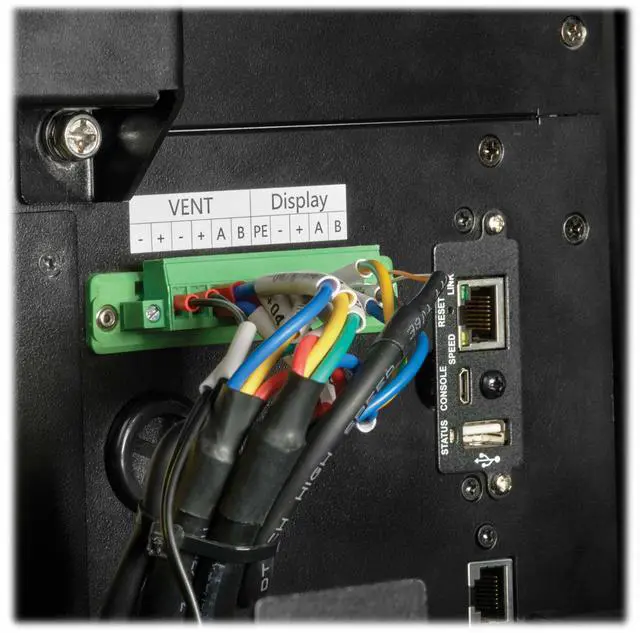

Built-in network management (SNMP) card enables full remote monitoring and control 24/7
Intuitive 7-inch color touchscreen allows easy commissioning and diagnostics
Self-contained, close-coupled cooling unit with single-phase 208V input power

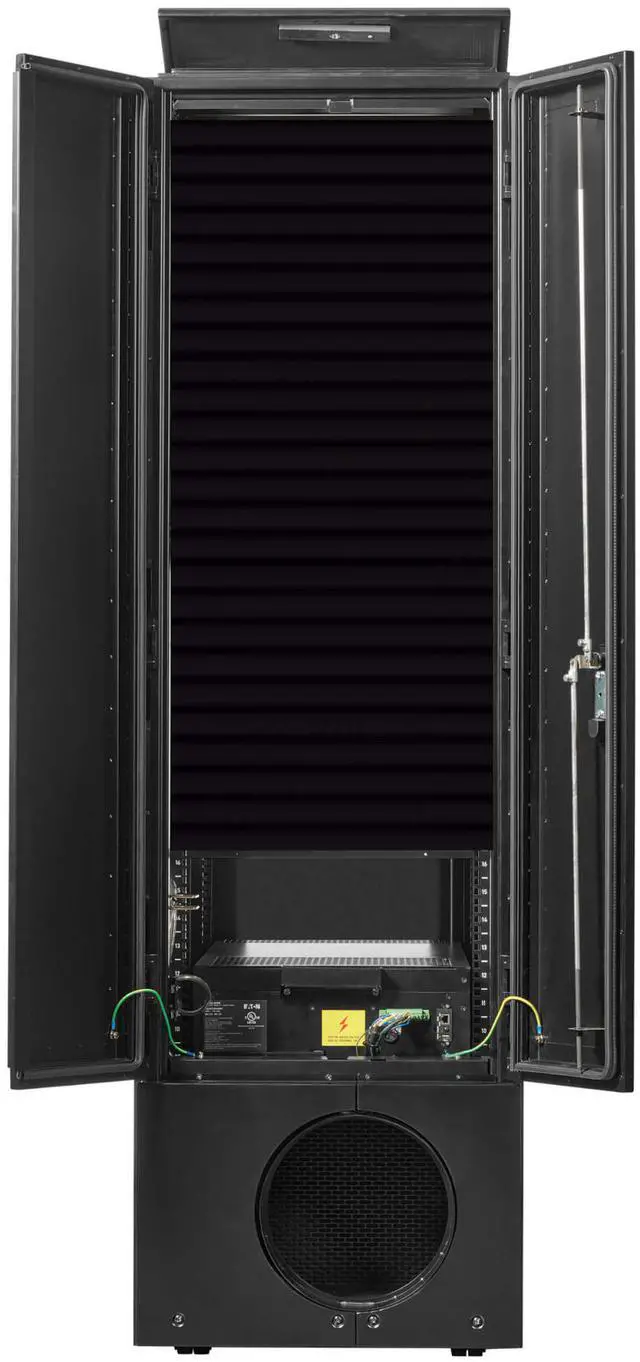

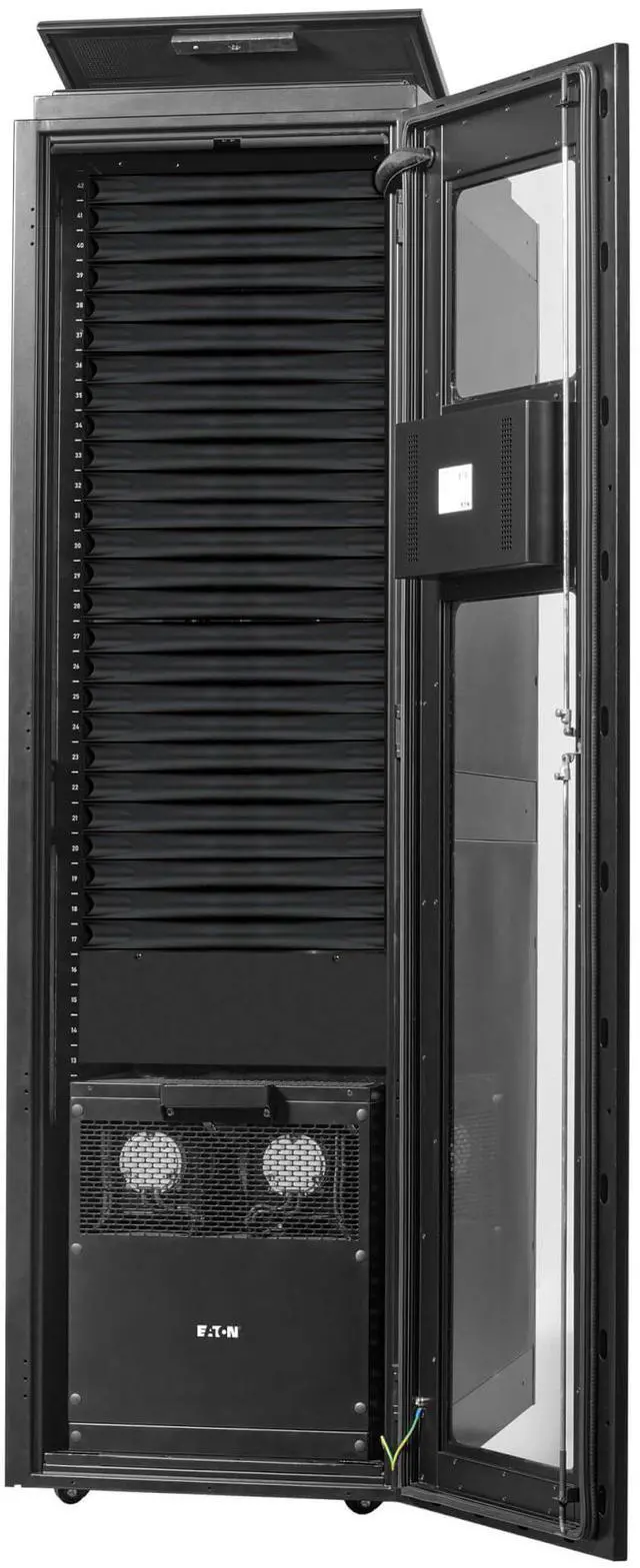

Rack includes pre-installed 1U blanks that optimize cold air flow though IT equipment only

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Eaton SRCOOL5KWRM42U

Model
Brand	Tripp Lite by Eaton
Model	SRCOOL5KWRM42U

Details
Color	Black
Specifications	INPUT Input Phase: Single-Phase Electrical Consumption (Max): 5500 Watts Nominal Input Voltage(s) Supported: 208V AC Nominal Input Voltage Description: 208V AC 60 Hz Input Connection Type: Hardwire, Optional 12ft. Cable with L6-30P included Input Plug Features: Hardwire Voltage Compatibility (VAC): 208 Input Frequency: 60 Hz Input Plug Type: NEMA L6-30P OUTPUT Frequency Compatibility: 60 Hz COOLING Airflow: 470 CFM Cooling Type: Active Cooling Type Details: Direct Expansion (DX) refrigerant based Cooling Capacity (BTUs): 18766 Cooling Capacity (kW): 5.5 Refrigerant: R410a (Environmentally friendly, Non ozone depleting) Refrigerant Amount: 1.2 KG PHYSICAL Primary Form Factor: Rackmount Color: Black Material of Construction: Steel Rack Height : 42U Rack Depth: Deep Form Factors Supported: Rackmount Maximum Device Depth (in.): 42.95 Usable Rack Space: 27U Shipping Form Factor: Factory Assembled Shipping Dimensions (hwd / in.): 90.47 x 29.13 x 52.76 Shipping Weight (lbs.): 780.45 Unit Dimensions (hwd / in.): 82.660 x 23.620 x 47.260 Unit Weight (lbs.): 552.26 Weight Capacity - Stationary (lbs.): 3000

Additional Information
First Listed on Newegg	December 10, 2025
