SUPERMICRO Mid-tower Server/Workstation Systems Intel Core Ultra (Series 2) 32GB DDR5 5600 None Hard Drive (Installed) PNY GeForce RTX 5090 32GB Triple Fan (Installed) Windows 11 Pro 64-bit - OEM
- AI-driven productivity, collaboration, and security for modern business workflows
- Designed for CAD and 3D Modeling
- Multi-Display support
- Liquid-cooled for quiet environment
- Integrated NPU
- Thunderbolt™ 4.0 Type-C® *Supports data rates of up to 10 Gbps
- 2 x PCIe 5.0 x16 FHFL + 1 PCIe 4.0 x4 slots AOCs support
- Intel Core Ultra (Series 2) Intel Core Ultra 7 265K
- PNY GeForce RTX 5090 32GB Triple Fan
- 1 MAX Processors
- 32GB DDR5 5600
- 192GB Max Memory Capacity
- None Hard Drive (Installed) 960GB SSD (Installed)
- 1x 1000W Gold Level (90%) power supply
- Windows 11 Pro 64-bit
+
+
Specs
Reviews
Learn more about the Supermicro 532AW-C-OTO-47
| Brand | SUPERMICRO |
|---|---|
| Model | 532AW-C-OTO-47 |
| Workload | Workstation |
|---|---|
| Type | Mid-tower |
| LEDs | HDD activity Power status LED |
| Security | Hardware: Silicon Root of Trust (RoT) - NIST 800-193 Compliant Features: Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery |
| CPU Type | Intel Core Ultra (Series 2) |
|---|---|
| CPU Speed | Intel Core Ultra 7 265K |
| CPU Socket | LGA 1851 |
| Number of CPU Cores | 20-Core (8P+12E) Processor |
| Cache Memory | 30MB L3 Cache |
| CPU Features | Supports up to 125W TDP CPUs (Air Cooled) |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Installed Memory Size | 32GB |
|---|---|
| Memory Type | DDR5 5600 |
| Max Memory Capacity | 192GB |
| Number of Memory Slots | 4 |
| Hard Drive (Installed) | None |
|---|---|
| HDD Interface | SATA III |
| SSD (Installed) | 960GB |
| Servers_Graphic Installed | 1 |
|---|---|
| Graphic Type | PNY GeForce RTX 5090 |
| Video Memory | 32GB GDDR7 |
| Expansion Slots | 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 4.0 x4 (in x4) FHHL slot |
|---|---|
| Expansion Bays | Total 6 bays: 2 internal fixed 3.5"/2.5" SATA drive bays 4 internal fixed 2.5" SATA drive bays M.2: 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 22110(default)/2280) 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default)) |
| Other ports | USB: 2 USB 3.2 Gen1 Type-A ports(front) 1 USB 3.2 Gen2 Type-C port(Rear) 1 USB 3.2 Gen2 Type-C port(Front) 3 USB 3.2 Gen2 Type-A ports(Rear) 1 Thunderbolt 4 Type-C port(Rear) Video: 1 HDMI 2.1 port(Rear) 1 DisplayPort 2.1 port(Rear) Audio: 7.1 HD Audio |
| Operating System | Windows 11 Pro 64-bit |
|---|
| Power Characteristics | 1x 1000W Gold Level (90%) power supply |
|---|
| Temperature | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
|---|---|
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |

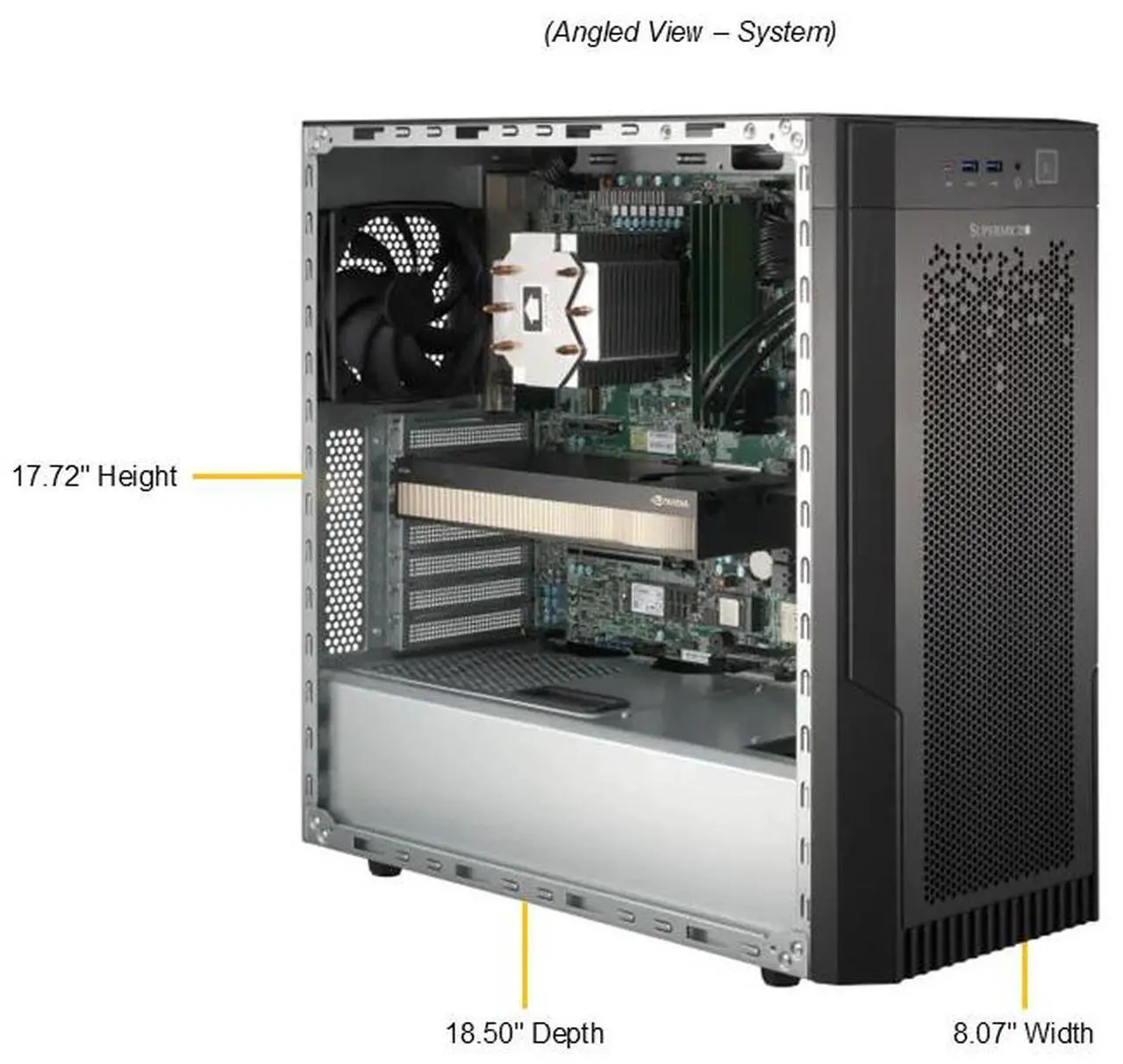

| Dimensions | 17.72" x 8.07" x 18.5" |
|---|---|
| Weight | 14.1 lbs. |
| Date First Available | April 22, 2025 |
|---|
