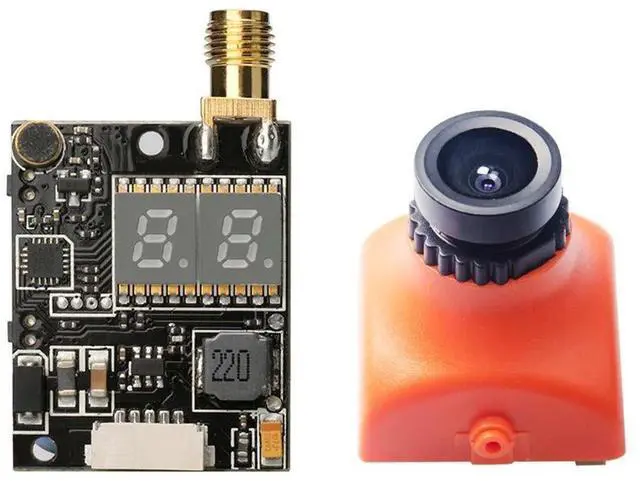

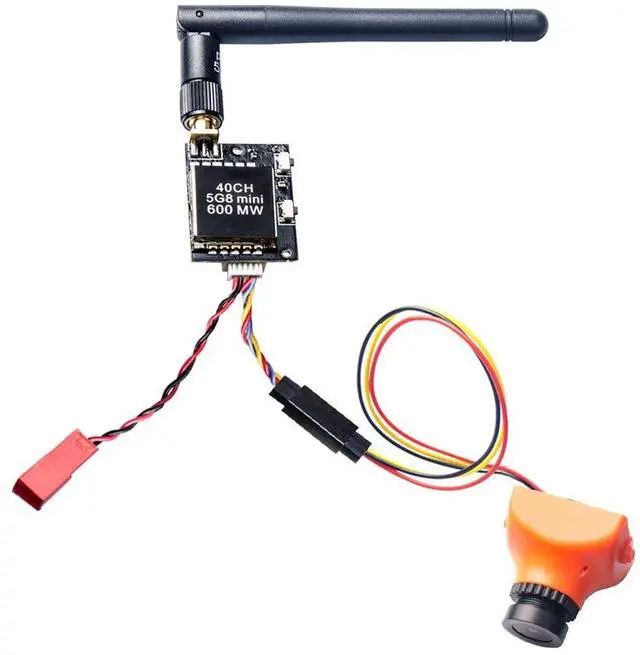

AKK KC02 600mW FPV Transmitter with 600TVL 2.8MM 120 Degree High Picture Quality Sony CCD Camera for FPV Multicopter

600TVL perfect picture quality, specially designed for outdoor flying.
Low Power Consumption and Low illumination, 1/3" SONY SUPER HAD II CCD,Nextchip 2040 DSP
VTX 5V Out for Cam, Operating Voltage: 7-20 V Output Voltage(VOUT): 5 V,use 2S-4S battery,can not 6S battery

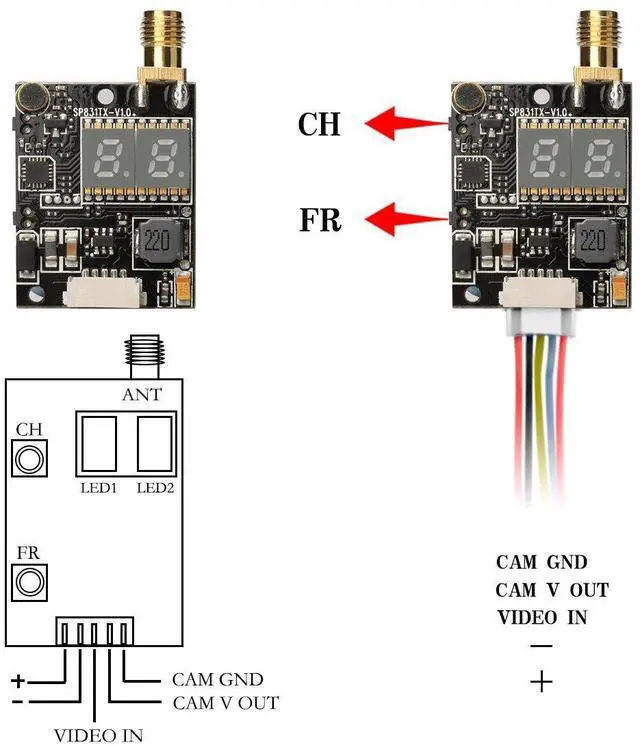

A ready to fly vtx+cam fpv system. High Picture Quality NTSC CCD Camera.Easy to use 2 buttons and 2 LED display to change channels and frequencies.
Low power consumption most affordable fpv system, suitable for all quadcopter and drones.

https://m.media-amazon.com/images/S/aplus-seller-content-images-us-east-1/ATVPDKIKX0DER/ADP3MHCS3NLR7/B01MRS9PRH/hPRbhkGRTUCW._UX970_TTW__.jpg

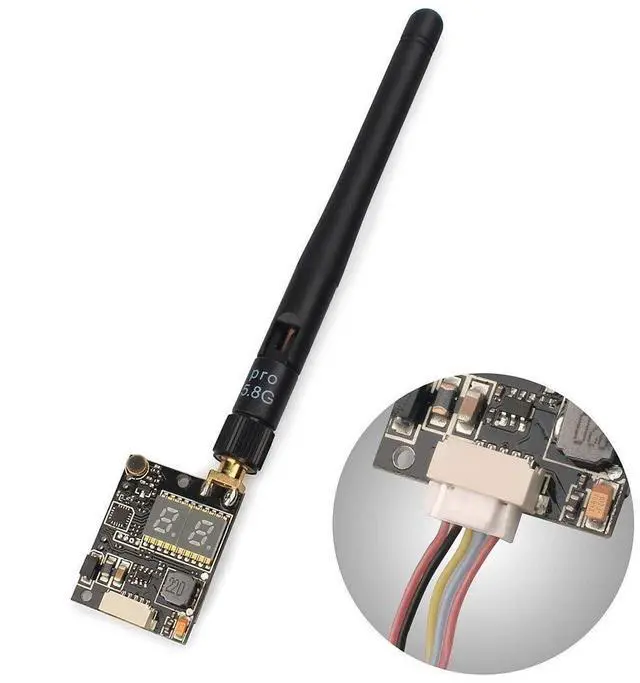

7-20V FPV Transmitter

Video Format: NTSC, Output Impedance: 50 Ohm
Antenna connector: RP-SMA connector
Supply current: 280 mA, Operating Temperature: -10 +85?
Video Band Width: 0-8.0 MHz, Audio carrier Frequency: 6.5 MHz
Video Input Level: 0.8,1.0,1.2 Vp-p, Video Input Impedance: 75 Ohm
Audio Input Level: 0.5,2.0 Vp-p, Audio Input Impedance: 10K Ohm
Operating Voltage: 7-20 V, VTX Size: 31mm*25mm*8mm

https://m.media-amazon.com/images/S/aplus-seller-content-images-us-east-1/ATVPDKIKX0DER/ADP3MHCS3NLR7/B01MRS9PRH/XpcZbLuiQ1S2._UX970_TTW__.jpg

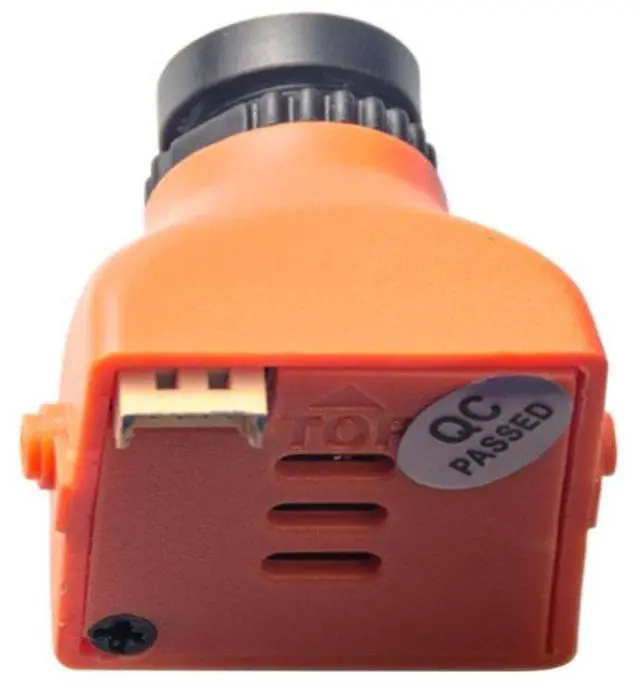

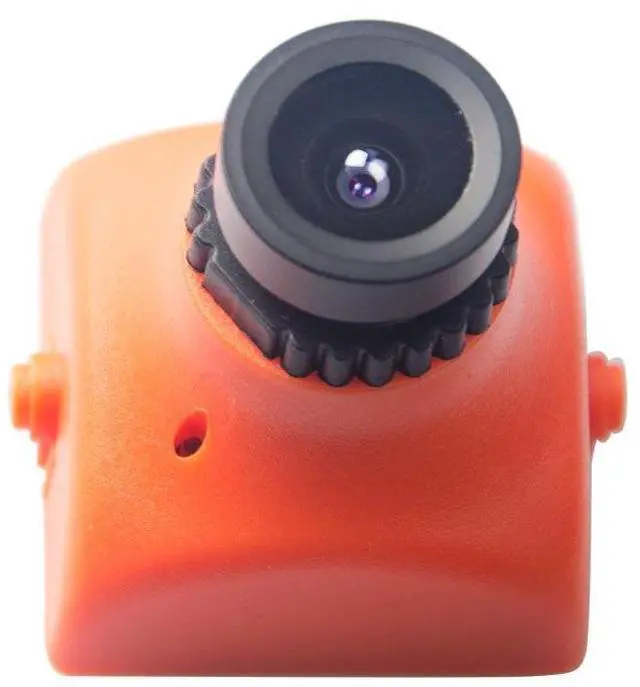

600TVL perfect picture quality camera

CCD: 1/3” Sony SUPER HAD II CCD
Pixel: NTSC: 768(H)×494(V),TV System: NTSC
Resolution: 650TVL(b/w), 600tvl(color)
Synchronization : internal synchronize
Shutter Speed: (CCD IRIS) NTSC: 1/60~1/100000 sec
Noise: > 60 (AGC OFF), Video Out: 75ohm, synchronize
Min. Illumination: 0.01Lux, Auto Gain: Off/Low/Mid/High
Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression
Private shading (PRIVACY): 1~8 private shading area
Motion Detection (MD): On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual / Auto / Auto track
Mirror: Horizontal Mirror optional
Negative: Positive / Negative optional
Color to B&W: Auto, DNR: 2DNR; WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): English menu, White Dot Repair: Support
Image Adjustment: Support, Camera Title: Support
Power Requirement: DC5V~22V, Working Humidity: 20~80%
Storage Temperature: -40 ? ~ +60 ?
Storage Humidity: 20~95%
Dimensions(mm): 25X25(W*L)
Power Consumption: 70mA

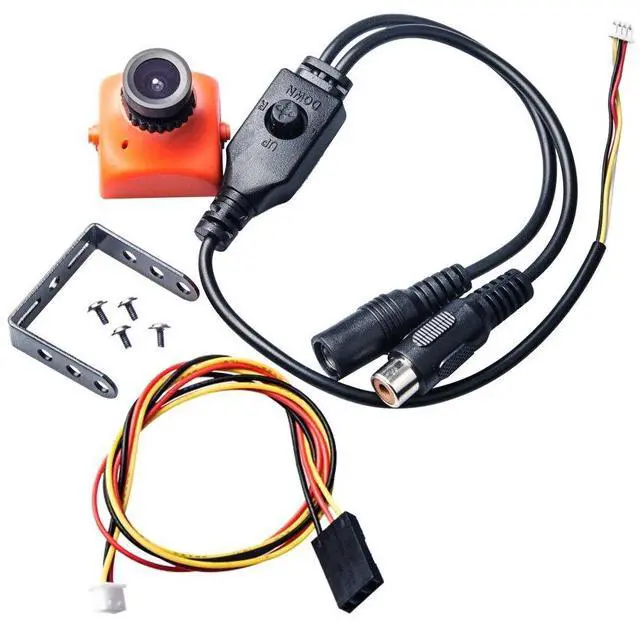

Package includes:
1x FPV transmitter
1x 600TVL Camera
2x Cables
1x Base bracket
1x antenna
1x Connector and cable set
1x Manual
