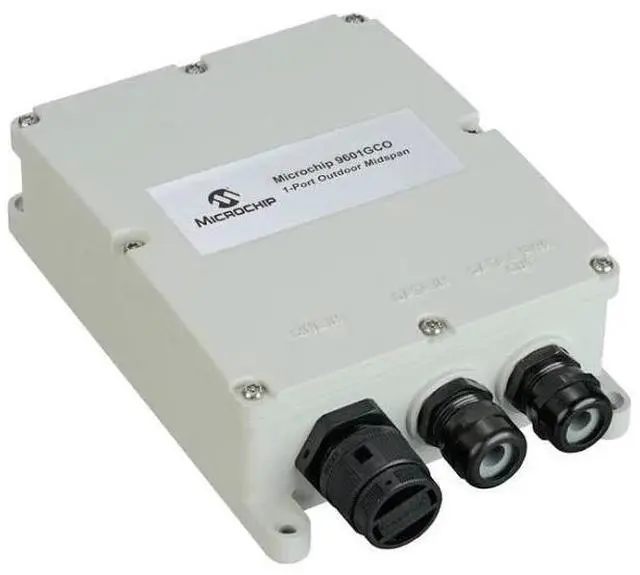

Microsemi 9601GCO 1-Port GigaBit Ethernet Outdoor MidSpan 90W PoE Adapter PD-9601GCO

Product Information

• Part Number: PD-9601GCO
• Manufacturer: Microsemi (now Microchip)
• Product Name: Microsemi 9601GCO 1-Port Gigabit Ethernet Outdoor Midspan 90W PoE Adapter
• Product Type: PoE Injector / Midspan
• Model: PD-9601GCO

Product Description

The Microsemi PD-9601GCO is a single-port, high-power PoE (Power over Ethernet) midspan designed for outdoor installations. It provides up to 90 watts of power to a connected device, making it suitable for applications such as high-power wireless access points, pan-tilt-zoom (PTZ) cameras, and other demanding outdoor network devices. The unit is IP67-rated, ensuring it is protected from dust and water ingress. It operates as a midspan, injecting power into the Ethernet cable to power the device without the need for a separate power source.

Product Specifications

• Power over Ethernet (PoE) Standard: IEEE 802.3bt (draft)
• Ports: 1 x Gigabit Ethernet Input, 1 x Gigabit Ethernet Output (PoE)
• PoE Power: Up to 90W
• Data Rate: 10/100/1000 Mbps
• Outdoor Rating: IP67
• Operating Temperature: -40°C to 55°C
• Surge Protection: Built-in
• Input Voltage: 100-240 VAC
• Dimensions: {'Width': '4.4 inches', 'Depth': '1.7 inches', 'Height': '6.1 inches'}
• Weight: 1.3 lbs
• Color: White/Grey
