Specifications: Eliminate clutter by connecting your DP computer directly to an HDMI display, using this 3-meter cable
Compatible with DP enabled computers such as Dell Precision M4700 and HDMI enabled monitors televisions and projectors
Resolutions up to 4K 30
DisplayPort to HDMI converter / DisplayPort to HDMI / DP to HDMI / DisplayPort to HDMI adapter / 4K DP to HDMI converter cable / 4K adapter cable
Install in your home workstation to make your DisplayPort computer compatible with your HDMI display
Wide Screen Supported: Yes
Industry Standards:
DPCP (DisplayPort Content Protection)
HDCP (High Definition Content Protection)
DisplayPort 1.2
HDMI 1.4
Audio Specifications: 7.1 surround sound
Maximum Digital Resolutions: 4K x 2K @ 30 Hz
Supported Resolutions:
4k...

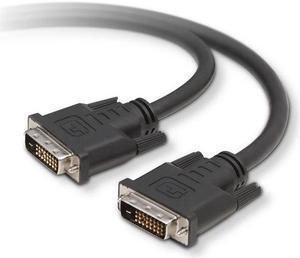

Specifications: Approvals: UL 1007, RoHS2
Cable: 28 AWG
Connectors : 2 x DVI F
Contact Resolution: 2 Ohms, maximum
Insulation Resolution: 10 M Ohms, maximum
Resolution: 1920 x 1080
Specifications: Connector A DISPLAYPORT (MALE)
Connector B DVI-D DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Connector C HD15 (FEMALE)
Connector D HDMI (FEMALE)

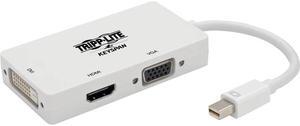

Changer Type: Mini DisplayPort 1.2 to VGA/DVI/HDMI Adapter
Color: White
Specifications: Passive Mini DP to HDMI/VGA/DVI adapter connects your Mini DP or Thunderbolt 1/2 laptop to a VGA, DVI or HDMI display.
Multiple video outputs connect to most displays-no more carrying multiple adapters
HDMI port delivers UHD quality at resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz
Compact unit fits easily into briefcase or laptop bag for instant use anywhere
Plug-and-play operation with no software required for easy, immediate installation
Passive adapter requires connected computer to have DP++ port for signal pass-through
Specifications: Chipset: PTN3361B
Compliant with DisplayPort 1.1a receiver
Compliant with DVI 1.1 specification
Configurable 1 or 2 lane operation
Supports Down Spread Spectrum (SSC)
Display modes:
PC: VGA, SVGA, XGA, SXGA & UXGA display modes
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p
Product:
Overall Length: 9.65" +/- 0.6" (245mm +/- 15mm)
Weight: 0.09 lbs
Color: Black
Material: Plastic
Connector:

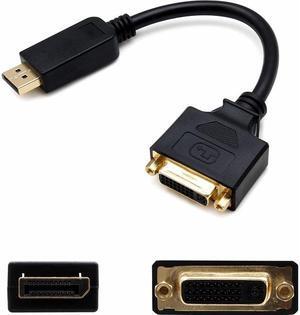

Connectors: 20-Pin DisplayPort (male) to 24-pin DVI-D (female)
DisplayPort connector housing (L x W x H): 1.93" x 0.78" x 0.51" (49 x 20 x 13 mm)
DVI-D connector housing (L x W x H): 1.77" x 1.77" x 0.59" (45 x 45 x 15 mm)
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Humidity: < 85% non-condensing
Certifications/ Standards: FCC, CE, RoHS
Warranty: 3 ...
