Specifications: Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
Device Interface:
1 x Gigabit PoE/PoE+ in port
1 x Gigabit PoE/PoE+ out port
1 x Power port (optional power adapter is not included)
LED indicators
Installation mounting points
Data Transfer Rate:
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Power:
Powered by PoE/PoE+ Device
Consumption: 2 Watts (max.)

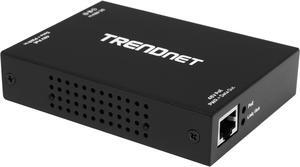

Specifications: Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
Device Interface
- 1 x Gigabit PoE+ in port
- 1 x Gigabit PoE+ out port
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
Performance
- Data RAM Buffer: 128KB
- MAC Address Table: 2K
J- umbo Frame: 9KB
Special Features
- Extends a PoE/PoE+ network connection an additional 100 meters
- Cascade up to 2 units for a total distance of up to 300m (984 ft.) @50V power input
- Cascade up to 3 units for a total distance of up to 400m (1312 ft.) @56V power input
- ESD Contact 6kV/Air 8kV and Surge 2kV protection
PoE
- Power input: 15.4W/...
Specifications: Standard: IEEE 802.3/3u/3ab, IEEE 802.3af Power over Ethernet
1 x 10/100/1000Mbps DATA-IN (Data only)
1 x 10/100/1000Mbps PWR+DATA OUT (Data + Power)
Network Media:
10Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters
100Mbps: UTP/STP Cat. 5, and 5e up to 100 Meters
Gigabit: UTP/STP Cat 5e and 6 up to 100 meters
Data Lines:
Pair 1: Pin 1, 2
Pair 2: Pin 3, 6
Power:
Input: 100~240V, 50~60Hz, 0.4A max.
Output: 48V DC, 0.4A 18W max.
Power Consumption: 15.4 Watts (max.)
Dimensions (W x D x H): 70 x 45 x 25mm (2.75 x 1.8 x 1 in.)
Weight: 45 g (1.6 oz.)
Features: • Easy installation
• Extends 100m for a total distance of up to 200m (656 ft.)
• Daisy chain up to 3 units for a total PoE network extension of up to 400m (1,312 ft.)*
• Supports PoE (15.4W) and PoE+ (30W)
• Wall mountable
• LED Indicators
• Durable metal housing
