Specifications: HARDWARE FEATURES
Interface
- 2 x Gigabit Ethernet Ports
- 1 x USB 2.0 Port
- 1 x Micro USB Port
Power Supply:
- 802.3af PoE
- Micro USB (DC 5V/Minimum 1A)
Dimensions (W x D x H): 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Management Features
Omada App: Yes
Centralized Management
- 100 Omada access points
- 10 Omada gateways
- A maximum of 20 Omada switches*
- A maximum of two select DeltaStream GPON OLTs*
Cloud Access: Yes
L3 Management: Yes
Multi-site Management: Yes
Management Features:
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
OTHERS
Certification: CE, FCC, RoHS
Package Content:
- Omada Hardware Contro...

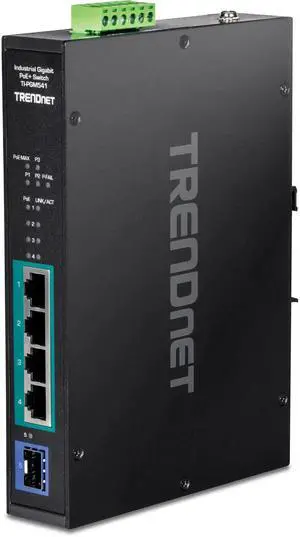

Features: • 4 x Gigabit PoE+ ports • 1 x Gigabit port
• 1 x 100/1000Mbps SFP port
• Up to 120W PoE power budget • Hardened IP50 rated metal switch • Extreme operating temperature range of -40° – 75°C (-40° – 167°F) • Dual inputs provide redundant power with overload current protection
• Alarm relay triggered by power failure • 12Gbps switching

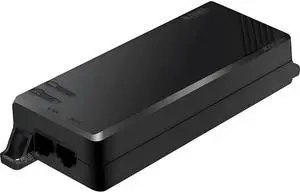

Specifications: Standard: IEEE 802.3/3u/3ab, IEEE 802.3af Power over Ethernet
1 x 10/100/1000Mbps DATA-IN (Data only)
1 x 10/100/1000Mbps PWR+DATA OUT (Data + Power)
Network Media:
10Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters
100Mbps: UTP/STP Cat. 5, and 5e up to 100 Meters
Gigabit: UTP/STP Cat 5e and 6 up to 100 meters
Data Lines:
Pair 1: Pin 1, 2
Pair 2: Pin 3, 6
Power:
Input: 100~240V, 50~60Hz, 0.4A max.
Output: 48V DC, 0.4A 18W max.
Power Consumption: 15.4 Watts (max.)
Dimensions (W x D x H): 70 x 45 x 25mm (2.75 x 1.8 x 1 in.)
Weight: 45 g (1.6 oz.)

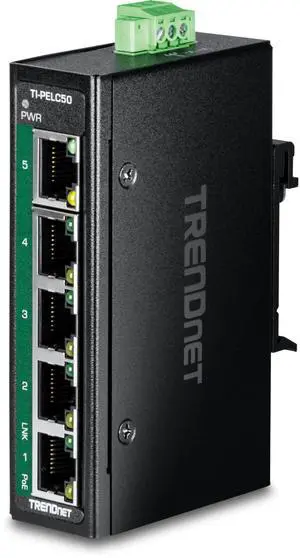

Features: • 4 x Fast Ethernet PoE+ ports
• 1 x Fast Ethernet port
• Up to 90W PoE power budget
• 1Gbps switching capacity
• Hardened IP50 rated aluminum switch
• Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
• Dual inputs provide redundant power with overload current protection
• Includes DIN-Rail mount and wall mount brackets
• Power supply sold separately (model: TI-S15052)
• NDAA
Features: • 4 x Gigabit PoE+ ports
• 1 x Gigabit port
• 2 x Gigabit SFP ports
• Up to 60W @ 12V; 120W @ 24 – 56V
• Hardened IP50 rated metal switch
• Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
• Dual 12–56V DC
