Wireless Data Rates: Max bandwidths and peak data rate per band: 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), maximum peak data rate 14.4 Gbps
Frequency Band: 2.4 GHz + 5 GHz + 6 GHz or 5 GHz + 5 GHz + 6 GHz or 5 GHz + 6 GHz + 6 GHz
Interface: Ports: E0, E1: Two Ethernet wired network ports (RJ45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Kensington security slot Serial console interface (proprietary, microB USB physical jack)
Wireless Data Rates: Max bandwidths and peak data rate per band: 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps
Frequency Band: 2.4 GHz and 5 GHz and 6 GHz
Interface: Wired network interface: 2 x 2.5GbE
Ports: E0, E1: Two Ethernet wired network ports (RJ-45); Autosensing link speed (100/1000/2500BASE-T) and MDI/MDX; 2.5Gbps speed complies with NBase-T and 802.3bz specifications; POEPD: 48Vdc (nominal) 802.3af/at/bt POE (class 3 or higher); 802.3az Energy Efficient Ethernet (EEE)

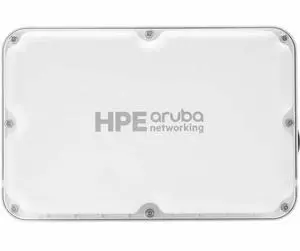

Frequency Band: AP type: Outdoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2x2 MIMO; 2.4 GHz radio: Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with 2SS HE40 802.11ax client devices; 5 GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with 2SS HE80 802.11ax client devices; 6 GHz radio: Two spatial stream Single User (SU) MIMO for up to 2.4 Gbps wireless data rate with 2SS HE160 802.11ax client devices; Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 8 for the 6GHz radio)
Interface: (1) 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX
(1) SFP Fiber port
Frequency Band: Dual Radio for simultaneous dual-band operation
5 GHz 802.11ac 3x3 MIMO for up to 1,300 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
Standards: IEEE 802.11ac, 802.11n
Antenna: Integrated downtilt omni-directional antennas with maximum individual antenna gain of 3.9dBi in 2.4GHz and 5.4dBi in 5GHz
LAN Ports: (1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
Antenna: Integrated down tilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 5.3 dBi in 2.4 GHz, 6.0 dBi in 5 GHz (5.8 dBi in dual-5 GHz mode) and 6.0 dBi in 6 GHz (5.9 dBi in dual-6 GHz mode). Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The down tilt angle for maximum gain is roughly 30 to 40 degrees.
