Quick View

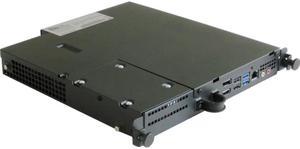

Elo Touch Solutions E809509 Android Expansion ModuleType: Android Expansion ModuleConnector Detail: 12V (1.5A) Powered USB; 24V (2.3A) Powered USB; Serial COM Port (RJ45); 5V USB 2.0 (x2); 19V DC INColor: BlackCompatibility: I-Series 4
Note: Expansion Module can only be used with the power brick included in the kit (I-Series power brick is not compatible).Model #: E809509
Quick View
Elo Standard Power CordPart Number: E604766Type: Power CordColor: BlackCompatibility: 1000 Series (1529L, ESY1529L, 1215L, 1515L, 1715L, 1915L, 1739L and 1939L)Model #: E604766
Quick View

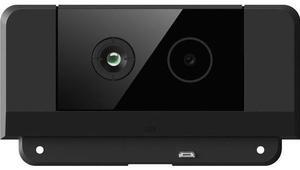

Elo Touch Solutions E534879 Temperature Sensor ProSeries: Temperature Sensor ProType: Temperature SensorSpecification: Interface: USB 2.0
Measurement Accuracy: +/- 0.5 ºC
Scan Time: <1 second
Measurement Distance: 12" - 40" / 30cm - 102cm with optimal distance of 24" / 61cm
Temperature Measurement Range: 30 ºC to 42 ºC / 86 ºF to 108 ºF
IR Camera Resolution: 160 x 120
RGB Camera Resolution: 5MP
Tilt Angle: +30º/-15º (auto or manual adjustment)
IR FOV: 36º (horizontal), 27º (vertical)
RGB FOV: 65ºConnector Detail: USB 2.0Model #: E534879
Quick View

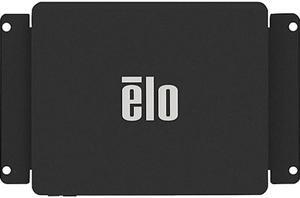

Elo E001003 VFD peripheral kit for X-series AiOType: OtherSpecification: Display Type: Vacuum fluorescent display (VFD)
Display Color: Green
Brightness (typical): 500 - 1000 nits
Characters Available: 95 alphanumeric & 32 international characters
Dot Size (X x Y): 0.86 x 1.20 mm
Font Size (W x H): 5.5 x 10.5
Character Number: 20 characters by 2 lines
Power Supply: 5.0 VDC
Power Consumption (Typical): 2.0 W
Interface: USB / RS-232 (with baud rates select from 9600 or 19200 bps)
Viewing Angle: Max. 90 degrees
Number of Colors: 16.7 million
Supported Command Types:
UlTIMATE
LD220
EPSON POS D101
AEDEX
UTC/S
UTC/P,
ADM788
DSP800
CD5220
EMAX
LOGIC CONTROL
Language Support: US English, Int'l English, Bosnia, Croatian, Czech, Danish, Dutch, Estonian, Faroese, Finnish, Flemish, French, Fr Canadian, German, Greek, Hebrew, Hungarian, Icelandic, Indonesian, Irish, Italian, Katakana, Latvian, Lithuanian, Norw...Model #: E001003
