Additional Features: Ultra HD 4K video 3840 x 2160 @ 30fps
Wide angle 110° field of view
Advanced AI Auto-framing
10x digital Pan Tilt Zoom
Two built-in omnidirectional microphones
Low light optimization
Multi codec: H.264, H.265, MJPEG and YUY2
Smooth video
Easy Install
USB Plug & Play
Specification: Multiple resolutions
4K Ultra HD up to 3840 x 2160 @ 30fps
Image sensor: 4K CMOS sensor 1/2.8 inch
Lens: 4K glass construction
Pixels: 8.28MP, 16:9
View angle: 110° diagonal, 100° height, 53° vertical
Zoom: 5X ePTZ
AI: Auto framing technology
Focal length: 2.26mm
Focus: Advanced Focus
SNR: =50dB
Video output: USB 3.0
Video compression: H.264, MJPEG, YUY2, NV12
Audio input: 2 built-in omni-directional mics
Input voltage: 5V
Input current: 1A (max)
Power: 5W (max)
Camera: Built-in 4K camera
8MP Sony sensor
Field of View: 120° diagonal
4x electronic PTZ (e-PTZ)
Electric privacy shutter
Intelllegence/AI Features:
Auto Framing: Automatically adjusts the view to include all participants.
Speaker Tracking
Picture-in-Picture
Specification: Device Type: Meeting Board
Room Size: Small to Medium
Attendee Amount: 6-10
Support Platform: MS Teams, Zoom
BYOD Support: Yes
Device Management
- Yealink Https Web Portal
- Yealink Device Management Platform
- Yealink Management Cloud Service
- Microsoft Device Management Platform(Microsoft Teams Admin Center/Intune)
- Zoom Device Management
Installation
- Wall mount
- Movable Floor Stand
Ports
- 1 x HDMI Output
- 1 x HDMI Input
- 1 x Detachable PTZ Camera Port
- 2 x RCA Audio Inputs
- 2 x RCA Audio Outputs
- 1 x Yealink VCH Port (RJ-45)
- 3 x USB Type A P...
Specification: Screen
Size: 10.1" (256.54 mm) diagonal
IPS (In-Plane Switching)
LCD Panel with LED Backlighting
Resolution: 1280 x 800 resolution
Touch: Capacitive, 10 points multi-touch
Brightness: 400 nits
Contrast: 1000:1
Anti Fingerprint: Oleophobic coating
Viewing angle: 85 degrees (U/D/L/R)
Position angle: 0 degrees (flat on mounting surface)
General
Integrated accelerometer
Integrated ambient light sensor
100 mm x 100 mm VESA FDMI
Cable exits: horizontal / vertical / center
Compatibility and Certifications
Logitech Tap Scheduler integrates with leading room scheduling solutions as a
Microsoft Teams Panel
Zoom Rooms Scheduling Display
Robin-Powered scheduling panel
Meetio scheduling panel
Package Contents
Logitech Tap Scheduler (White)
Multi-surface mount (glass/drywall)
Corner mount accessory
Mullion mount
Mounting hardware
Documentation

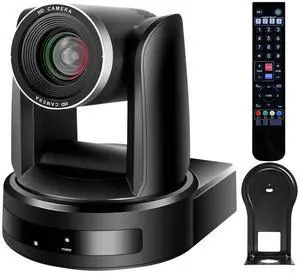

Additional Features: Ultra HD 4K @ 60fps
82° field of view
PTZ with 12x optical zoom
USB 3.0, HDMI and LAN
Sony CMOS sensor
Remote control with 10 camera presets for quick PTZ
PTZ Control: UVC, VISCA, Pelco-D/P, Onvif via RS232, RS422/RS485, LAN, IR Remote
IP Streaming: H.265, H264, RTSP, RTMP
Specification: 4K Ultra HD up to 3840 x 2160 @ 60fps
Image sensor: Sony CMOS sensor (1/2.8)
View angle: 82°
PTZ parameters:
Pan: : ±170°
Tilt: -30°/+90°
Zoom: 12x optical zoom
Presets: 255 (10 with remote)
Resolution: 8.51 MP, 16:9
Focus: Auto, manual, one push
Video output: HDMI, USB 3.0
Video codec LAN: H.265, H.264
Video codec USB 3.0: H.265, H.264, MJPEG, YUY2, MJPEG, NV12
Network protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA
Audio input: Double track 3.5mm linear input
Audio output: HDMI, LAN, USB 3.0
Input voltage: DC12V ±10%
Input current: <1A
Power: <12W...
Camera: Camera type
Dual-lens
Camera resolution
2160p, 4K UHD (3840 x 2160)
Diagonal field of view (dFoV)
140°; 78°
Horizontal field of view (hFoV)
120°; 70°
Additional Features: Special features
Air Quality Sensor; Meeting participant counting; Electronic privacy shutter
