"CIVS-IPC-8030-RF"

• Part Number: RCKMNT-19-CMPCT=

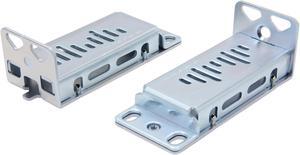

• Type: Mounting
• Color: White
• Model #: RCKMNT-19-CMPCT=

• Type: Power Supply
• Specifications: AC Adapter Maximum Output Power: 10W Compatibility: IMC Minimc Media Converter
• Model #: 806-39720

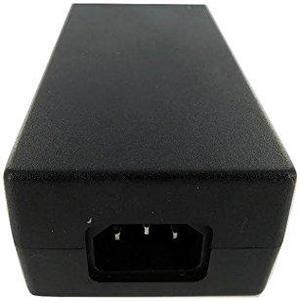

• Type: PoE Adapter
• Specifications: Power-over-Ethernet (PoE) adapter for products with 10/100/1000-BaseT PoE inputs. Indoor-rated. Supports power up to 60W. Input: 100 - 240V AC, 50 / 60 Hz 1.0A Output: 48V DC 1250 mA (60W) Data port: RJ-45 jack PoE/data port: RJ-45 jack Dimension: 4.84" x 2.40" x 1.57" Kit Content: 1 x Country-specific power cord, IEC, 6ft 1 x PoE module (10/100/1000Mbps)
• Model #: 902-0180-US00

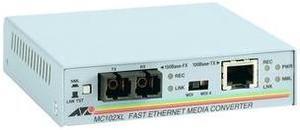

• Type: Media Converter
• Color: Black
• Specifications: 1 x RJ-45 1 x SC Connectivity Media: 100Base-TX UTP 100Base-FX 1310 nm Multi-mode Fiber Distance Support: 1.24 Mile Dimension: 1.00" x 4.10" x 3.70" Weight: 0.65 lb.
• Model #: AT-MC102XL-90

• Type: PoE Injector
• Specifications: Interface: Input Port: 1 x RJ45 STP Data In Output Port: 1 x RJ45 STP PoE (Data + Power) Out Input power terminal block: 1 Network Cable: Twisted-pair cable up to 100 meters (328 ft.) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6 1000BASE-T: 4-pair UTP Cat. 5e, 6 Data Rate: 10/100/1000 Mbps Dimensions: 1.26" x 5.31" x 3.46" Weight: 0.95 lb. Power Requirements: DC 48~56V, 2A max. Unit Output Voltage: DC 45~53V Power Consumption: 75 watts max. Standards Compliance: IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bt 4-pair Power over Ethernet Type 3 IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet Package Contents: IPOE-171-60W User's manual Wall-mount kit Dust cap
• Model #: IPOE-171-60W

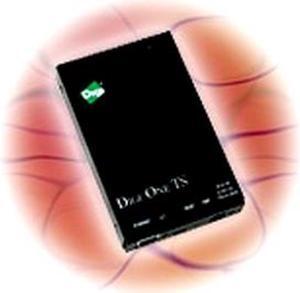

• Type: Consumer Electronics
• Color: Black
• Specifications: Interfaces/Ports: 4 x RJ-45 1 x RJ-45 Data Transfer Rate: 230 Kbps Serial Management: Telnet SNMP Digi Port Authority-Remote HTTP for easy browser configuration Status Indicators: Link / Power Input Voltage: 100 V AC to 240 V AC 9 V DC to 30 V DC Input Current: 400 mA 12 V DC 500 mA 9 V DC to30 V DC
• Parts: 1 year limited
• Model #: 70001807

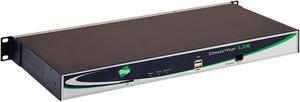

• Type: Console Server
• Specifications: Processor: Freescale MPC8314, 400 MHz Throughput: Up to 230 Kbps Memory: 256 MB SDRAM / 34 MB Flash Interfaces: Serial Ports: 32 RS-232 Serial Connector: Digi 10-pin Ethernet Physical Layer: Dual 10/100/1000 Mbps auto sensing; Full or half duplex USB Ports: 2 USB 2.0 connectors; 500 mA max each port Console Ports: 10-pin RJ-45 serial port for configuration Power Input: 100-240 VAC, 50-60 Hz, 0.8A Management: HTTP/HTTPS, CLI or telnet, SNMP read and write Protocols: TCP/UDP, DHCP, telnet, Reverse telnet/SSHv2/SSL, IPv4/IPv6 Security: Encrypted RealPort, SSHv2, SSL Dimensions: 8.7" x 17." x 1.8" Weight: 5.7 lbs.
• Model #: 70002411

• Type: Expansion Module
• Specifications: Form Factor: Plug-in module Ports: Gigabit Ethernet / 10Gb Ethernet x 4 Connectivity Technology: Wired Data Link Protocol: GigE, 10 GigE Data Transfer Rate: 10 Gbps Interfaces: 4 x 10GBase-T - RJ-45
• Model #: ICX7400-4X10GC

• Specifications: Interfaces/Ports: 1 x RJ-45 Data Transfer Rate: 230 Kbps Serial Management: SNMP Protocols: Telnet Reverse Telnet PPP SSH v2 HTTP DHCP ARP RARP TCP UDP Status Indicators: Link / Power Input Voltage: 100 V AC to 240 V AC 9 V DC to 30 V DC Input Current: 400 mA 12 V DC 500 mA 9 V DC to30 V DC
• Parts: 1 year limited
• Labor: 1 year limited
• Model #: 70001805

• Type: Console Server
• Specifications: 32 x serial - RS-232 - RJ-45 1 x management - console - RJ-45 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 Total Expansion Slots: 1 Memory: 64MB SDRAM Input Voltage: 110 - 220 V AC Form Factor: Rack-mountable Dimensions: 17.0" x 8.5" x 1.8" Weight: 5.8 lbs.
• Model #: 70001908

• Type: Expansion Module
• Specifications: Ports: 40 Gigabit QSFP+ x 1 Connectivity Technology: Wired Data Link Protocol: 40 Gigabit LAN Data Transfer Rate: 40 Gbps
• Model #: ICX7400-1X40GQ

• Type: Console Server
• Parts: 1 year limited
• Labor: 1 year limited
• Model #: 70001949

OUT OF STOCK

• Type: PoE Injector
• Specifications: Interface: Input Port: 1 x RJ45 STP Data In Output Port: 1 x RJ45 STP PoE (Data + Power) Out Input power terminal block: 1 Network Cable: Twisted-pair cable up to 100 meters (328 ft.) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6 1000BASE-T: 4-pair UTP Cat. 5e, 6 Data Rate: 10/100/1000 Mbps Dimensions: 1.26" x 5.31" x 3.46" Weight: 1.04 lbs. Power Requirements: DC 12~48V, 5A max. Unit Output Voltage: DC 54V Power Consumption: 120 watts max. Standards Compliance: IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bt 4-pair Power over Ethernet Type 4 IEEE 802.3at Power over Ethernet Plus Package Contents: IPOE-171-95W User's manual Wall-mount kit Dust cap
• Model #: IPOE-171-95W
