"EP5-GTC-1103-3"

• Type: Other
• Specifications: Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3az USB Type-C USB 3.0 USB 2.0 USB 1.1 Interface: 1 x USB Type-C connector 3 x USB 3.0 ports 1 x Gigabit port Maximum Data Rate: Up to 2 Gbps (Gigabit port) Up to 5 Gbps (USB port) Special Features: Compact form factor Energy saving GREENnet technology Flexible USB Type-C cable USB Bus Powered: Output: 5V, 0.9A Consumption 4.5W (max.) System Compatibility: Windows: 10, 8.1, 8 MacOS: 10.9 - 10.13 Operating Temperature: 0 - 40 degree C (32 - 104 degree F) Operating Humidity: Max. 90% non-condensing Package Contents: TUC-ETGH3 Quick Installation Guide CD-ROM (Driver & User's Guide)
• Model #: TUC-ETGH3 (V1.0R)

• Type: PoE Injector
• Color: Black
• Specifications: Standards 802.3 10BaseT 802.3u 100BaseT 802.3ab Gigabit Ethernet Proprietary PoE Physical Interface 1) Gigabit Data Port (1) Gigabit Data & Power Output Port (1) IEC-320 C6 AC Connector Power Input voltage : 100 to 240 VAC Input current: 0.8A maximum for 100 VAC AC input Frequency: 47-63Hz Maximum output power: 32.8W Pin4, 5:54V; Pin7, 8: Return Temperature Range Operating: 32 degree F to 104 degree F (0 degree C to 40 degree C) Storage: -22 degree F to 176 degree F (-30 degree C to 80 degree C) Humidity (non-condensing) Operating: 5 to 90% or less Storage: 5 to 90% or less LED Indicator: 1 x Power on Green Mounting: Wall (anchors & screws included) Dimensions: 1.30" x 3.90" x 2.27"
• Parts: Manufacturers Limited Warranty: 1 Year / Parts Only
• Model #: EPA5006GP

• Type: Software

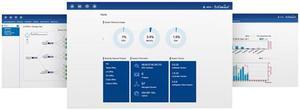

• Specifications: Recommended environment for managing up to 500 APs CPU: Intel Core i3 3.6 GHz dual-core or above RAM: 4 GB minimum HDD: 500 GB (actual requirement is dependent on log size) OS: Microsoft Windows 7 or later + VirtualBox 4.3.30 or VMware Player 7 (or similar virtualization products) Recommended environment for managing up to 1000 APs CPU: Intel Core i5 3.2 GHz quad-core or above RAM: 4 GB minimum HDD: 500 GB (actual requirement is dependent on log size) OS: Microsoft Windows 7 or later + VirtualBox 4.3.30 or VMware Player 7 (or similar virtualization products) Browser Requirements Internet Explorer 10 or better Firefox 34.0 or better Chrome 31.0 or better Safari 8.0 or better Network Topology Requirements At sites where APs are deployed: A DHCP-enabled network for APs to obtain IP address
• Model #: ezMaster

• Device Type: Converter

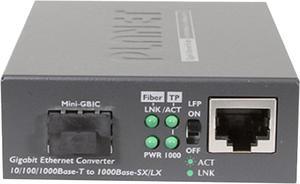

• Standards: IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX
• Ports: 1 x 10/100/1000Base-T port 1 x 1000Base-SX/LX port
• LEDs: PWR TP LINK / ACT, 1000 Fiber LINK / ACT
• Model #: GT-805A

• Part Number: ET91000SC2
• Type: Transceiver/Media Converter
• Specifications: Interfaces/Ports Total Number of Ports: 2 Network (RJ-45): Yes DVI: No USB: No Parallel Port: No Digital Audio: No Digital Audio/Video: No Management Port: No Number of Network (RJ-45) Ports: 1 Number of SC Ports: 1 SC Port Type: Duplex Media & Performance Media Type Supported: Twisted Pair Optical Fiber Fiber Mode Supported: Multi-mode Fiber Optic Cable Wavelength: 0 mil Maximum Distance Supported: 0.55 km Network & Communication Ethernet Technology: Gigabit Ethernet Network Technology: 10/100/1000Base-T 1000Base-SX/ LX Power Description Power Source: AC Adapter Input Voltage: 12 V DC Power Consumption: 4 W Plug/Connector Type: Type M Physical Characteristics Color Family: Black Product C...
• Model #: ET91000SC2

• Part Number: ET90110ST2
• Type: 10/100 Mbps Multi Mode Fiber Media Converter ST 2km
• Color: Black
• Specifications: Interfaces/Ports Total Number of Ports: 2 Network (RJ-45): Yes DVI: No USB: No Parallel Port: No Digital Audio: No Digital Audio/Video: No Management Port: No Number of Network (RJ-45) Ports: 1 Number of ST Ports: 1 ST Port Type: Duplex Media & Performance Media Type Supported: Twisted Pair Optical Fiber Fiber Mode Supported: Multi-mode Fiber Optic Cable Wavelength: 0.1 mil Maximum Distance Supported: 2 km Network & Communication Ethernet Technology: Fast Ethernet Network Technology: 10/ 100Base-TX 100Base-FX Power Description Power Source: AC Adapter Input Voltage: 12 V DC Power Consumption: 19.20 W Plug/Connector Type: Type M Physical Characteri...
• Model #: ET90110ST2

• Type: Adapter
• Color: Black
• Specifications: Standards - IEEE 802.3 - IEEE 802.3u - IEEE 802.3x - IEEE 802.3ab - IEEE 802.3af - IEEE 802.3at Device Interface - 1 x Gigabit PoE+ in port - 1 x Gigabit PoE+ out port - LED indicators - DIN-Rail mount - Wall mount - Grounding point Data Transfer Rate - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) - Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) - Gigabit: 2000Mbps (full duplex) Performance - Data RAM Buffer: 128KB - MAC Address Table: 2K J- umbo Frame: 9KB Special Features - Extends a PoE/PoE+ network connection an additional 100 meters - Cascade up to 2 units for a total distance of up to 300m (984 ft.) @50V power input - Cascade up to 3 units for a total distance of up to 400m (1312 ft.) @56V power input - ESD Contact 6kV/Air 8kV and Surge 2kV protection PoE - Power input: 15.4W/...
• Model #: TI-E100

• Type: PoE Injector
• Specifications: Number of Ports: 2 (1 for data in, 1 for data and power out) Pass-through Data Rates: 10/100/1000 Mbps Maximum Cable Run: 100 meters or 330 feet which corresponds to Ethernet limits LED Indicator: Power On/Off and overload conditions Connectors: Shielded RJ-45, EIA 568A and 568B MTBF: 100,000 hrs. at 25 ºC Power over Ethernet Output: Pin Assignment and Polarity: 4/5 (+), 7/8 (–) Output Power Voltage: 50V DC Output Power: 15.4 Watts Input Power Requirements AC Input Voltage: 90 to 264V AC AC Input Current: 0.5A at 100 - 240V AC AC Frequency: 47 - 63 Hz Operating Ambient Temperature: 32 - 104ºF (0 - 40ºC) Storage Temperature: -4 - 158ºF (-20 - 70ºC) Operating Humidity: Maximum 90%, non-condensing Storage Humidity: Maximum 95%, non-condensing Operating Altitude: -1000 - 10,000 ft. (-304.8 - 3048 m) Heat Dissipation: ...
• Model #: GPI-115

• Type: PoE Repeater
• Color: Black
• Specifications: Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at Device Interface: 1 x Gigabit PoE/PoE+ in port 1 x Gigabit PoE/PoE+ out port 1 x Power port (optional power adapter is not included) LED indicators Installation mounting points Data Transfer Rate: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) Power: Powered by PoE/PoE+ Device Consumption: 2 Watts (max.)
• Model #: TPE-E110

• Type: PoE Injector
• Color: Black
• Specifications: Standard: IEEE 802.3/3u/3ab, IEEE 802.3af Power over Ethernet 1 x 10/100/1000Mbps DATA-IN (Data only) 1 x 10/100/1000Mbps PWR+DATA OUT (Data + Power) Network Media: 10Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters 100Mbps: UTP/STP Cat. 5, and 5e up to 100 Meters Gigabit: UTP/STP Cat 5e and 6 up to 100 meters Data Lines: Pair 1: Pin 1, 2 Pair 2: Pin 3, 6 Power: Input: 100~240V, 50~60Hz, 0.4A max. Output: 48V DC, 0.4A 18W max. Power Consumption: 15.4 Watts (max.) Dimensions (W x D x H): 70 x 45 x 25mm (2.75 x 1.8 x 1 in.) Weight: 45 g (1.6 oz.)
• Model #: TPE-113GI

• Type: UPoE Splitter
• Color: Black
• Specifications: Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt compatible Device Interface: 1 x Gigabit port 1 x Gigabit Ultra PoE in port 4-pin removable terminal block (dual DC output) Adjustable output power DIP switch (48V, 24V, 16V, 12V) LED indicator DIN-Rail mount Wall mount Grounding point Data Transfer Rate: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) Special Features: Hardened components rated for extreme temperatures Dual DC power output Auto-Negotiation ESD 4kV and Surge 2kV protection Power: Input: 15.4W / 30W / 60W / 95W PoE power Max. Consumption: 7W (splitter only) Max. Combined DC Output: 48V (1.25A), 24V (2.3A), 16V (2.3A), 12V (2.3A) Package Contents...
• Model #: TI-SG104

• Type: PoE Injector
• Color: Black
• Specifications: Standards: - IEEE 802.3 - IEEE 802.3u - IEEE 802.3ab - IEEE 802.3af - IEEE 802.3at - IEEE 802.3bt Device Interface: - 1 x Gigabit Data in port - 1 x Gigabit PoE++ out port Data Transfer Rate: - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) - Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) - Gigabit: 2000Mbps (full duplex) Special Features: Wall-mountable PoE: Pin 1, 2, 4, 5 for power+ and pin 3, 6, 7, 8 for power Power - Input: 100 - 240V AC, 50/60Hz, internal power supply - Max. Consumption: 3W PoE Budget: Max. 95W Temperature: 0 - 40°C (32 - 104°F) Humidity: Max. 90% non-condensing Dimension: 6.00" x 2.90" x 1.40" Weight: 0.93 lb.
• Model #: TPE-119GI (v1.0R)

• Type: Consumer Electronics
• Specifications: 1 x 1000BASE-T (RJ-45) [100 m/328 ft.] 1 x 1000BASE-SX 850nm multimode (SC) [62.5/125µm: 220 m/722 ft.; 50/125µm: 550 m/1804 ft.]
• Parts: 1 year limited
• Labor: 1 year limited
• Model #: SGETF1013-110-NA

• Model #: UF-GP-C+

• Type: Mounting

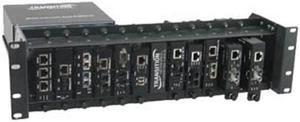

• Specifications: Product Type: Media Converter Chassis Dimensions: 4.75" x 17.00" x 15.00" Package Contents: E-MCR-05 12-slot Media Converter Rack 12 univeral rack mount media converter brackets
• Parts: Lifetime limited
• Labor: Lifetime limited
• Model #: E-MCR-05-NA

• Type: Media Converter
• Specifications: Compatible OEM: Industry Standard Connector Types: RJ-45 & SFP Data Rate: 1Gbs Unmanaged Media Conversion Type: Copper to MMF or SMF Media Type: MMF or SMF POE: No Power Supply: AC/DC Power Adapter - 5V DC Input Product Shipping Dimension(HxWxD): 4.0 in. x 3.0 in. x 1.0 in.
• Parts: 3 Year
• Model #: ADD-GMC-SFP

OUT OF STOCK

• Part Number: ET91000SM402
• Type: Transceiver/Media Converter
• Specifications: Interfaces/Ports Total Number of Ports: 2 Network (RJ-45): Yes DVI: No USB: No Parallel Port: No Digital Audio: No Digital Audio/Video: No Management Port: No Number of Network (RJ-45) Ports: 1 Number of SC Ports: 1 SC Port Type: Duplex Media & Performance Media Type Supported: Twisted Pair Optical Fiber Fiber Mode Supported: Single-mode Fiber Optic Cable Wavelength: 0.1 mil Maximum Distance Supported: 40 km Network & Communication Ethernet Technology: Gigabit Ethernet Network Technology: 10/100/1000Base-T 1000Base-SX/ LX Power Description Power Source: AC Adapter Input Voltage: 12 V DC Power Consumption: 4 W Plug/Connector Type: Type M Physical Characteristics Color Family: Black Produc...
• Model #: ET91000SM402
