"ESA-DLP-1Y-S2"

• Type: PoE Splitter
• Color: Black
• Specifications: Power supply pin: (1,2/ 3,6);(4,5/7,8) Connector: - 1 x 10/100Mbps POE RJ45 Input Port - 1 x 10/100M male output port - 1 x (5.5x2.1mm) DC output port Network Medium: Cat 5e or better UTP Standard - IEEE 802.3 i 10 BASE-T - IEEE 802.3 u 100 BASE-TX - IEEE 802.3 x Flow Control - IEEE 802.3af Power over Ethernet Standard: - IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, - IEEE 802.3x Flow Control Rate: 10/100Mbps Transmission Method: Store and Forward LED Status: POE power input indicator light Environment - Operation Temperature:0°C~40°C - Storage Temperature:-40°C~70°C - Operation Humidity:10%~90% RH Non-condensing - Storage Humidity:5%~90% RH Non-condensing
• Model #: PS1

• Type: PoE Injector
• Specifications: Input Ports: 1 x RJ-45 10/100/1000Base-T Output Ports: 1 x RJ-45 10/100/1000Base-T PoE/PoE+ compatible For Gigabit and Fast Ethernet connections
• Model #: DPE-101GI

• Type: Serial Server
• Color: Black
• Specifications: What's in the box: Digi Connect EZ 2 - serial server, 2-port, with accessories Power supply - 12 V, 3 A (24000136) DIN rail clip (76002095)
• Model #: EZ02-CA00-GLB

• Type: PoE Injector
• Color: Black
• Specifications: Standards: - IEEE 802.3 - IEEE 802.3u - IEEE 802.3ab - IEEE 802.3af - IEEE 802.3at - IEEE 802.3bz Device Interface: - 1 x 2.5GBASE-T port (data) - 1 x 2.5GBASE-T PoE+ port (data + power) PoE Budget: Max. 30W Power Consumption: Max. 0.7W (without PD) Temperature: 0 - 40° C (32 - 104° F) Humidity: Max. 90% non-condensing Certifications: - CE - FCC - ETL Dimensions: 154 x 73 x 36mm (6.00" x 2.90" x 1.40") Weight: 386g (0.85 lb.)
• Model #: TPE-215GI

• Color: Black

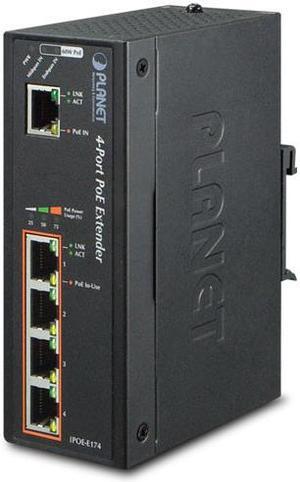

• Model #: IPOE-E174

• Type: PoE Repeater
• Color: Black
• Specifications: Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at Device Interface: 1 x Gigabit PoE/PoE+ in port 1 x Gigabit PoE/PoE+ out port 1 x Power port (optional power adapter is not included) LED indicators Installation mounting points Data Transfer Rate: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) Power: Powered by PoE/PoE+ Device Consumption: 2 Watts (max.)
• Model #: TPE-E110

• Type: PoE Injector
• Specifications: Ethernet Interface: Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI / MDI-X Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device) PoE Input: Supports both mid-span and end-span PSE Input Range: 48~56V DC Data Rate: 100/100 Mbps Cabling: Cat5e or above Maximum Distance: 100m Maximum Frame Size: 1522 bytes LED Indicators: 4 x LEDs PWR LRP LNK PoE IN LNK / ACTESD Protection: 4 KV DC EFT Protection: 2 KV Enclosure Metal: case Installation: Wall mount or DIN rail with optional kit Power Requirements: RJ45 PoE Input: 802.3at/af 48~56V DC DC Input: 48~56V DC Standards Compliance: IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af Power over Ethernet (802.3at Type 1) IEEE 802.3at Power over Ethernet (802.3at Type 2)

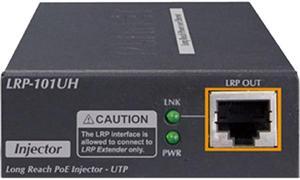

• Model #: LRP-101UH

• Type: PoE Extender
• Specifications: Interfaces: PoE IN:1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE "Data + DC power" in auto MDI/MDI-X, auto-negotiation RJ45 connector PoE OUT: 2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE "Data + DC power" out auto MDI/MDI-X, auto-negotiation RJ45 connector Power over Ethernet PoE Standard: "PoE In" Port: IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD Per "PoE Out" Port: IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE PoE Power Supply Type: End-span (Type A) PoE Power: "PoE In" Port: 52 - 56V DC, max. 30.8 watts Per "PoE Out" Port: 44 - 55V DC, max. 25 watts Power Pin Assignment: "PoE In" Port: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) Per "PoE Out" Port: 1/2 (+), 3/6 (-) Data Rate: 10/100/1000Mbps MAC Address Table: 2K Data Bu...
• Model #: POE-E202

• Type: Adapter
• Specifications: Serial Port Ports: 1 Protocol: RS232 Connector: DB9 Connector - 9 Pin Male Tx FIFO Size: 256 Rx FIFO Size: 32 Operating Distance: EIA - RS232 Standard Cable: No Cable; Integrated Connector Serial Port Settings Max Baud Rate: 1,000,000 (1 MegaBaud) Data Bits: 5, 6, 7 or 8 Parity: Odd, Even, None, Mark or Space Stop Bits: 1 or 2 Flow Control: RTS / CTS, DSR / DTR, XON / XOFF Tx / Rx Modes: Point to Point Power Power Input: Power Over Ethernet OR 5 - 30V DC input, reverse polarity protected Power Over Ethernet: IEEE 802.3af Power Supply 1 Description: Optional Global Power Supply - PW-800 General Mounting Accessories 1 Description: DIN-Rail Mounting Kit - MK-048 PCB Layers: 4 Operating System Compatibility Operating Systems: Communicate with Device over TCP from any OS Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editi...
• Model #: ES-446

• Type: PoE Injector
• Color: Black
• Specifications: Standard: IEEE 802.3/3u/3ab, IEEE 802.3af Power over Ethernet 1 x 10/100/1000Mbps DATA-IN (Data only) 1 x 10/100/1000Mbps PWR+DATA OUT (Data + Power) Network Media: 10Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters 100Mbps: UTP/STP Cat. 5, and 5e up to 100 Meters Gigabit: UTP/STP Cat 5e and 6 up to 100 meters Data Lines: Pair 1: Pin 1, 2 Pair 2: Pin 3, 6 Power: Input: 100~240V, 50~60Hz, 0.4A max. Output: 48V DC, 0.4A 18W max. Power Consumption: 15.4 Watts (max.) Dimensions (W x D x H): 70 x 45 x 25mm (2.75 x 1.8 x 1 in.) Weight: 45 g (1.6 oz.)
• Model #: TPE-113GI

• Type: PoE Injector
• Model #: SI-IES-111D-LRT

• Model #: E413396

• Part Number: ET91000SM402
• Type: Transceiver/Media Converter
• Specifications: Interfaces/Ports Total Number of Ports: 2 Network (RJ-45): Yes DVI: No USB: No Parallel Port: No Digital Audio: No Digital Audio/Video: No Management Port: No Number of Network (RJ-45) Ports: 1 Number of SC Ports: 1 SC Port Type: Duplex Media & Performance Media Type Supported: Twisted Pair Optical Fiber Fiber Mode Supported: Single-mode Fiber Optic Cable Wavelength: 0.1 mil Maximum Distance Supported: 40 km Network & Communication Ethernet Technology: Gigabit Ethernet Network Technology: 10/100/1000Base-T 1000Base-SX/ LX Power Description Power Source: AC Adapter Input Voltage: 12 V DC Power Consumption: 4 W Plug/Connector Type: Type M Physical Characteristics Color Family: Black Produc...
• Model #: ET91000SM402

• Type: Anti-Virus License
• Specifications: 12-Month Anti Virus Licence Subscription Kit for DFL-860
• Model #: DFL-860-AV-12

• Model #: TL-EAP225-Outdoor

• Type: Device Server
• Color: Black
• Specifications: 2 x serial - RS-232/422/485 - 9 pin D-Sub (DB-9) 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 Processor: Lantronix DSTNI-EX 48 MHz clock Memory: 256 KB zero wait state SRAM 2 MB Flash Form Factor: Desktop
• Parts: 2 Year
• Model #: SD2101002-11

• Type: PoE Converter
• Color: Black
• Specifications: CE Approval: Yes Distance (Maximum): UTP side: 100 m (328 ft.); Fiber side (850-nm multimode): 62.5/125-µm: 160-MHz: 220 m (721 ft.); 200-MHz: 275 m (902.2 ft.); 50/125-µm: 400-MHz: 500 m (1640 ft.); 500-MHz: 550 m (1804.4 ft.) Power: Input: 100-240 VAC, 47-63 Hz; Consumption (maximum): 24 W Standards: IEEE 802.3af (PoE), IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3z/ab (1000BASE-T), IEEE 802.3x full-duplex flow control, 1000BASE-SX
• Model #: LPS500A-MM-LC-R3

• Type: PoE Injector
• Color: Black
• Specifications: Standards: - IEEE 802.3 - IEEE 802.3u - IEEE 802.3ab - IEEE 802.3af - IEEE 802.3at - IEEE 802.3bt Device Interface: - 1 x Gigabit Data in port - 1 x Gigabit PoE++ out port Data Transfer Rate: - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) - Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) - Gigabit: 2000Mbps (full duplex) Special Features: Wall-mountable PoE: Pin 1, 2, 4, 5 for power+ and pin 3, 6, 7, 8 for power Power - Input: 100 - 240V AC, 50/60Hz, internal power supply - Max. Consumption: 3W PoE Budget: Max. 95W Temperature: 0 - 40°C (32 - 104°F) Humidity: Max. 90% non-condensing Dimension: 6.00" x 2.90" x 1.40" Weight: 0.93 lb.
• Model #: TPE-119GI (v1.0R)

• Type: PoE Extender
• Specifications: PoE Standard: IEEE 802.3af (Power over Ethernet) IEEE 802.3at (High Power over Ethernet) PoE Power Supply Type: Mid-Span / Type B PoE Power Output: 52V DC, 510 mA, Max. 26 watts Power Pin Assignment: 4/5 (+), 7/8 (-) Maximum Distance: 4 units, daisy-chain installation with 500m support Data Rate: 10/100/1000 Mbps Switch Architecture: Store-and-Forward Maximum Frame Size: 1552 Bytes Flow Control: Back pressure for half-duplex IEEE 802.3x pause frame for full-duplex LED Indicators: 1 x PoE IN (Green) 1 x LAN Data (Green) 1 x PoE OUT (Green) Power Requirements: IEEE 802.3at compliant with voltage within 52V-56V DC Power Consumption: 3.2 watts (system maximum)
• Model #: POE-E201

• Type: PoE Injector
• Color: Black
• Specifications: Standards 802.3 10BaseT 802.3u 100BaseT 802.3ab Gigabit Ethernet Proprietary PoE Physical Interface 1) Gigabit Data Port (1) Gigabit Data & Power Output Port (1) IEC-320 C6 AC Connector Power Input voltage : 100 to 240 VAC Input current: 0.8A maximum for 100 VAC AC input Frequency: 47-63Hz Maximum output power: 32.8W Pin4, 5:54V; Pin7, 8: Return Temperature Range Operating: 32 degree F to 104 degree F (0 degree C to 40 degree C) Storage: -22 degree F to 176 degree F (-30 degree C to 80 degree C) Humidity (non-condensing) Operating: 5 to 90% or less Storage: 5 to 90% or less LED Indicator: 1 x Power on Green Mounting: Wall (anchors & screws included) Dimensions: 1.30" x 3.90" x 2.27"
• Parts: Manufacturers Limited Warranty: 1 Year / Parts Only
• Model #: EPA5006GP

• Type: N/A
• Specifications: Description: 8 Digital Inputs and 8 Digital Outputs Digital Inputs: 8 Logic Level 0: -30.0V to +1.0V Logic Level 1: +2.0V to +30V Latched Inputs: Triggered by user programmable positive or negative edges, stays true until acknowledged Counter Inputs: User progammable- counts positive or negative transitions up to 100Hz Watchdog: Active high/low, Pulsed high/low Digital Outputs: 8 Digital Output Type: Open drain transistor, protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min Maximum Output Load Voltage: 30 VDC Maximum Output Current Sink: 0.85A per channel Serial Gateway: RS485 NuDam/ADAM compatible gateway Number of Ports: 1 Network Port Type: RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX) Network Protocols: ICMP, IP, TCP, DHCP, HTTP Protection: 1500V M...
• Model #: ED-588

OUT OF STOCK

• Type: Adapter
• Specifications: Serial Port Ports: 2 Protocol: RS232 Connector: DB9 Connector - 9 Pin Male Tx FIFO Size: 256 Rx FIFO Size: 32 Operating Distance: EIA - RS232 Standard Cable: No Cable; Integrated Connector Serial Port Settings Max Baud Rate: 1,000,000 (1 MegaBaud) Data Bits: 5, 6, 7 or 8 Parity: Odd, Even, None, Mark or Space Stop Bits: 1 or 2 Flow Control: RTS / CTS, DSR / DTR, XON / XOFF Tx / Rx Modes: Point to Point Power Power Input: Power Over Ethernet OR 5 - 30V DC input, reverse polarity protected Power Over Ethernet: IEEE 802.3af Power Supply 1 Description: Optional Global Power Supply - PW-800 General Mounting Accessories 1 Description: DIN-Rail Mounting Kit - MK-048 PCB Layers: 4 Operating System Compatibility Operating Systems: Communicate with Device over TCP from any OS Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editi...

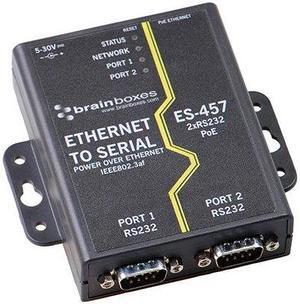

• Model #: ES-457
