Specifications: Chipset: PTN3361B
Compliant with DisplayPort 1.1a receiver
Compliant with DVI 1.1 specification
Configurable 1 or 2 lane operation
Supports Down Spread Spectrum (SSC)
Display modes:
PC: VGA, SVGA, XGA, SXGA & UXGA display modes
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p
Product:
Overall Length: 9.65" +/- 0.6" (245mm +/- 15mm)
Weight: 0.09 lbs
Color: Black
Material: Plastic
Connector:

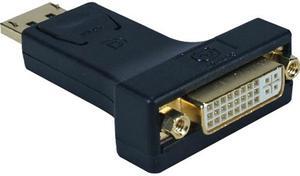

Connectors: 20-Pin DisplayPort (male) to 24-pin DVI-D (female)
DisplayPort connector housing (L x W x H): 1.93" x 0.78" x 0.51" (49 x 20 x 13 mm)
DVI-D connector housing (L x W x H): 1.77" x 1.77" x 0.59" (45 x 45 x 15 mm)
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Humidity: < 85% non-condensing
Certifications/ Standards: FCC, CE, RoHS
Warranty: 3 ...
Specifications: Connect a Tablet or Smartphone to a DVI Display Monitor
Compatible with HDTV resolutions up to 1080P
View presentations, Videos or pictures on a DVI monitor or projector
Specifications: Max Supported Video Resolution: 1920 x 1080 @60Hz
Displayport Specification: 1.1a
HDMI Specification: 1.3
HDCP Specification: 1.3
Audio Specification: 7.1 Surround Sound
Driver Required: No
Max Supported Color Depth: 36-bit Deep Color
Specifications: Operating: 0 to 40 C / 32 to 104 F
Storage: -40 to 70 C / -40 to 158 F
Cable Length (in.): 6
Color: White
Connector A: MINI DISPLAYPORT (MALE)
Connector B: HDMI (FEMALE)
Specifications: Connector on First End:1 x DisplayPort Male DisplayPort 1.1 Digital Audio/Video
Connector on Second End:1 x DVI (Dual-Link) Female Video
Specifications: Approvals: UL 1007, RoHS2
Cable: 28 AWG
Connectors : 2 x DVI F
Contact Resolution: 2 Ohms, maximum
Insulation Resolution: 10 M Ohms, maximum
Resolution: 1920 x 1080
