Specifications: Material: Plastic outer shell
Included Parts:
2 x SST-LS02 RGB LED strip
2 x Extend Y cable
1 x RGB 4pin signal cable
1 x 4pin peripheral cable
Signal input: a RGB 4pin host (+12V, G, R, B) or built-in IC control
Signal output: 8 x SilverStone custom RGB 4pin
Net weight: 1.06 oz.
Dimension: 0.75" x 1.81" x 3.35"
Specifications: Material: Plastic outer shell
Output limitation (each port):
Addressable RGB port: 72 LED per port, total 5V, 5A
Fan Port : total 12V, 3A
Color Selection: Support 2812 IC Addressable RGB LED
Signal output:
Standard Addressable RGB 3pin + 4-1pin x 6*
Fan 4pin port x 4 (compatible with 3pin)
Included Parts:
6 x Standard Addressable RGB cable
1 x Peripheral power Y cable
1 x RF remote
1 x Thermal sensor cable
1 x Power switch cable
Specifications: Material 12 pcs addressable RGB LED with magnetic strip and adhesive tape
Pin definition:
+5V, D, G*
+5V, D, NP, G*
Included Parts:
2 x Addressable RGB LED strip
1 x Motherboard connect cable**
1 x Splitter cable
Length: 300mm
Wattage: 3W (5V, 0.6A)
Tandem limits: Depend on controller
Remark:
* Please check the control box and motherboard pin header that you want to connect are the same as LS03’s pin definition.
** Included Motherboard connect cable supports SilverStone’s addressable RGB 3pin connectors and other market standard addressable RGB 3pin (three pin in four pin housing) connectors.

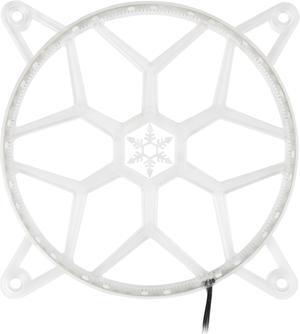

Specifications: Material: Plastic fan grille and 28 pcs RGB LED Strip
Pin definition: +12V, G, R, B
Application: 140mm fan grille, LED kit
Rated Voltage: 12V DC
Rated Current: 0.56 A
Net weight: 45.00g
Dimension: 140.00 x 140.00 x 6mm
Specifications: Material: 18 pcs 5050 RGB LED with magnetic strip and adhesive tape
Pin definition: +12V, G, R, B
Included Parts:
RGB LED strip x 2
Y cable x 2
Length: 300mm
Wattage: 1.44W (12V, 0.12A)
Tandem limits: 5 pcs on each line
Weight: 30g
