Specifications: No. of Ports: 12
Pass Through Data Rates 10/100/1000 Mbps
PoE Output:
Pin Assignment and Polarity:
Data Pairs 1/2 (-) and 3/6 (+)
Spare Pairs 7/8 (-) and 4/5 (+)
Output Power Voltage: 54-57V DC
User Port Power: 72W Typ.
Aggregate Power: 1000W
Input Power Requirements:
AC Input Voltage: 100 to 240V AC
DC Input: 57V (RPS or another 9500G midspan)
AC Input Current: 450W Units: 5.5A @ 110V AC; 2.75A @ 220V AC
1000W Units: 12A @ 110V AC; 6A @ 220V AC
AC Frequency: 50 to 60 Hz
Management PowerView Pro included
Indicators:
System Indicator: AC Power (Green)
User Indicator: Channel Power (Green / Orange)
Connectors:
PoE ports and management port: Shielded RJ-45, EIA 568A and 568B
Console Port: USB Connector Type B
DC Connector: DC Block Terminal
RPS Com Connector: HD-D-sub-15
Specifications: 4 RJ-45 autosensing 10/100/1000 ports
2 RJ-45 dual-personality 10/100/1000 ports
1 RJ-45 serial console port
Power: 100-127 VAC / 200-240 VAC; 50 /60 Hz
Mounting:
MSM720 controller supports the mounting options of the 2520-8 port, including EIA-standard 19 in. Telco rack or equipment cabinet (rack-mounting kit included); horizontal surface or wall mounting.
Minimum dimensions (W x D x H): 15.95 x 25.4 x 4.45 cm
Weight: 1.64 kg
Form Factor:
Wall Mountable
Rack-mountable

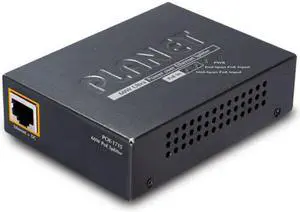

Specifications: Interface: Input Port:
1 x RJ-45 STP
PoE (Data + Power) In
Output Port
1 x RJ-45 STP
Data Out
DC Socket
DC Out
DIP-Switch
12V DC / 19V DC / 24V DC output voltage
LED Indicator:
System: Power x 1 (Green)
Network Cable:
Ultra PoE (60W): 10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328 ft.)
802.3af/at PoE (15W / 30W): 10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328 ft.)
Data Rate: 10/100/1000 Mbps
Power Requirements: 52 ~ 56V DC
Power Consumption: 50 watts (maximum)
Operating Temperature: 0 ~ 50 degrees C
Storage Temperature: -10 ~ 70 degrees C
Humidity: 5 ~ 95% (Non-condensing)
PoE Standard: IEEE 802.3at Power over Ethernet Plus
Power Output: DC 12V / 19V / 24V by DIP switch control
DC Plug connectors (Diameter):
2 external female plug cables:
5.5 / 2.5mm to 5.5 / 2.5mm
5.5 ...
