Specifications: VESA Compatible: 75mm and 100mm
Pivots for each monitor: 20 degree up/10 degree down
Holds monitors size: 17" to 24"
Holds monitors weight: up to 25 lbs.
Vertical pole: 28 degree
Specifications: Includes mouse pad, wrist rest, mouse pouch
+ Larger display sizes may inhibit the keyboard tray folding flat in storage position
Weight Capacity: Listed weight capacity represents total load, including both the monitor and contents of keyboard tray. Maximum monitor weight = 25 lbs (11.3 kg); monitor thickness greater than 3" (7.6 cm) may decrease capacity
Mounting Standards: VESA FDMI MIS-D, 100/75 (hole pattern: 100 x 100 mm & 75 x 75 mm)
Fold-down keyboard tray
Negative-tilt keyboard tray is adjustable 0° to -10°
Integrated cable management system can be configured on either side
Easy-to-clean exterior
Type: WorkFit C-Mod, Single Display Sit-Stand Workstation
Specifications: LCD Size: = 22"
Capacity: 5–18 lbs/2.3–8.1 kg
Lift: 25"/63 cm
Tilt: 25°
Rotation: 360° P/L
VESA: MIS-D
Includes cart, LCD pivot, integrated worksurface, keyboard tray with left/right mouse tray, wrist rest, mouse holder, cable storage box, CPU holder, four dual casters (two locking)
Lift Range: LCD/keyboard/worksurface adjusts 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Constant Force (CF) lift-and-pivot motion technology
CPUs attach safely to rear of cart with CPU Holder. Accommodates CPUs from 12"H x 3"D to 18"H x 8.5"D (30 x 8 cm to 46 x 22 cm)
CPU Holder capacity = 40 lbs (18 kg)
Ergonomic negative-t...
Specifications: Mounting Options: Attach through worksurface hole 3/8" to 3" (10 to 76 mm) wide and up to 3-1/4" (82 mm) thick. For maximum support, screw should be centered through hole

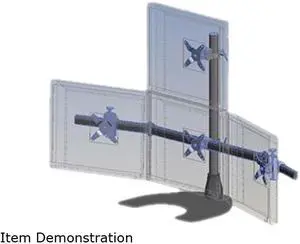

Works with DS100 Quad-Monitor Desk Stand
Specifications: Weight Capacity: 6–16 lbs (2.7–7.2 kg) for display; total stand capacity = 37 lbs (16.7 kg) for combined weight of display, CPU, keyboard and mouse
Motion may be restricted when using 22"–24" monitors in portrait mode
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Five-inch (13 cm) height adjustment ergonomically accommodates average range of users
Meets tip test requirements of UL Specification 1678 + Removal of lock screw allows portrait to landscape rotation (90°)
Compatible with most 15"–24" displays, and most small or ultra small form factor CPUs.
Maximum CPU size = 15"W x 14"H x 4.5"D (38 x 35.6 x 11.4 cm); minimum CPU size = 7"W x 7"H x 2"D (18 x 18 x 5.1 cm). Provided rubber spacer must be used to accommodate CPU depths of less than 3" (7.6 cm)
Moun...
Specifications: Wallmountable: No
Tools Included: Yes
Articulating: Yes
# of Displays Supported: 1
Mounting Options: Desk Clamp
VESA Hole Pattern(s):
75 x 75 mm
100 x 100 mm
Mounting Surface Thickness: Desk Clamp: Maximum Table Thickness of 85mm (3.3 in)
Maximum Arm Extension: 22.4 in
Laptop Arm Extension: 22.4 in
Display Tilt: -85° / +90°
Laptop Tray Tilt: 90° tilt from horizontal to vertical
Swivel / Pivot: -180° / +180°
Display Rotation: 360°
Specifications: Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
LCD Size: 30"
Capacity: 31 lbs
Rotation: 360° P/L
Attaches to Crossbar and Crossbar Extenders
Cannot be used as the Center Display Bracket when three displays are attached to Crossbar
Install displays with 4°-angle off-set : position them upward, inward or downward for optimized viewing conditions
Specifications: Weight Capacity: display = 6-18 lbs (2.7-8.2 kg), worksurface = 10 lbs (4.5 kg), keyboard, mouse and barcode scanner = 4 lbs (1.8 kg), CPU = 50 lbs (22.7 kg)
Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion, LCD adjusts 5" (13 cm) independently, maximum LCD height adjustment = 25" (64 cm)
Monitor up/down tilt: +25 degree /-5 degree
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Worksurface: 22.75"W x 10.6"D (57.8 x 26.9 cm)
Keyboard tray: 18.6"W x 9"D (47.2 x 22.8 cm)
Back-tilt keyboard tray adjustable: 0 degree to -10 degree
CPU Size Range: 1-3/8" to 3-3/4" (35 to 95 mm) wide, accommodates most small form factor and ultra small form factor CPUs
Product Weight: 39.6 lbs (18 kg)
