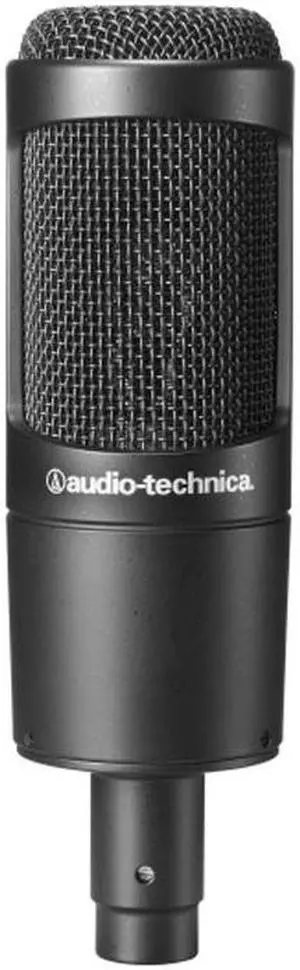

Specification: ELEMENT: Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN: Cardioid
FREQUENCY RESPONSE: 20-20,000 Hz
OPEN CIRCUIT SENSITIVITY: -37 dB (14.1 mV) re 1V at 1 Pa
IMPEDANCE: 100 ohms
MAXIMUM INPUT SOUND LEVEL: 144 dB SPL, 1 kHz at 1% T.H.D.
NOISE: 20 dB SPL
DYNAMIC RANGE (typical): 124 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 74 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 48V DC, 2 mA typical
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
Dimension: 6.38" (Long) x 2.05" (maximum body diameter)
Audio: Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Cardioid
Frequency Response: 20-20,000 Hz
Low Frequency Roll Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity: -33 dB (22.4 mV) re 1V at 1 Pa
Impedance: 120 ohms
Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D.; 158 dB SPL, with 10 dB pad (nominal)
Noise: 12 dB SPL
Dynamic Range: 136 dB, 1 kHz at Max SPL
Signal to Noise Ratio: 82 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11-52V DC, 3.8 mA typical
Switches: Flat, roll-off; 10 dB pad (nominal)
Output Connector: Integral 3-pin XLRM-type
Accessories: AT8458 shock mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
Audio-Technica Case Style: R5
