Features: 9U server rack, wall mount network cabinet, open frame rack, equipment rack, swing out server rack, hinged network rack, AV rack wall mount, heavy duty server shelf, data rack 9U, 18 inch deep rack.
Specification: Adjustable Mounting Rails: Yes
Adjustable Size of Built-in Leveling Feet: 100 mm [3.94 in]
Back Door Construction: Steel Mesh
Back Door Key Lock: Yes
Back Door Reversible and / or Removable: No
Cable Management: Yes Cable Access Covers
Casters: Included
Fan(s): No
Frame Type: Enclosed Cabinet
Front Door Construction: Steel Mesh
Front Door Key Lock: Yes
Front Door Reversible and / or Removable: Reversible, Removable
Industry Standards: EIA-310-D
Ladder Offset: 0.4 in [10 mm]
Ladder Type: G-Shape
Mounting Holes: Square

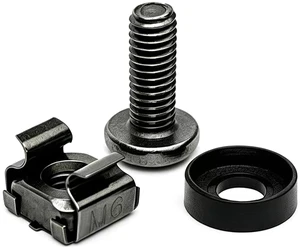

Number and Type of Included Cage Nuts: 50 - M6
Side Panel Construction: Solid Steel
Side Panel(s) Key Lock: Yes
Side Panels Reversible and / or Removable: Removable
Style: Floor-Standing
U Markings: Yes
Wallmountable: No
Height...
Specification: Industry Standards: EIA-310-D
Ladder Offset: 0.4 in [10 mm]
Ladder Type: G-Shape
Mounting Holes: Square
Number and Type of Included Cage Nuts: 60 - M6
Style: Wall-Mount
U Markings: Yes
Wallmountable: Yes
External Depth 12.2 in [310 mm]
External Height 30.5 in [77.5 cm]
External Width 19.9 in [50.5 cm]
Internal Depth 11.5 in [29.2 cm]
Internal Height 26.3 in [66.8 cm]
Internal Width 18.3 in [46.5 cm]
Specification: Rail OEM: All Purpose
Server Compatibility: Apple, Dell, HP and IBM
Rack Type:
Mounts in any type of 4Post rack
2Post versions are also available
Hole Type:
Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
Rail Type: Fixed
Mounting Depth Range: 0" to 31.75" (0 mm to 806.5 mm)
Equipment Width:
Maximum: 17.625 (448 mm)
1U Minimum: 16.625" (422 mm)
Equipment Depth:
The rack rails support flange is 23 1/2" (597 mm) long.
The rack rail will support servers computers or equipment up to 35" (889 mm) deep.
Overall Installation Depth: Maximum overall depth is the same as th...
