Specifications: Application: For Digital-RGB equipped Cases, Controllers and Motherboards. (+5V, Data, NA, GND)
Color: Full RGB color spectrum
Connections:
Input: Phanteks 3-pin (female) connector
Output: Phanteks 3-pin (male) connector
M/B Adapter: Digital RGB adapter 3pin (+5V,Data,NA,GND)
Input Voltage: +5V
Current (Single strip): Max. 0.84A
Current (Dual Strip): Max. 1.68A
Wattage (Single strip): Max. 4.2W
Wattage (Dual Strip): Max. 8.4W
Cable compatibility: For Phanteks Digital-RGB LED system, For M/B Only with Digital-RGB Pin Header (+5V,DATA,NA,GND)
LED Color/ Controller: KS6812, Full Color Digital-RGB LED Chip
LED Number: 28 LEDs (400mm NEON Digital-RGB LED Strip)
MTBF: 20,000 hrs
Product Dimensions: 400 x 13 x 5.5mm (15.7 x 0.5 x 0.2in)
Scope of Delivery:
2 x 400mm (15.7in)...
Specifications: Dimensions: 2.91" x 0.59" x 2.52" (WxHxD)
Weight: 0.14 lbs.
Mounting: Magnet / Velcro
Control Method: NZXT CAM software
Connections:
Internal-USB Cable - x1
SATA Power Cable - x1
Fan Splitter Cables - 3x 1 to 3 split
Input Connector: 12V DC / 2.6A
Output Channel Voltage: 5V DC
Output Channels:
2 x RGB Lighting Channels
3 x Fan Channels
LED Color: RGB
LED Modes: Preset, Smart, Custom, Audio, Game
Included Accessories:
2 x Magnet
2 x 3M Velcro
Specifications: Type: 5V 3pin ARGB LED strip LED strip length: 3.3ft LED numbers: 60 LEDs ARGB cable length: 1.64ft Installation: by double side adhesive
Specifications: Unit Dimension: 15.50 x 69.00 x 133.00mm
Power Input:
Logic: 2.97V to 3.63V, 4.5V to 5.5V
Fan: 11.4V to 12.6V
RGB LED: 4.5V to 5.5V
Cable:
USB: 440mm
SATA Power: 465mm
Thermal sensor: 610mm
Fan extension: 300mm
RGB LED channels: Two 2-pin connector
Max. RGB LED strip per channel: 4
Max. RGB fan per channel:6 through 1 RGB LED hub

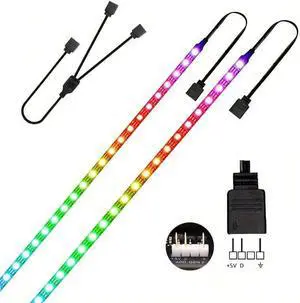

Specifications: Strip Length:19in per strip
Input Voltage:DC 5V Only support DC5V ,don't support DC12V
Waterproof Grade:IP30
Double-sided adhesive
Powered by 5V 3-pin RGB header on your computer motherboard
Please make sure it is 3-PIN RGB header on your computer motherboard before you buy this PC strip kit.
Specifications: Strip Length:19in per strip
Input Voltage:DC 5V Only support DC5V ,don't support DC12V
Waterproof Grade:IP30
Double-sided adhesive
Powered by 5V 3-pin RGB header on your computer motherboard
Please make sure it is 3-PIN RGB header on your computer motherboard before you buy this PC strip kit.
Specifications: Chassis Support: For Phanteks NV9 Chassis
Materials: ABS Plastic, PC Plastic
D-RGB Controller Output: 7A
Product Dimension: 150.9 x 80 x 16.4mm / 5.94 x 3.14 x 0.64in
Specifications: Chassis Support: For Phanteks NV7 Chassis
Materials: ABS Plastic, PC Plastic
D-RGB Controller Output: 7A
Product Dimension: 150.9 x 80 x 16.4mm / 5.94 x 3.14 x 0.64in
Specifications: Chassis Support: For Phanteks NV9 Chassis
Materials: ABS Plastic, PC Plastic
D-RGB Controller Output: 7A
Product Dimension: 150.9 x 80 x 16.4mm / 5.94 x 3.14 x 0.64in
Specifications: Chassis Support: For Phanteks NV7 Chassis
Materials: ABS Plastic, PC Plastic
D-RGB Controller Output: 7A
Product Dimension: 150.9 x 80 x 16.4mm / 5.94 x 3.14 x 0.64in
Specifications: Rated current: 1.25A
Rated voltage: 5V
Data connection: USB 2.0 9-pin
Power input: SATA
Compatible CORSAIR iCUE controller:
COMMANDER CORE XT
Commander PRO
Lighting Node PRO
Specifications: Material: Plastic outer shell
Output limitation (each port):
Addressable RGB port: 72 LED per port, total 5V, 5A
Fan Port : total 12V, 3A
Color Selection: Support 2812 IC Addressable RGB LED
Signal output:
Standard Addressable RGB 3pin + 4-1pin x 6*
Fan 4pin port x 4 (compatible with 3pin)
Included Parts:
6 x Standard Addressable RGB cable
1 x Peripheral power Y cable
1 x RF remote
1 x Thermal sensor cable
1 x Power switch cable
Specifications: Material Plastic Shell
Signal input:
Standard addressable RGB 3Pin +5V, D, G*
Motherboard addressable RGB 4pin +5V, D, NP, G*
Signal output: SilverStone custom addressable RGB 3pin +5V, D, G** x 8
Power Input: SATA 15pin
Output limitation (each port): 5V 9A (4.5A+4.5A)***
Included Parts:
8 x Standard addressable RGB 3pin cable
1 x SATA power cable
1 x Input signal cable
