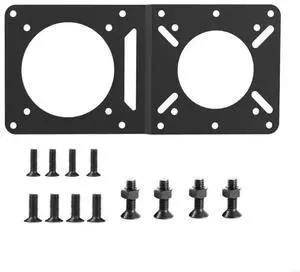

Specifications: VESA Hole Pattern(s): 75x75 mm / 100x100 mm
Material: Steel
Included in Package:
1 x VESA Mounting Bracket
4 x M3-0.5 x 5 mm Countersunk Screws
4 x M4 x 12 mm Screws
4 x M4 x 20 mm Screws
4 x Plastic Spacers
1 x Quick-Start Guide
Note: When mounting the adapter (recessed): the screws and spacers provided will allow you to mount to a VESA pattern on the back of the monitor that is recessed, to a maximum of 7 mm. If the recessed area is deeper than 7 mm, you will need to use longer screws than those provided.

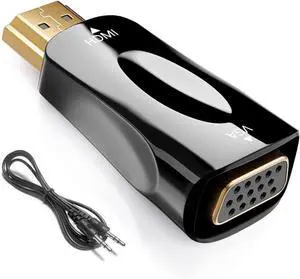

Specifications: Supports HDMI Standard Norm
Complaint with HDMI 1.4 specification
Analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate.
Supports VESA and CEA timing standards up to WUXGA 1920x1200@60MHz and 1920x1080@60MHz.
On-chip encoder supports 2 channel IIS/S/PDIF audio output
Integrated EDID buffer
VGA/HDMI connection detection supported
Supports Auto Power Saving mode and low stand-by current
Supports Audio via Jack Stereo Cable
Plug and Play, Driverless Installation
Device is 10.3in Long (Cable is 6.5in)
Audio Cable is 18.4in Long
Movable: Adjustable up to 15 degree of forward tilt and -5 degree backward tilt for optimal viewing angle
Horizontal screen adjustment of up to 8" (depending on screen model) for perfect screen placement
VESA Compatible: 200 X 100, 200 X 200, 300 X 300 and 400 X 400
Feature: Compatible with VESA mounting hole patterns from 200 x 100 up to 400 x 400mm
Adapter plate compatible for VESA patterns larger than 400 x 400mm
Display can be mounted in portrait or landscape
Continuous tilt options from 0 dgree-10 dgree or fixed at 0 dgree, 3.5 dgree and 7 dgree
Accommodates media players up to 12" x 13" x 2.4"
The media player can be removed from the bottom if replacement, repair or maintenance is necessary without having to remove the display
Included security hardware deters tampering and loss
Feature: Includes universal adapter plate for mounting holes up to 28.75 W x 17.05H
Pull-out swivel with up to 45° rotation depending on screen size
Locking tab provides optional swivel restriction to one side
3.4" deep in closed position, up to 11.9" fully extended
0°, 5° or 10° lockable incremental tilt
+/-1° roll for horizontal screen alignment during installation
Built-in cord management
Lock Key™ installation tool secures arms for screen installation
Lock-out screw prevents unwanted extension
Mounts to 16" wood studs, concrete, cinder block
Includes mounting and screen attachment hardware
Specifications: Chipset ID: MCT - Trigger 1+
Memory: 16MB SDRAM
USB Pass-Through: No
General Specifications: This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.
Supported Resolutions: Standard (1600 x 1200, 1400 x 1050, 1280 x 1024, 1280 x 960, 1152 x 864, 1024 x 768, 800 x 600) / Widescreen (1680 x 1050, 1440 x 900, 1280 x 800, 1280 x 768, 1152 x 864, 800 x 600)
Connector A: 1 x USB Type-A (4 pin) USB 2.0 Male Input
OS Compatibility: Windows 10 (32/64) / Windows 8 / 8.1 (32/64) / Windows 7(32/64) / Windows Vista (32/64) / Windows XP (32/64)
System and Cable Requirements: One available USB 2.0 port
