VESA Compatible: 700x400/ 684x300/ 600x400/ 500x300/ 400x400/ 400x300/ 400x200/ 300x300/ 300x200/ 200x200 or any hole patterns within 200-700mm wide and 200-400m high
VESA Compatible: 600x400 /600x300 /500x300 /400x400 /400x300 /400x200 /300x300 /300x200 /200x200 /200x100mm or any hole patterns within 200-600mm wide and 100-400mm high
Movable: Adjustable up to 15° of forward tilt and -5° backward tilt for optimal viewing angle
Optional IncreLok feature offers fixed tilts at -5°, 0°, 5°, 10°, 15° increments screen placement
Horizontal screen adjustment of up to 8" (depending on screen model) for perfect screen placement
VESA Compatible: 200x100/ 200x200/ 300x200/ 300x300/ 400x200/ 400x300/ 400x400/ 500x300/ 600x200/ 600x300/ 600x400 or any holes pattern within 200-620mm wide and 100-400 high
Movable: Tilt 15° forward or 5° backward, Swivel 180°, Rotate 10°, Extend up to 16"
TV Weight Capacity: Max. load 135 lbs.
VESA Compatible: 600x400/ 500x300/ 400x400/ 400x300/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole pattern within 200 - 600mm wide and 100 - 400mm high
VESA Compatible: 684x400/ 684x300/ 600x400/ 500x300/ 400x400/ 400x300/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole patterns within 200-684mm wide and 100-400mm high

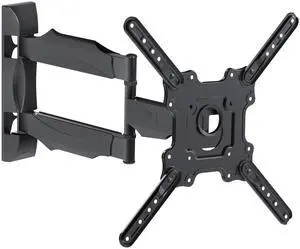

Specifications: # of Displays Supported: 1
Articulating: No
Cable Management: Yes
Mounting Options: Wall-Mount
VESA Hole Pattern(s): 75x75 mm / 100x100 mm
Display Pan: +180° / -180°
Display Rotation: 360°
Display Tilt: +90° / -15°
Height Adjustment: No
Maximum Arm Extension: 10.2 in [260 mm]
Maximum Display Size: 30in
Minimum Display Size: 13"
Weight Capacity (Per Display): 30.9 lb [14 kg]
Swivel / Pivot:
+180°/-180° at the wall
360° at the elbow
Included in Package:
1 x Wall Mount
1 x Swivel Arm
1 x Monitor Mount
1 x M3 Hex Key
4 x Thumb Screws
2 x Wall Plugs
2 x Mounting Screws
1 x User Manual
