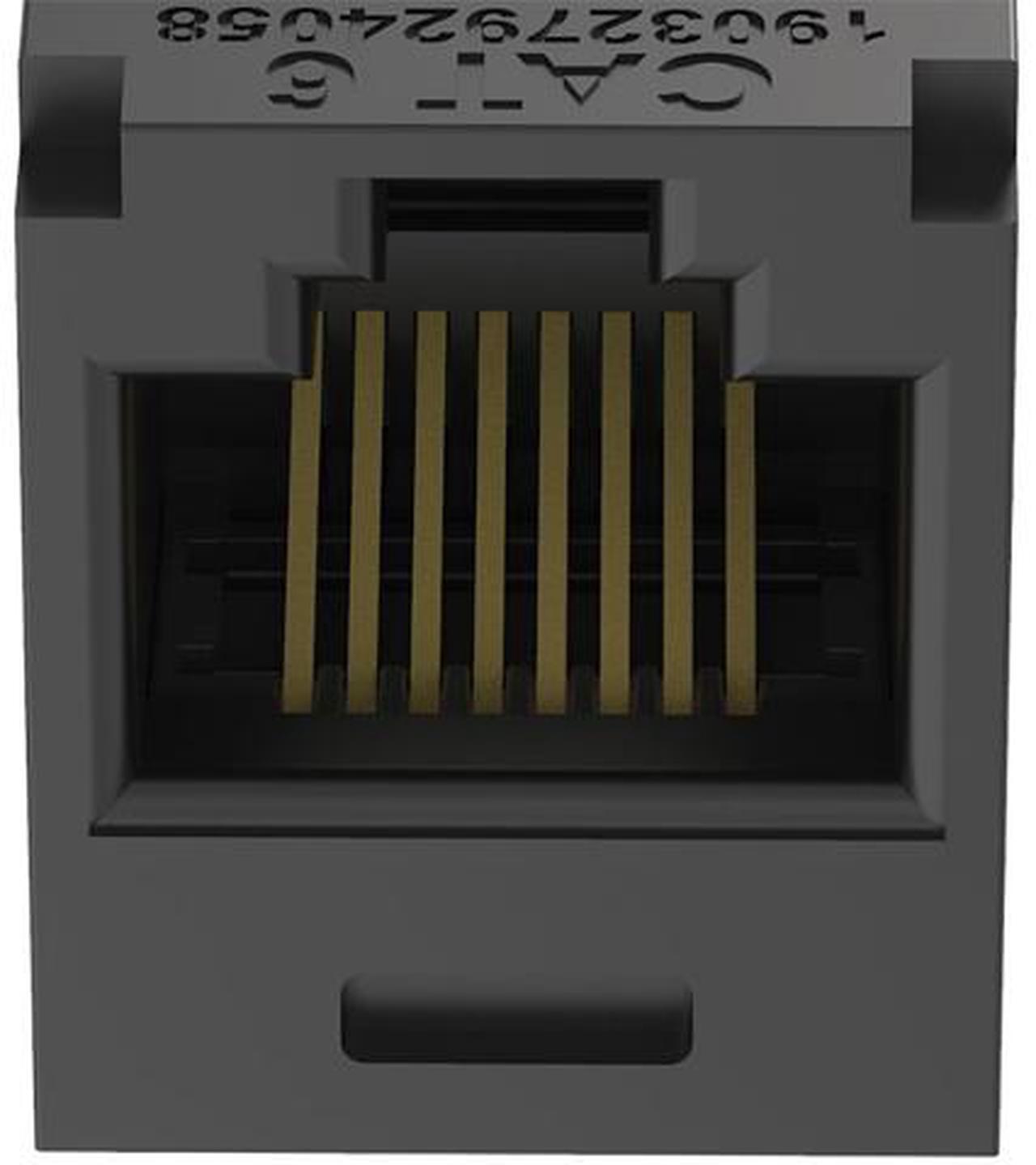

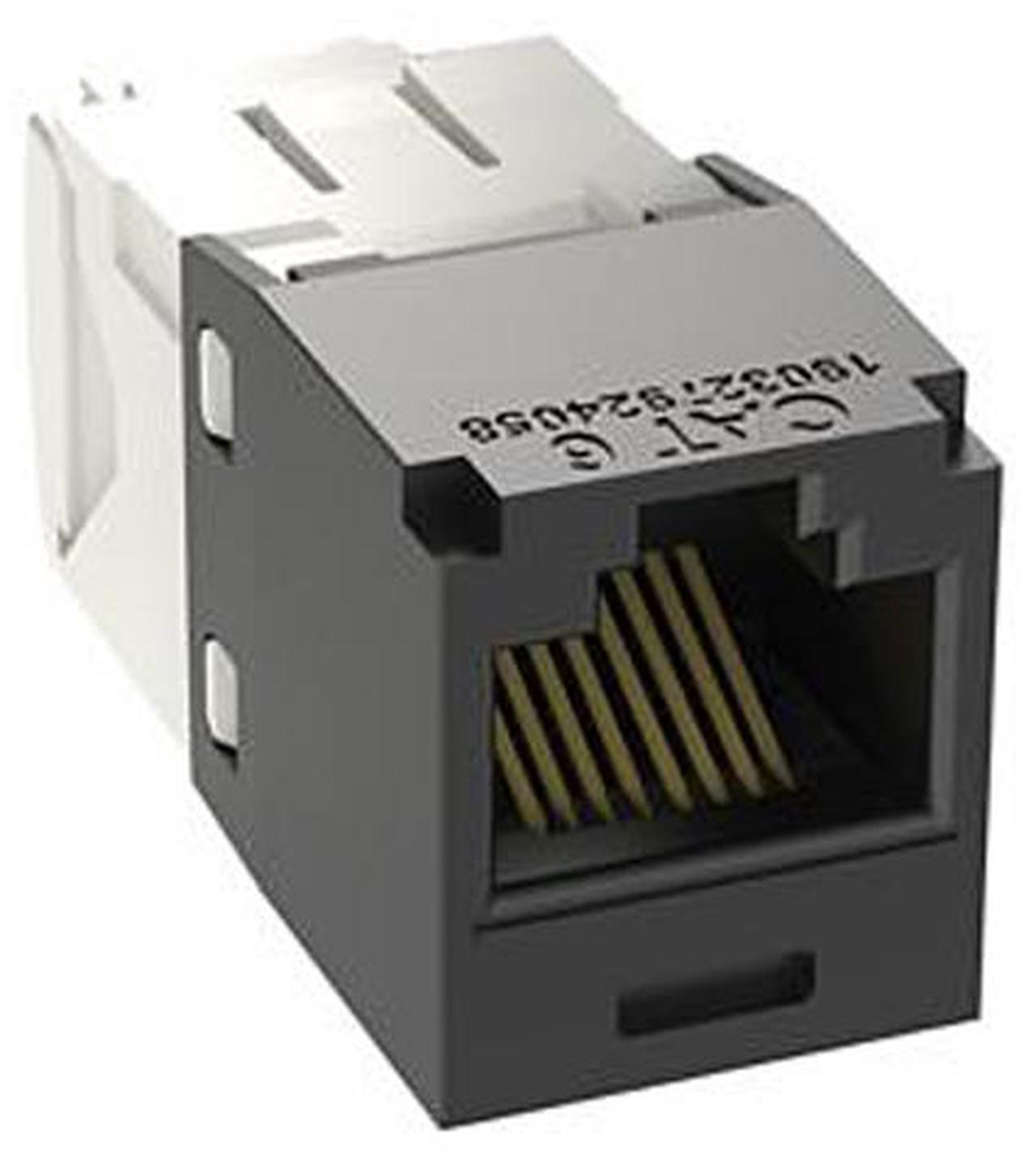

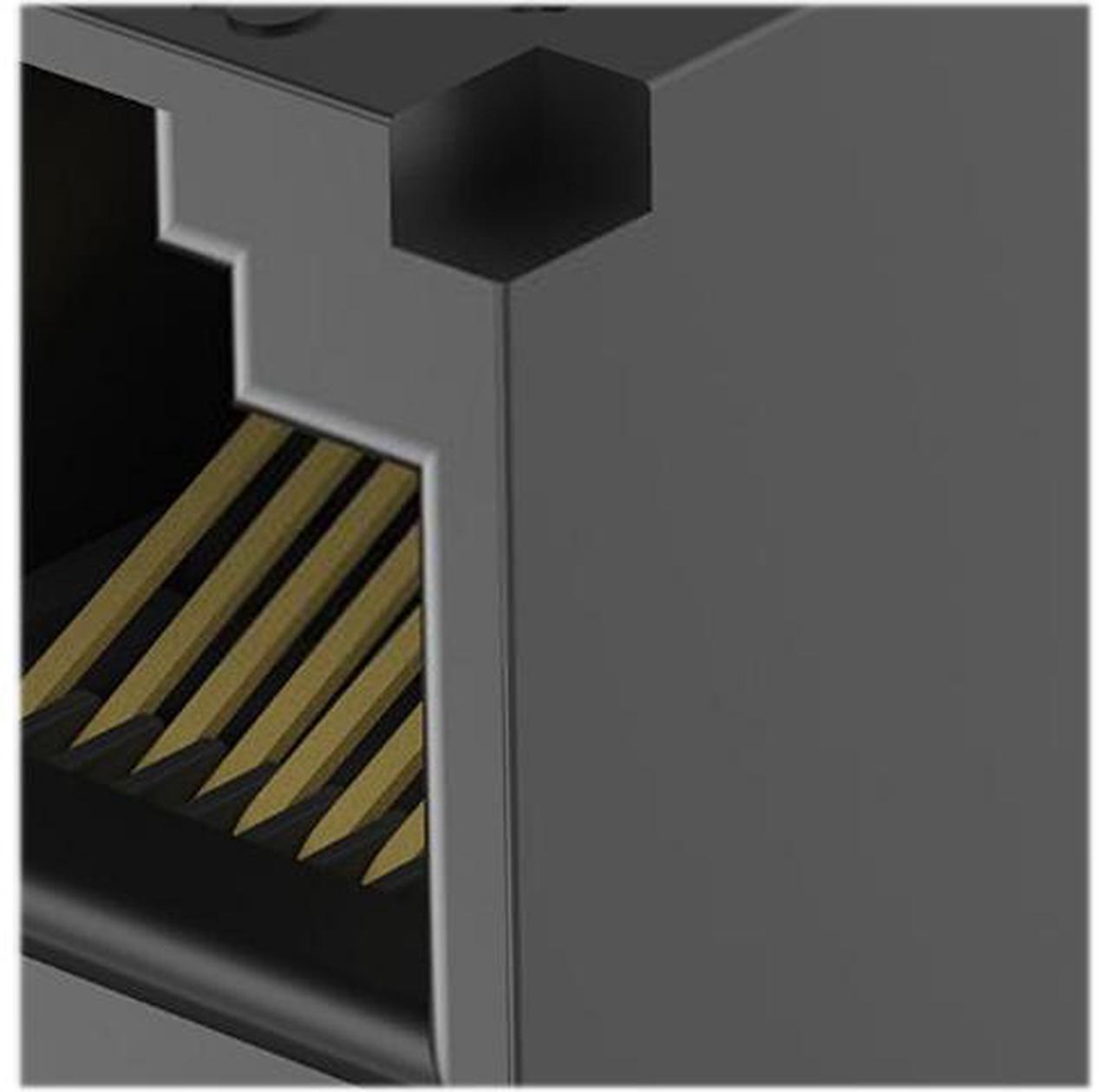

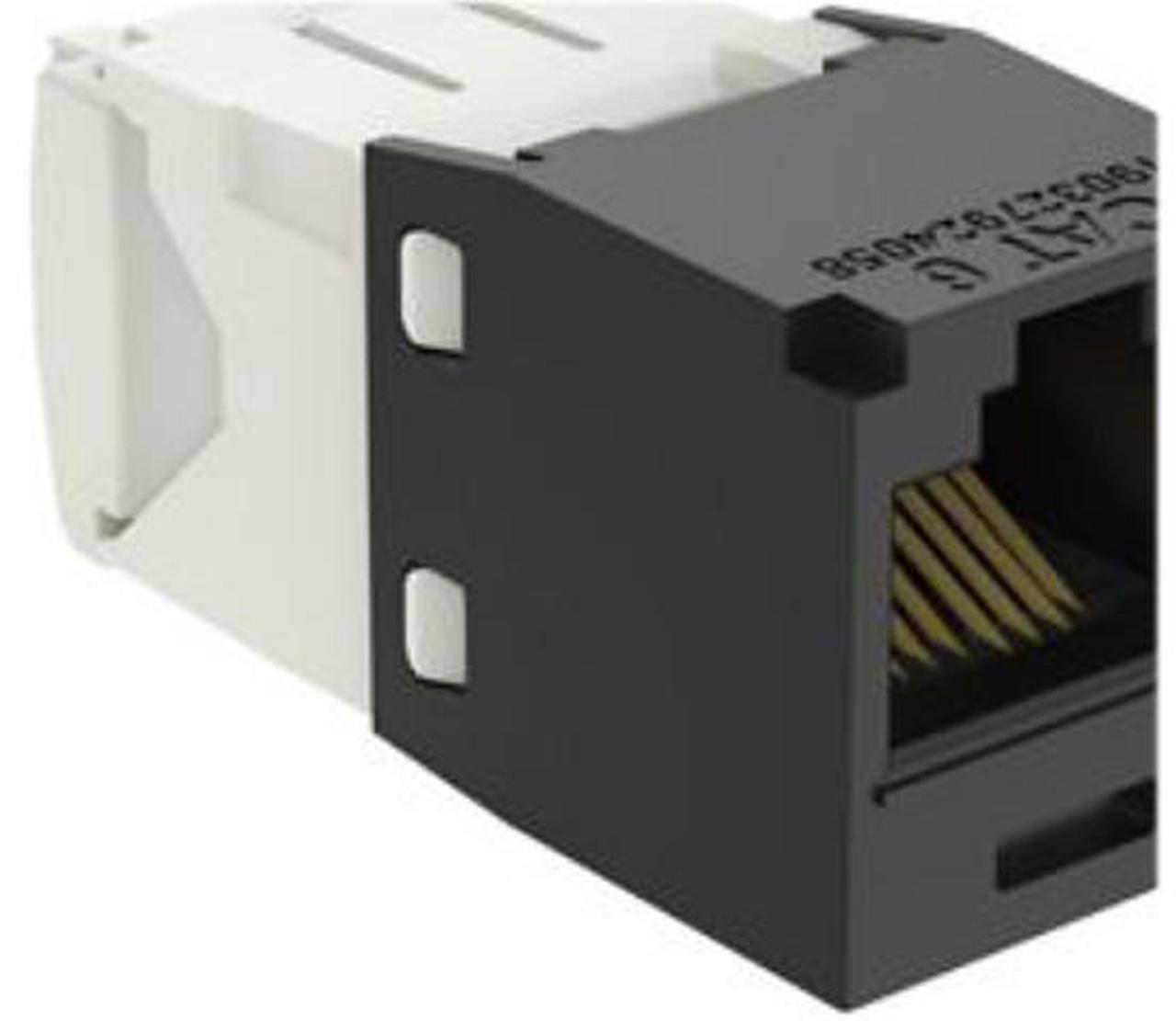

Panduit CJ688TGBL-24 Mini-Com UTP RJ45 Cat 6 TG Jack Module, Black, 24-pack
- CJ688TGBL-24
+
+
Learn more about the Panduit CJ688TGBL-24
| Brand | Panduit |
|---|---|
| Model | CJ688TGBL-24 |
| Color | Black |
|---|---|
| Type | Jack Module |
| Specifications | Performance Level: Category 6 Termination Style: TG Style Body Material : ABS Contact Material: Plated Phosphor Bronze Module Type: Mini-Com Wiring Scheme: T568A/T568B Shield Type: Unshielded (UTP) Sub Brand: Pan-Net Maximum Operating Temperature (°C): 65 Maximum Operating Temperature (°F): 149 Minimum Operating Temperature (°C): -10 Minimum Operating Temperature (°F): 14 Maximum Storage Temperature (°C): 70 Maximum Storage Temperature (°F): 158 Minimum Storage Temperature (°C): -40 Minimum Storage Temperature (°F): -40 Resistance Properties: Heat-Resistant Standards Met: Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Complaint RoHS Compliant: Yes Overall Depth (In.): 1.5 Overall Height (In.): 0.71 Overall Length (In.): 1.5 Overall Width (In.): 0.62 |
| Features | The Mini-Com Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is black and includes 24 per package. |
|---|
| First Listed on Newegg | July 21, 2022 |
|---|
