$1,023.99
Ships from China.
Meet Your Seller

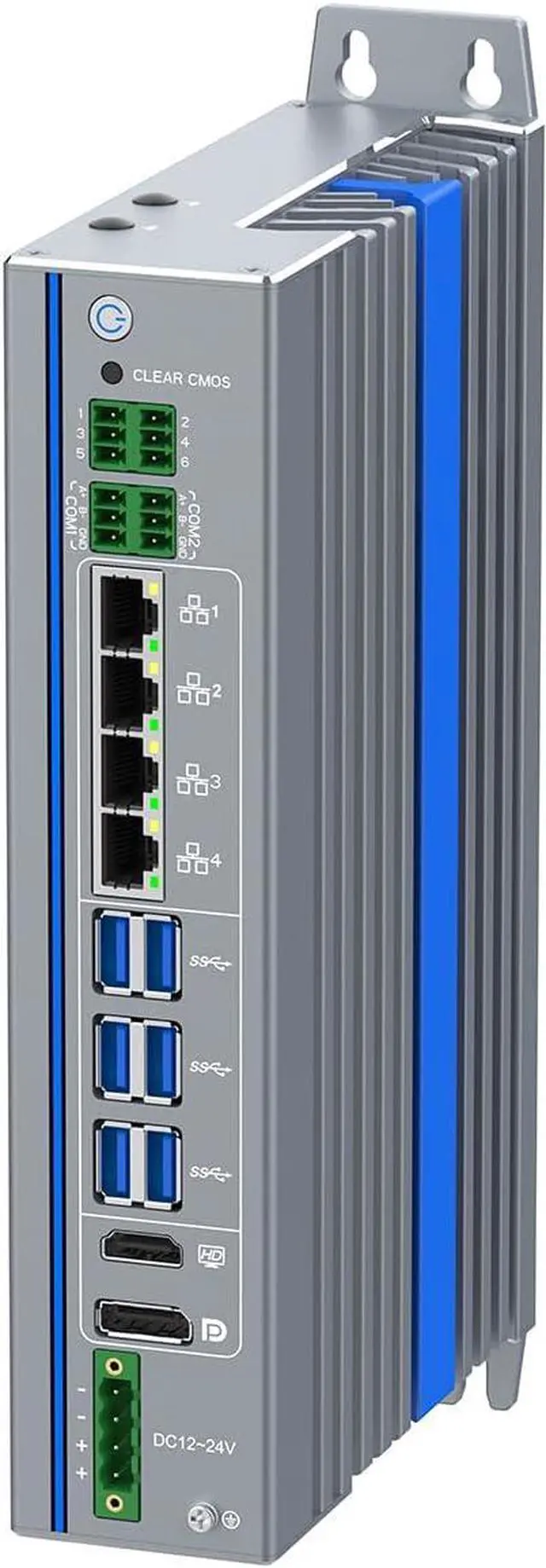

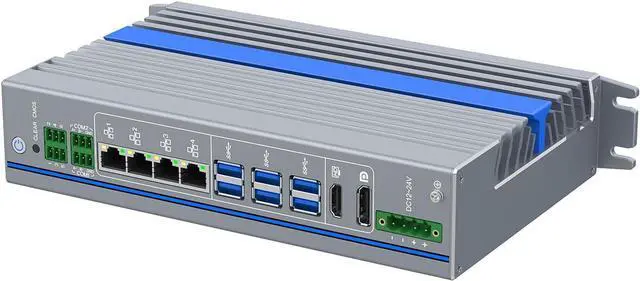

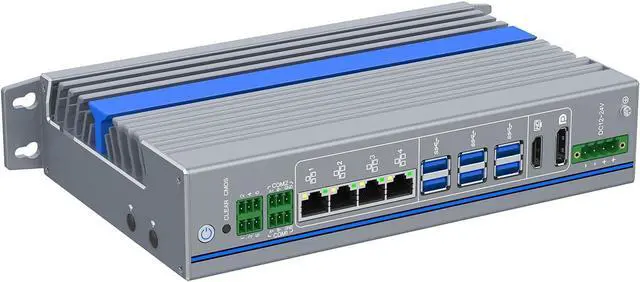

Partaker Book-Style Industrial PC, Fanless Mini PC, I3 12300T, I24, 4 x LAN, 2 x RS485 Optical Isolation, DP, HDMI, 6 x USB3.0, 16G RAM, 256G SSD
- Fanless all-aluminum body for harsh environments. Passive cooling, no moving parts, dust-proof. -20°C~50°C, 5%~95% humidity. Ideal for 24/7 industrial automation, medical, logistics.
- Powerful desktop-grade processor (4C/8T, up to 4.2GHz) + dual DDR5 4800MHz SODIMM slots, max 64GB. Handles multitasking, edge computing, real-time control.
- Quad Gigabit Ethernet (3 high-performance + 1 management), 6x USB3.0, 2x COM (RS485 default, opt. isolation). Internal: M.2 2280 (NVMe/SATA), mSATA, Mini PCIe (4G/WiFi), plus Nano SIM slot.
- Dual 4K ultra-HD outputs (both 3840x2160 @60Hz). One standard digital AV + one high-performance display connector. Perfect for surveillance, medical imaging, or industrial HMI.
- Flexible DC 12V~24V input (Phoenix terminal). Desktop default, optional wall mount or DIN rail. Features wake-on-LAN, PXE boot, watchdog (0-255), TPM2.0. Reliable for harsh electrical environments.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker I24
Material: Aluminum
CPU: Core I3 12300T Processor 12M Cache, up to 4.20 GHz
Chipset: H610
Memory: 2 x SODIMM Up to DDR5 4800 MT/s, MAX. 64GB
Storage: 1 x M. 2 2280 M-Key NVME/SATA X1 SSD, mSATA SSD
Network: 3 x I210-AT Gigabit LAN, 1 x I219-LM Gigabit LAN
Expansion: 1 x Full Length Mini PCIE slot for WiFi/4G, with Nano SIM slot
Optional Expansion: CAN, 4G, WIFI/BT module etc
I/O Port: Power Switch, Clear CMOS, Switch Signal for Remote Switch and Power Supply Indicator Light, 2 x RS485 Optical Isolation, 4 x LAN, 6 x USB 3.0, HDMI, DP, DC_IN 12-24V 4-pin Phoenix Terminal
Power: DC100-240V AC/50-60hz, 12V10A
Operating Temperature: -20°C ~ +50°C, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 265 x 146 x 50mm
Weight: 2.21 kgs
TDP: 35-69W
Cooling system: Fanless
Packing List: Partaker I24 book-style industrial computer, power supply, power cord, book-style mount, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level, TPM 2.0 security encryption

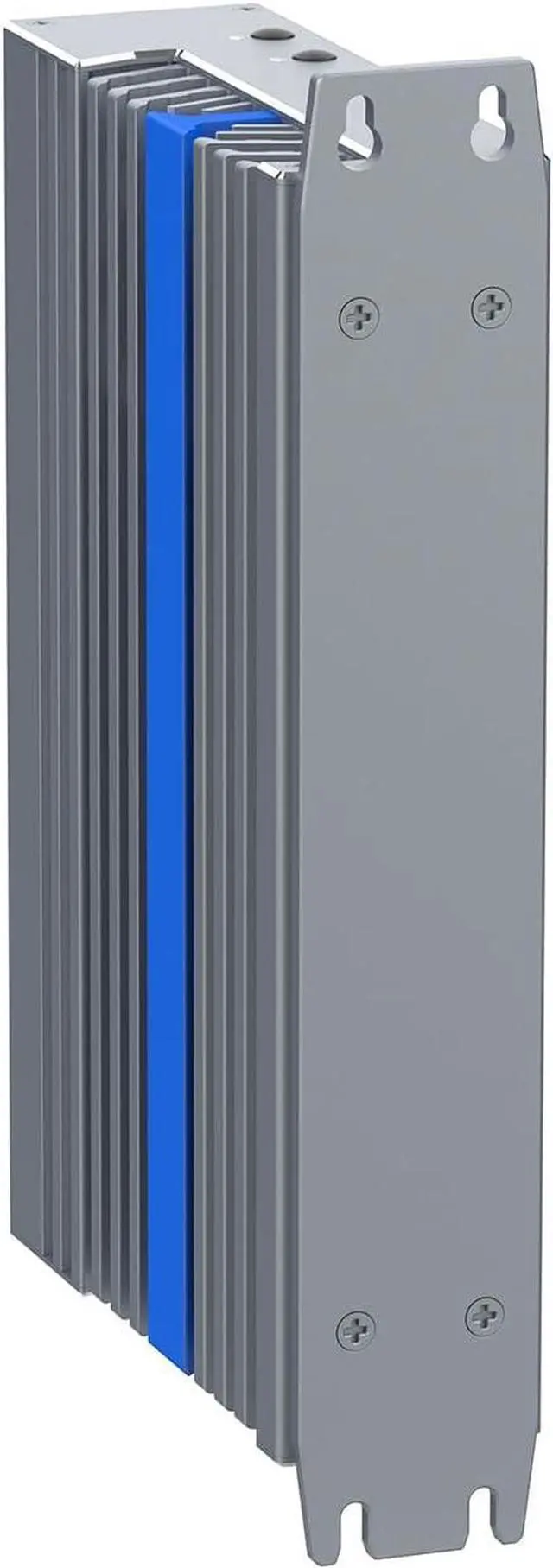

Installation: Supports Desktop, Din Rail, Book-Style vertical flat wall-mounted and other fixing methods, default as book style wall mount method,
if need Din Rail, please leave us message after order placed, thanks.
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
Application: Industrial automation, medical care, logistics andtransportation, warehousing, electronic education and other fields.
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.
Material: Aluminum
CPU: Core I3 12300T Processor 12M Cache, up to 4.20 GHz
Chipset: H610
Memory: 2 x SODIMM Up to DDR5 4800 MT/s, MAX. 64GB
Storage: 1 x M. 2 2280 M-Key NVME/SATA X1 SSD, mSATA SSD
Network: 3 x I210-AT Gigabit LAN, 1 x I219-LM Gigabit LAN
Expansion: 1 x Full Length Mini PCIE slot for WiFi/4G, with Nano SIM slot
Optional Expansion: CAN, 4G, WIFI/BT module etc
I/O Port: Power Switch, Clear CMOS, Switch Signal for Remote Switch and Power Supply Indicator Light, 2 x RS485 Optical Isolation, 4 x LAN, 6 x USB 3.0, HDMI, DP, DC_IN 12-24V 4-pin Phoenix Terminal
Power: DC100-240V AC/50-60hz, 12V10A
Operating Temperature: -20°C ~ +50°C, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 265 x 146 x 50mm
Weight: 2.21 kgs
TDP: 35-69W
Cooling system: Fanless
Packing List: Partaker I24 book-style industrial computer, power supply, power cord, book-style mount, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level, TPM 2.0 security encryption
Installation: Supports Desktop, Din Rail, Book-Style vertical flat wall-mounted and other fixing methods, default as book style wall mount method,
if need Din Rail, please leave us message after order placed, thanks.
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
Application: Industrial automation, medical care, logistics andtransportation, warehousing, electronic education and other fields.
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.
