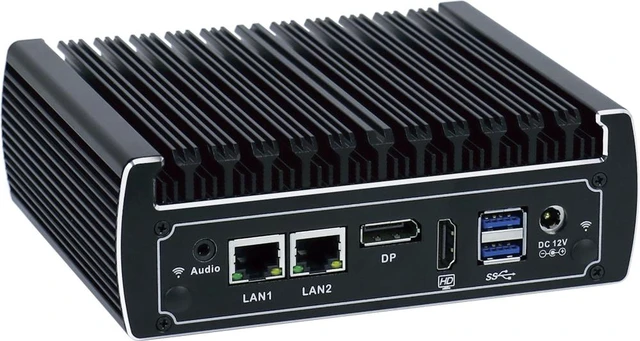

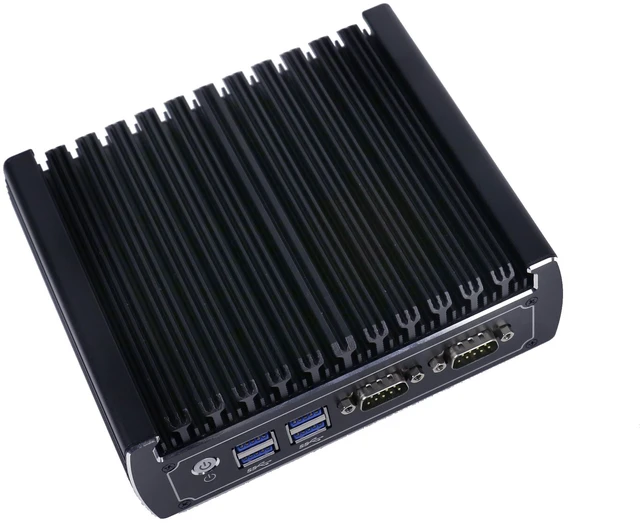

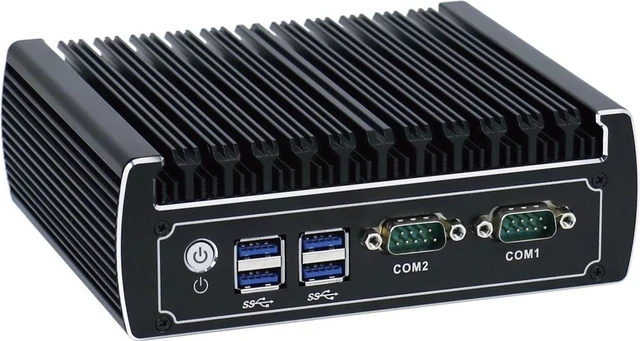

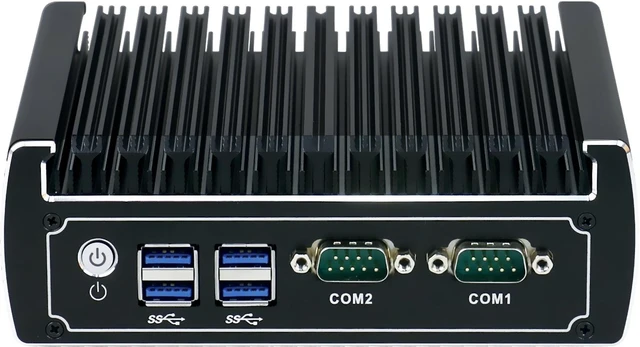

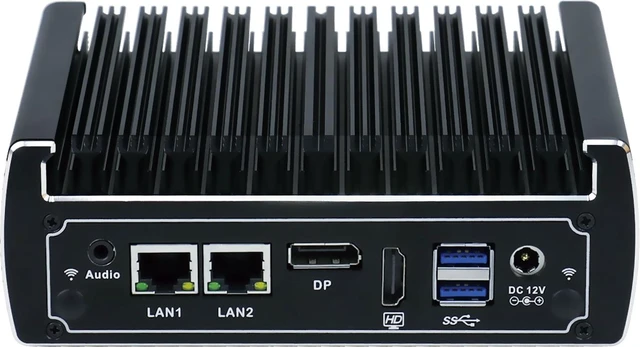

Partaker Industrial Computer, Fanless Mini PC, I3 8130U, B9, 2 x LAN, DP, HD, 6 x USB, 2 x COM, 8G RAM, 128G SSD
- Fanless industrial PC with onboard dual-core 8130U processor (2.2GHz, up to 3.4GHz, 15W TDP), delivering reliable performance for automation, medical, and logistics applications.
- Supports up to 16GB DDR4 memory, 1x M.2 2280 (PCIe x4/SATA), and 1x 2.5" SATA storage for flexible storage options.
- Rich I/O includes 4x USB 3.0, 2x USB 2.0, 2x Gigabit LAN, 2x COM (optional), 1x DP, and 1x additional display output, plus audio and DC 12V input.
- Expansion options include 1x M.2 2280, 1x Mini PCIe for WiFi/3G/4G with SIM slot, supporting desktop, DIN rail, and VESA mounting.
- Rugged aluminum alloy chassis with wide temperature range (-10°C to +50°C), CE/FCC/RoHS certified, and advanced features like auto power-on, wake-on-LAN, PXE boot, and watchdog.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Model Number: Partaker B9
Material: Aluminum alloy + sheet metal structure, fanless design
CPU: Intel Core i3-8130U (Dual core, 2.2GH z, Turbo 3.4GH z, TDP 15W)
Memory: 1 x SODIMM DDR4 2400/2666MHz (4GB/8GB/16GB), MAX. 16GB
Storage: 1 x M. 2 2280 slot, 1 x 2.5 inch SATA HDD/SSD
Network: 2 x RJ45 Gigabit Ethernet (1000M)
Expansion: 1 x M. 2 2280 slot (compatible with PCIe x4 and SATA signal); 1 x Mini PCIe (WiFi/3G/4G optional) with SIM slot on rear plate
I/O Port: 4 x USB 3.0, 2 x USB 2.0, 1 x Power Switch, 2 x COM (optional, can be removed), 2 x RJ45, 1 x HDMI, 1 x DP, 1 x Audio (2-in-1), 1 x DC 12V Port
Display: 1 x DP, 1 x HDMI (supports synchronous or asynchronous dual display)
Power Supply: DC 12V input
Operating Temperature: -10°C ~ +50°C (Commercial HDD), -20°C ~ +50°C (Industrial SSD), surface air flow
Working Humidity: 5% ~ 95% non-condensing
Size: 155 x 126.5 x 52.5 mm
Weight: 1.6 kg
Cooling system: Fanless
Function: Auto power on when power is restored, Timing boot, Wake on LAN, PXE boot, Watchdog (0255 levels) standard version does not set these functions
Packing List: Fanless PC, power adapter, power cord, VESA mount, warranty card
System Support: Windows 10/11, Linux Ubuntu
System Default Option: Windows 11 Pro in English
Application: Industrial Automation, Medical, Logistics & Transportation, Warehousing, Electronic Education, etc.
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.
Material: Aluminum alloy + sheet metal structure, fanless design
CPU: Intel Core i3-8130U (Dual core, 2.2GH z, Turbo 3.4GH z, TDP 15W)
Memory: 1 x SODIMM DDR4 2400/2666MHz (4GB/8GB/16GB), MAX. 16GB
Storage: 1 x M. 2 2280 slot, 1 x 2.5 inch SATA HDD/SSD
Network: 2 x RJ45 Gigabit Ethernet (1000M)
Expansion: 1 x M. 2 2280 slot (compatible with PCIe x4 and SATA signal); 1 x Mini PCIe (WiFi/3G/4G optional) with SIM slot on rear plate
I/O Port: 4 x USB 3.0, 2 x USB 2.0, 1 x Power Switch, 2 x COM (optional, can be removed), 2 x RJ45, 1 x HDMI, 1 x DP, 1 x Audio (2-in-1), 1 x DC 12V Port
Display: 1 x DP, 1 x HDMI (supports synchronous or asynchronous dual display)
Power Supply: DC 12V input
Operating Temperature: -10°C ~ +50°C (Commercial HDD), -20°C ~ +50°C (Industrial SSD), surface air flow
Working Humidity: 5% ~ 95% non-condensing
Size: 155 x 126.5 x 52.5 mm
Weight: 1.6 kg
Cooling system: Fanless
Function: Auto power on when power is restored, Timing boot, Wake on LAN, PXE boot, Watchdog (0255 levels) standard version does not set these functions
Packing List: Fanless PC, power adapter, power cord, VESA mount, warranty card
System Support: Windows 10/11, Linux Ubuntu
System Default Option: Windows 11 Pro in English
Application: Industrial Automation, Medical, Logistics & Transportation, Warehousing, Electronic Education, etc.
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.
