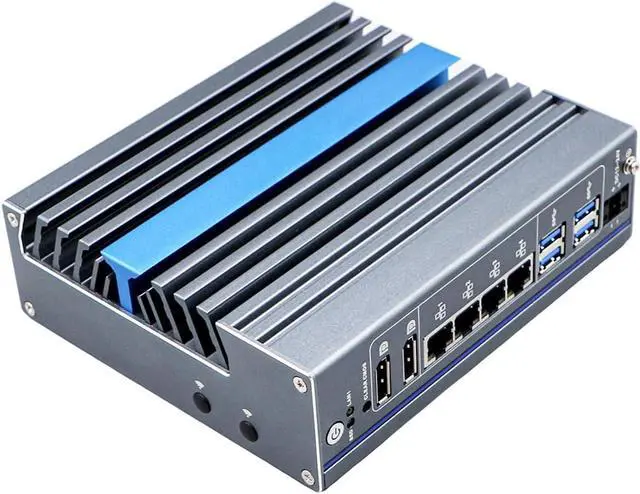

Partaker Book-Style Industrial Computer, Fanless Mini PC, I5 1235U, I19, 2 x DP, 4 x LAN, 12-24V 4-pin Phoenix, Vpro Support, 8G RAM, 128G SSD
- Fanless & Durable Design All-aluminum alloy structure with fanless cooling, ideal for harsh industrial environments. Operates reliably from -20°C to +60°C with 5%~95% humidity.
- High Performance Powered by i5-1235U processor (10 cores, 12 threads, up to 4.4GHz). Dual DDR5 4800MHz SODIMM slots support up to 64GB RAM for demanding tasks.
- Versatile Storage & Expansion One M.2 2280 slot (SATA & NVMe PCIe x1), one mSATA slot, and one full-length Mini PCIe slot (PCIe + USB 2.0 signals) for 4G/WiFi/BT, plus internal Nano-SIM slot.
- Quad LAN & Dual 8K Displays Four Gigabit Ethernet ports (one with vPro remote management). Two DP ports support synchronous/asynchronous dual displays up to 7680x4320 @60Hz each.
- Industrial I/O & Power Four USB 3.0 ports, optional dual COM (RS232/485). Wide voltage DC 12-24V Phoenix terminal input. Supports watchdog, wake-on-LAN, PXE boot, and TPM 2.0 security.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker I19
Material: All-aluminum Alloy Structure
CPU: Core I5 1235U Processor 12M Cache, up to 4.40 GHz
Security: TPM 2.0
Memory: 2 x SODIMM DDR5 4800 MT/s, Max. 64GB
Storage: 1 x M. 2 2280 M-Key PCIE 1x NVME/SATA SSD, mSATA SSD
Network: 3 x I210-AT Gigabit LAN LAN1 support Vpro, 1 x I219-LM Gigabit LAN
Display: 2 x DP(Resolution 7680 x 4320 @60Hz)
LAN: 3 x Intel i210-AT, 1 x Intel i219-LM 1000M Ethernet
Expansion: 1 x Full Length Mini PCIE slot for WiFi/4G, with Nano SIM slot
Optional Expansion: CAN module, COM, GPIO, 4G Module, WIFI/BT Module etc

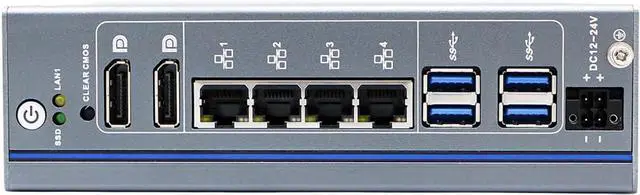

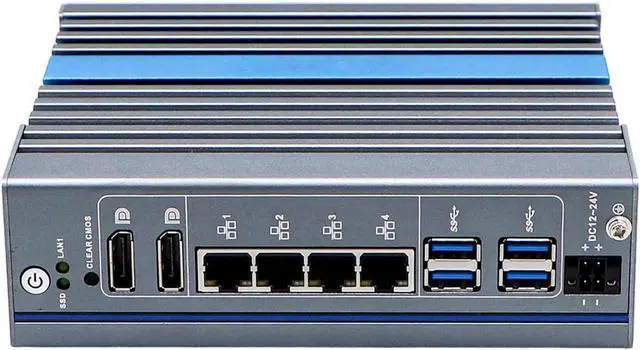

I/O Port: Power Switch, Clear CMOS, 2 x DP, 4 x LAN, 4 x USB 3.0, DC_IN 12-24V Wide Voltage 4-pin Phoenix Terminal
COM: Standard None, Optional 2xCOM (COM1/2RS232/485), contact us if need.
Power: DC100-240V AC/50-60hz, 12V 7.5A, 1 x 4Pin Phoenix Terminal Power Supply
Operating Temperature: -20°C ~ + 60°C, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 205 x 146 x 50mm
Weight: 1.54 kgs
TDP: 15-55W
Cooling system: Fanless
Packing List: Partaker I19 book-style industrial computer, power supply, power cord, book-style mount, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level

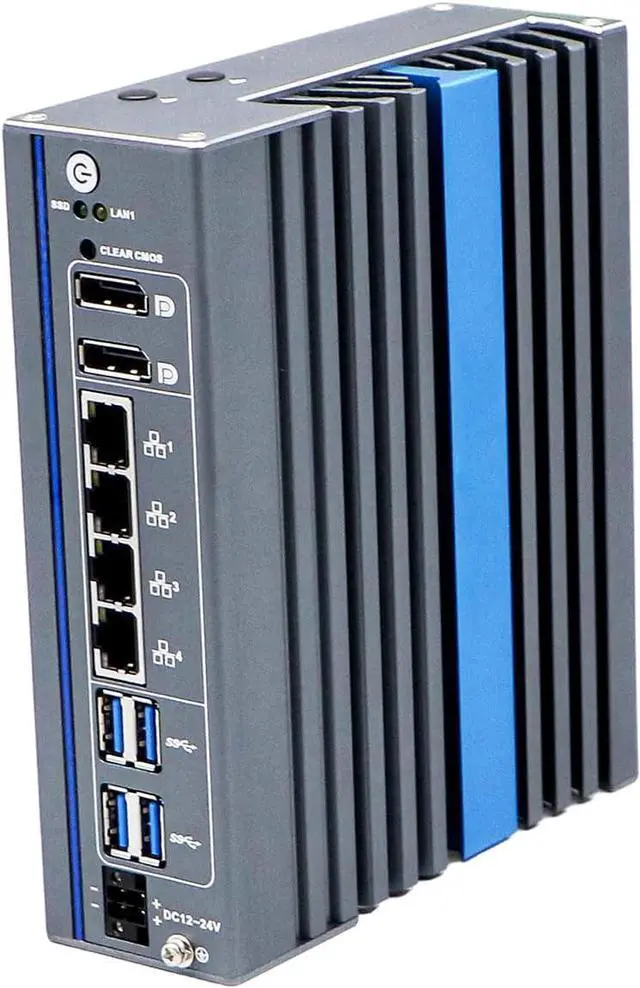

Installation: Supports Desktop, Din Rail, Book-Style vertical flat wall-mounted and other fixing methods, default as book-style method,
if need Din Rail, please leave us message once order placed, thanks.
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
Application: Industrial Automation, Medical, Logistics&Transportation, Warehousing, e-education and other fields.
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.
Material: All-aluminum Alloy Structure
CPU: Core I5 1235U Processor 12M Cache, up to 4.40 GHz
Security: TPM 2.0
Memory: 2 x SODIMM DDR5 4800 MT/s, Max. 64GB
Storage: 1 x M. 2 2280 M-Key PCIE 1x NVME/SATA SSD, mSATA SSD
Network: 3 x I210-AT Gigabit LAN LAN1 support Vpro, 1 x I219-LM Gigabit LAN
Display: 2 x DP(Resolution 7680 x 4320 @60Hz)
LAN: 3 x Intel i210-AT, 1 x Intel i219-LM 1000M Ethernet
Expansion: 1 x Full Length Mini PCIE slot for WiFi/4G, with Nano SIM slot
Optional Expansion: CAN module, COM, GPIO, 4G Module, WIFI/BT Module etc
I/O Port: Power Switch, Clear CMOS, 2 x DP, 4 x LAN, 4 x USB 3.0, DC_IN 12-24V Wide Voltage 4-pin Phoenix Terminal
COM: Standard None, Optional 2xCOM (COM1/2RS232/485), contact us if need.
Power: DC100-240V AC/50-60hz, 12V 7.5A, 1 x 4Pin Phoenix Terminal Power Supply
Operating Temperature: -20°C ~ + 60°C, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 205 x 146 x 50mm
Weight: 1.54 kgs
TDP: 15-55W
Cooling system: Fanless
Packing List: Partaker I19 book-style industrial computer, power supply, power cord, book-style mount, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
Installation: Supports Desktop, Din Rail, Book-Style vertical flat wall-mounted and other fixing methods, default as book-style method,
if need Din Rail, please leave us message once order placed, thanks.
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
Application: Industrial Automation, Medical, Logistics&Transportation, Warehousing, e-education and other fields.
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.
