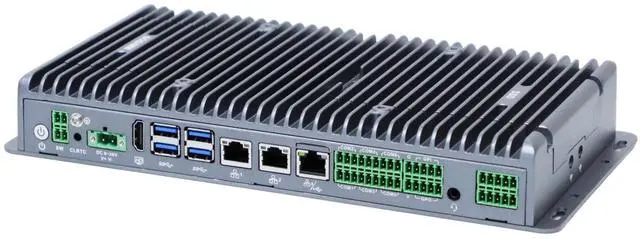

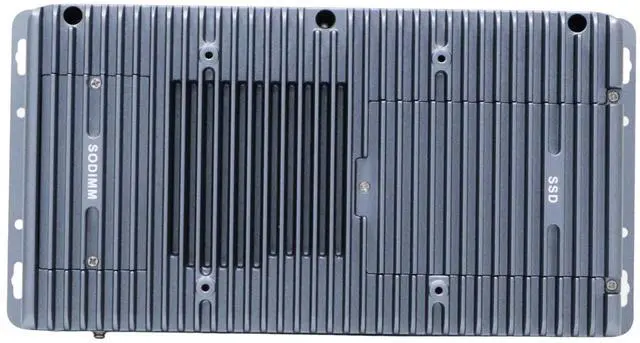

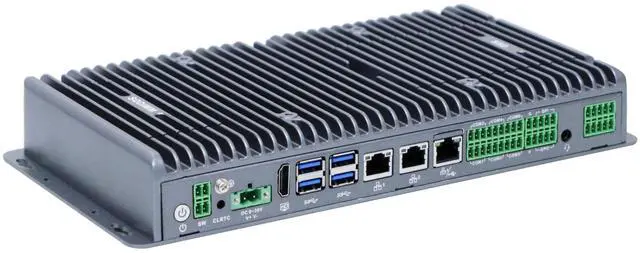

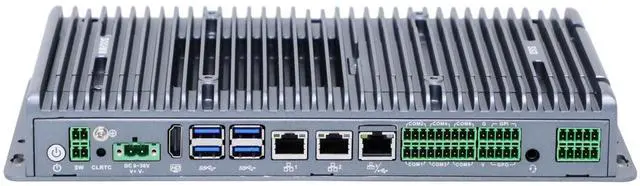

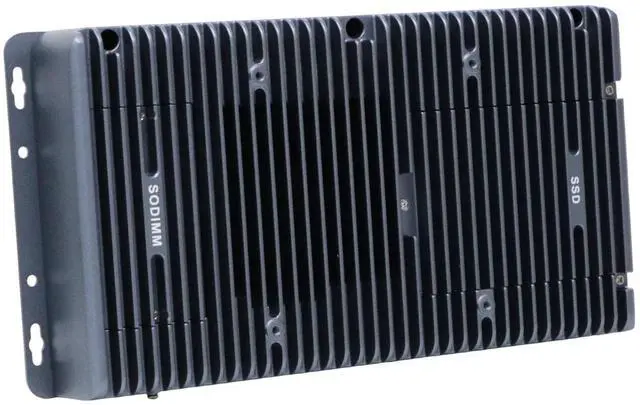

Partaker Embedded Industrial Computer, Fanless Mini PC, I5 1235U, I10, 3 x LAN, HDMI, 6 x COM, TPM2.0, 9~36V DC, 8G RAM, 128G SSD
- Rugged Fanless Design Durable allaluminum alloy construction, silent passive cooling, and a slim 40mm profile for spacelimited industrial environments.
- High Performance Processing Supports 10 core/12 thread processors with up to 4.4 GHz turbo, delivering powerful computing for edge AI, machine vision, and automation.
- Rich Industrial I/O 6x COM ports (COM12 isolated RS485, COM34 RS232/485, COM56 RS232), 3x Ethernet (2x GbE + 1x 2.5GbE), 4x USB 3.2, and 8channel GPIO for flexible device connectivity.
- Wide Power & Temperature Range Accepts 9 to 36V DC input with reverse polarity protection; operates from -20°C to +60°C (industrial SSD) for harsh environments.
- Versatile Storage & Expansion Dual M.2 2280 slots (NVMe/SATA), 2.5 drive bay, Mini PCIe with SIM slot, and M.2 EKey for wireless modules, supporting RAID 0/1.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker I10
Material: All-aluminum alloy structure, fanless System
CPU: Core I5 1235U Processor 12M Cache, up to 4.40 GHz
Highlights: 4cm height, ideal for limited space
Security: TPM 2.0
Memory: 1 x DDR5 4800MHz SO DIMM slot, Max 32GB
Storage: 2 x M. 2 2280 slots (1 x NVME X1/ SATA protocol, 1 x NVME X 4 protocol only) and 1 x 2.5 -inch SSD/HDD, Support RAID 0/1;
Network: 2 x Intel i210-AT 10/100/1000M Ethernet ports, 1 x Intel i226-LM Ethernet port
Expansion: 2 x M. 2 2280 slots(1*NVME X1/ SATA protocol, 1*NVME X 4 protocol only).
1 x MINI PCIe slot (optional WIFI/3G/4G), onboard a SIM card slot.
1 x M. 2 E-Key slot(M. 2 CNV
Io2 WIFI6 )
Expandable interface (not included in standard shipment) GPIO (8 inputs, 8 outputs)
Display Ports: 1 x HDMI
I/O Port: 2 x Intel Gigabit Ethernet port, 1 x Intel 2.5G Ethernet port, 4 x USB 3.2, and 1 x HDMI, 6 x COM ports
COM1~2 RS485 mode with isolation;
COM3~4 RS232/485 mode is optional;
COM5~6 RS232;
1 x power button, custom interface, 1 x CMOS clear button, 1 x audio/video combo port, and GPIO (4 inputs and 4 outputs).
One 2 x 2pin Phoenix switch terminal, 1 x DC power supply Phoenix terminal.
Power: DC 9 ~ 36V wide voltage input, supports reverse polarity protection
Operating Temperature: 0 ~ +50 (commercial HDD), -20 ~ +60 (industrial SSD), surface airflow
Working Humidity: 5%~95% non-condensing
Size: 280 x 143 x 40mm
Weight: 1.45 kgs
Cooling system: Fanless
Packing List: Embedded computer, power supply, power cord, warranty card
Function: TPM 2.0 security encryption, power-on, timed power-on, wake-up from network, PXE boot, watchdog (0) ~Level 255)
System Support: Windows 10 IoT, Windows 11 (IoT/Professional), Linux
System Default Option: Windows 11 pro in English
Application: Edge AI Computing, Machine Vision, Factory Automation
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.
Material: All-aluminum alloy structure, fanless System
CPU: Core I5 1235U Processor 12M Cache, up to 4.40 GHz
Highlights: 4cm height, ideal for limited space
Security: TPM 2.0
Memory: 1 x DDR5 4800MHz SO DIMM slot, Max 32GB
Storage: 2 x M. 2 2280 slots (1 x NVME X1/ SATA protocol, 1 x NVME X 4 protocol only) and 1 x 2.5 -inch SSD/HDD, Support RAID 0/1;
Network: 2 x Intel i210-AT 10/100/1000M Ethernet ports, 1 x Intel i226-LM Ethernet port
Expansion: 2 x M. 2 2280 slots(1*NVME X1/ SATA protocol, 1*NVME X 4 protocol only).
1 x MINI PCIe slot (optional WIFI/3G/4G), onboard a SIM card slot.
1 x M. 2 E-Key slot(M. 2 CNV
Io2 WIFI6 )
Expandable interface (not included in standard shipment) GPIO (8 inputs, 8 outputs)
Display Ports: 1 x HDMI
I/O Port: 2 x Intel Gigabit Ethernet port, 1 x Intel 2.5G Ethernet port, 4 x USB 3.2, and 1 x HDMI, 6 x COM ports
COM1~2 RS485 mode with isolation;
COM3~4 RS232/485 mode is optional;
COM5~6 RS232;
1 x power button, custom interface, 1 x CMOS clear button, 1 x audio/video combo port, and GPIO (4 inputs and 4 outputs).
One 2 x 2pin Phoenix switch terminal, 1 x DC power supply Phoenix terminal.
Power: DC 9 ~ 36V wide voltage input, supports reverse polarity protection
Operating Temperature: 0 ~ +50 (commercial HDD), -20 ~ +60 (industrial SSD), surface airflow
Working Humidity: 5%~95% non-condensing
Size: 280 x 143 x 40mm
Weight: 1.45 kgs
Cooling system: Fanless
Packing List: Embedded computer, power supply, power cord, warranty card
Function: TPM 2.0 security encryption, power-on, timed power-on, wake-up from network, PXE boot, watchdog (0) ~Level 255)
System Support: Windows 10 IoT, Windows 11 (IoT/Professional), Linux
System Default Option: Windows 11 pro in English
Application: Edge AI Computing, Machine Vision, Factory Automation
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.
