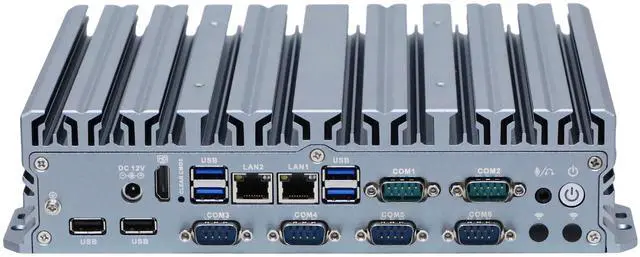

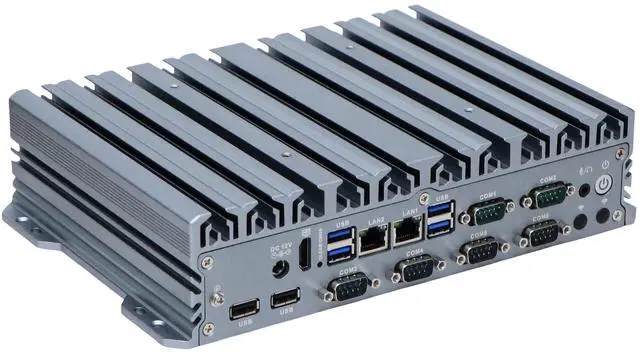

Partaker Fanless Industrial PC, Embedded Computer, Mini PC, Windows 11 / Linux Ubuntu, I5 4300U, I34, 2 x LAN, 6 x COM, 6 x USB, HDMI, DC 12V, 8G RAM 128G SSD
Limited time offer, ends 12/06 By Partaker Mini PC‘s Marketplace
- Advanced Processing Power: Features 4th Gen Core i5 4300U processor with support for up to 16GB DDR3 memory, delivering reliable computing performance for industrial applications.
- Rich I/O Connectivity: Comprehensive interfaces including 6 COM ports (RS232/485 configurable), 4×USB 3.0, 2×USB 2.0, and dual Gigabit Ethernet with Wake-on-LAN/PXE support.
- Flexible Storage Configuration: Dual storage options with one mSATA slot and one 2.5" SATA HDD bay, enabling scalable storage solutions for various operational needs.
- Rugged Industrial Design: Fanless aluminum alloy construction ensures silent, dust-resistant operation across wide temperature ranges (-20 to 60) for harsh environments.
- Expansion Versatility: Features mini-PCIE slots for WiFi/3G/4G modules and optional GPIO (4-in/4-out) configuration, supporting custom industrial automation requirements.
- Certified Reliability: Meets CE, FCC, and RoHS certifications, guaranteeing quality and compliance for global industrial, medical, and logistics applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker I34
Material: High-quality all aluminum, surface hard anodized
Color: Gray (color can be customized)
CPU: Intel Core i5-4300U Processor, 3M Cache, up to 2.90 GHz
BIOS: AMI EFI BIOS
Memory: 2*DDR3/16G Max
Storage: 1*m SATA/1* 2.5 HDD
Network: 2* RTL8111H 10M/100M/1000M Gigabit network ports
Display Port: 1*HDMI

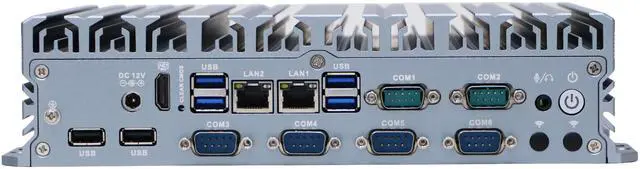

I/O Ports: 1*DC power supply, 1*HD, 4*USB 3.0, 2*USB 2.0 (J 1900: 1 *USB 3.0, 5*USB 2.0 ), 6*COM (COM1-2 RS232/485), 1*Audio two-in-one, 1*power button,
2* Realtek Gigabit network ports, support Wake on LAN /PXE, 1* CLEAR CMOS button
Expansion: 2*Mini PCIE (1*support WIFI/BT/3G/4G with SIM card holder, the other support wifi)
Power: DC 12V input, customizable DC 9~36V wide voltage input(contact us if need 9~36V, add extra cost)
Working Temperature: 0 ~ +50 (hard disk), -20 ~ +60 (solid state drive), surface air flow
Work Humidity: 5%~95% non-condensing
Size: 260 * 173 * 61 mm
Weight: 2.5 kg

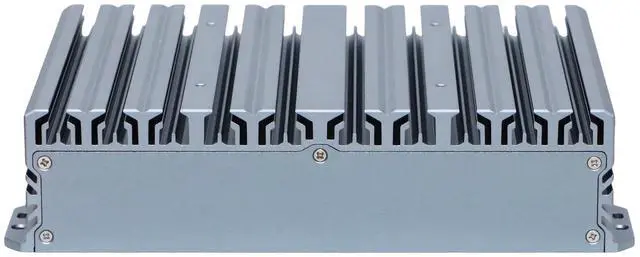

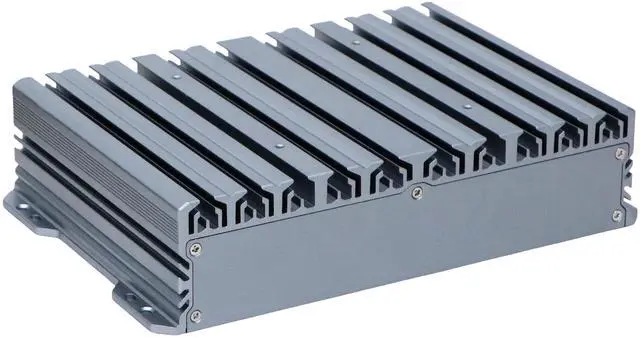

Cooling system: Fanless
Other Function: Auto power on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0~255)
Packing List: Partaker I34 industrial pc, power supply, power cord, warranty card
System Support: Windows 10/11, Linux Ubuntu
System Default Option: Windows 11 pro in English
Application: Industrial automation, medical, logistics and transportation, warehousing, electronic education etc.
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
Material: High-quality all aluminum, surface hard anodized
Color: Gray (color can be customized)
CPU: Intel Core i5-4300U Processor, 3M Cache, up to 2.90 GHz
BIOS: AMI EFI BIOS
Memory: 2*DDR3/16G Max
Storage: 1*m SATA/1* 2.5 HDD
Network: 2* RTL8111H 10M/100M/1000M Gigabit network ports
Display Port: 1*HDMI
I/O Ports: 1*DC power supply, 1*HD, 4*USB 3.0, 2*USB 2.0 (J 1900: 1 *USB 3.0, 5*USB 2.0 ), 6*COM (COM1-2 RS232/485), 1*Audio two-in-one, 1*power button,
2* Realtek Gigabit network ports, support Wake on LAN /PXE, 1* CLEAR CMOS button
Expansion: 2*Mini PCIE (1*support WIFI/BT/3G/4G with SIM card holder, the other support wifi)
Power: DC 12V input, customizable DC 9~36V wide voltage input(contact us if need 9~36V, add extra cost)
Working Temperature: 0 ~ +50 (hard disk), -20 ~ +60 (solid state drive), surface air flow
Work Humidity: 5%~95% non-condensing
Size: 260 * 173 * 61 mm
Weight: 2.5 kg
Cooling system: Fanless
Other Function: Auto power on, Timing boot, Wake on LAN, PXE boot, watchdog (level 0~255)
Packing List: Partaker I34 industrial pc, power supply, power cord, warranty card
System Support: Windows 10/11, Linux Ubuntu
System Default Option: Windows 11 pro in English
Application: Industrial automation, medical, logistics and transportation, warehousing, electronic education etc.
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
