Partaker Fanless Mini PC, Embedded Computer, I5 4200U, B6, 2 x LAN, VGA HDMI Dual Display, 2 x COM, 6 x USB, DC 12V, 8G RAM, 64G SSD
- 4th Gen Dual-Core Processor Based on Haswell architecture, 2 cores / 4 threads, 1.6GHz base / 2.6GHz turbo, low power consumption for industrial and embedded workloads.
- Fanless Aluminum Chassis Passive cooling design ensures silent, dustresistant, and maintenancefree 24/7 operation in harsh environments.
- Dual COM Ports (RS232/485) Easy connection to PLCs, sensors, meters, and industrial automation equipment for device control and data acquisition.
- Dual Independent Video Outputs One VGA and one digital video output (supports up to 3280×2000@60Hz) for digital signage, HMI terminals, or dualscreen workflows.
- Dual Gigabit Ethernet & Wireless Expansion Two GbE ports for network security and gateway applications; dual Mini PCIe slots (one for mSATA, one for WiFi/3G/4G with SIM slot).
- Wide Temperature & 12V DC Input Operates from -20°C to +50°C with industrial SSD; supports DC 12V input for vehicles, factories, and remote sites.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker B6
Processor: Intel Core i5-4200U processor (2-core 4-thread, base 1.6 GHz, turbo up to 2.6 GHz)
Architecture: Haswell
Memory: 1 x DDR3L 1333/1600 MHz memory slot, Max 8 GB
Storage: 1 x MINI PCIe slot, 1 x 2.5 -inch hard drive bay
Display chip: Intel HD Graphics 4400
Display: 1 x VGA, 1 x HDMI, (HDMI resolution up to 3280x2000@ 60Hz)
Lan Port: 2 x RTL8111H 10/100/1000M Gigabit Ethernet cards

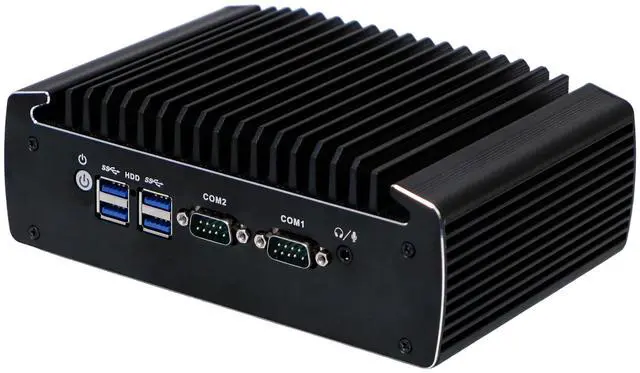

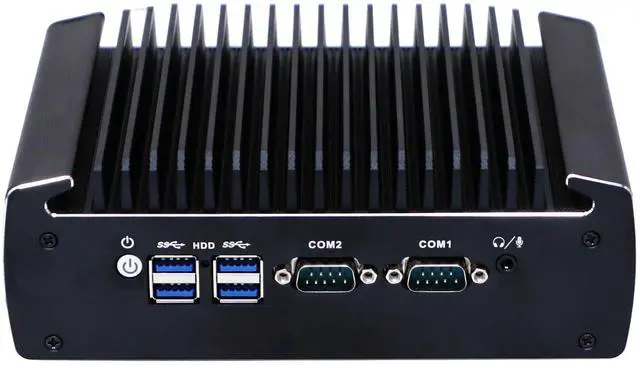

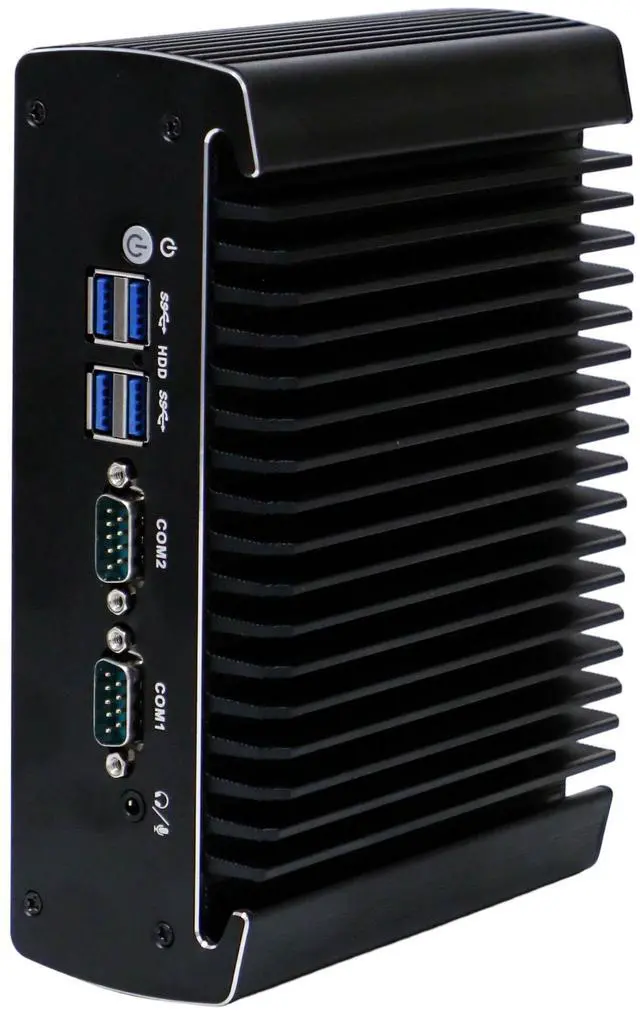

Front I/O: 1 x Power button, 4 x USB 3.0, 2 x COM(RS232/485), 1 x MIC/SPK

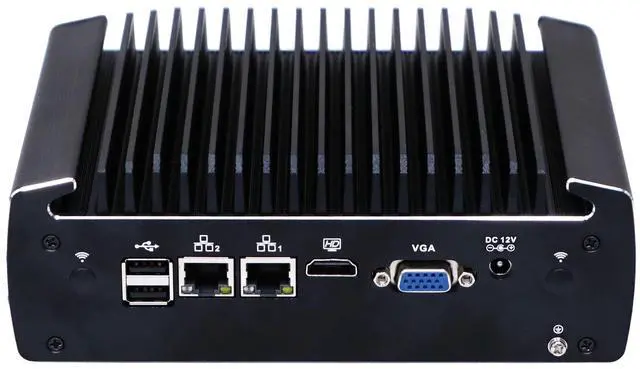

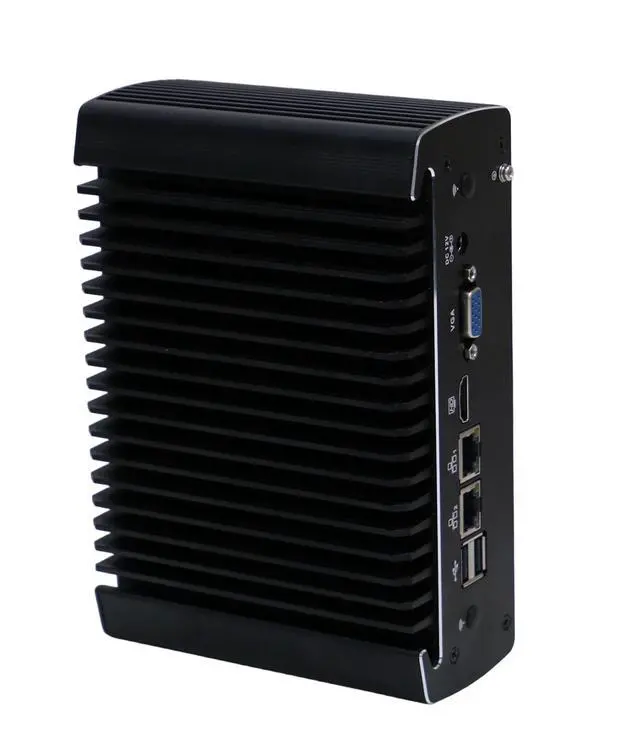

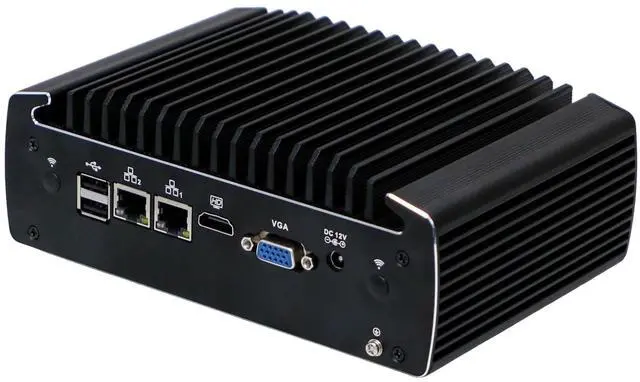

Rear I/O: 1 x DC, 1 x VGA port, 1 x HDMI, 2 x RJ45 network, 2 x USB 2.0
Expansion: 1 x MINI PCIe slot (only supports MSATA SSD)
1 x MINI PCIe slot (with Wi-Fi/3G/4G option) and built-in SIM card slot
Scalable interface (not included in standard shipments): 1 x USB 2.0, 8 x GPIO pins (Contact us and pay extra if need)
More Function: Auto power on, Timing boot, Wake on LAN, PXE boot
Input Voltage: Supports DC 12V input
Size: 186 * 126.6 * 66 mm
Weight: 1.32KG s
Work Temp: 0°C to +40°C (Commercial HDD), -20°C to +50°C (Industrial SSD), surface air flow.
Humidity: 5% to 95% non-condensing
System Support: Windows 7/10/Linux, Linux Ubuntu
Material: High-quality all aluminum, surface anodic oxidation
Color: Metal gray (color customizable)
Application: Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education, etc.
Processor: Intel Core i5-4200U processor (2-core 4-thread, base 1.6 GHz, turbo up to 2.6 GHz)
Architecture: Haswell
Memory: 1 x DDR3L 1333/1600 MHz memory slot, Max 8 GB
Storage: 1 x MINI PCIe slot, 1 x 2.5 -inch hard drive bay
Display chip: Intel HD Graphics 4400
Display: 1 x VGA, 1 x HDMI, (HDMI resolution up to 3280x2000@ 60Hz)
Lan Port: 2 x RTL8111H 10/100/1000M Gigabit Ethernet cards
Front I/O: 1 x Power button, 4 x USB 3.0, 2 x COM(RS232/485), 1 x MIC/SPK
Rear I/O: 1 x DC, 1 x VGA port, 1 x HDMI, 2 x RJ45 network, 2 x USB 2.0
Expansion: 1 x MINI PCIe slot (only supports MSATA SSD)
1 x MINI PCIe slot (with Wi-Fi/3G/4G option) and built-in SIM card slot
Scalable interface (not included in standard shipments): 1 x USB 2.0, 8 x GPIO pins (Contact us and pay extra if need)
More Function: Auto power on, Timing boot, Wake on LAN, PXE boot
Input Voltage: Supports DC 12V input
Size: 186 * 126.6 * 66 mm
Weight: 1.32KG s
Work Temp: 0°C to +40°C (Commercial HDD), -20°C to +50°C (Industrial SSD), surface air flow.
Humidity: 5% to 95% non-condensing
System Support: Windows 7/10/Linux, Linux Ubuntu
Material: High-quality all aluminum, surface anodic oxidation
Color: Metal gray (color customizable)
Application: Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education, etc.
