Partaker Industrial Computer, IPC, Fanless Mini PC, Windows 11 / Linux Ubuntu, I5 7287U 7360U, I24, 2 x COM, 4 x USB3.0, 4 x USB2.0, 2 x LAN, HDMI, VGA, 32G RAM 1TB SSD
Limited time offer, ends 10/27 By Partaker Mini PC‘s Marketplace
- Powered by Core i5 7287U/7360U processors with up to 3.70GHz turbo frequency and Intel Iris graphics for high-performance industrial computing.
- Dual storage support via M.2 2280 (NVMe/SATA) and 2.5-inch SSD/HDD, plus DDR4 RAM up to 32G for scalable expansion.
- Rich I/O: 8x USB ports, dual Gigabit Ethernet, 2x RS232, VGA+HD-MI dual display, and 4G/WIFI expansion via Mini PCIe.
- Industrial durability: all-aluminum hard-anodized chassis, 12V DC wide voltage input, and stable operation at 0°C to 45°C.
- Certified with CE/FCC/RoHS, featuring TPM 2.0 encryption and auto-power functions for embedded applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker I24
Material: High-quality all aluminum, surface hard anodized
Color: Metallic Gray (color can be customized)
CPU: Intel Core i5-7287U (dual-core 4 threads, base frequency 3.3 GHz, up to 3.7 GHz)
BIOS: AMI EFI BIOS
Memory: DDR4 2133/2400/2666 SODIMM memory slots, i5-7287U & i5-8350U 1*DDR4 Ram, Max 32G
Storage: 1*M. 2 2280 slot, 1* 2.5 -inch HDD/SSD
Network: 2* Realtek 8111H 10/100/1000M Ethernet
Display Port: 1*VGA, 1*HDM (HDM resolution up to 4096x2304@24Hz)
Expansion: 1* M. 2 2280 M-Key slot (support SATA & NVME, PCIE 3.0X 4), 1* MINI PCIE slot (PCIe & USB 2.0 protocol, support 4G/WIFI), built-in Nano-SIM card slot

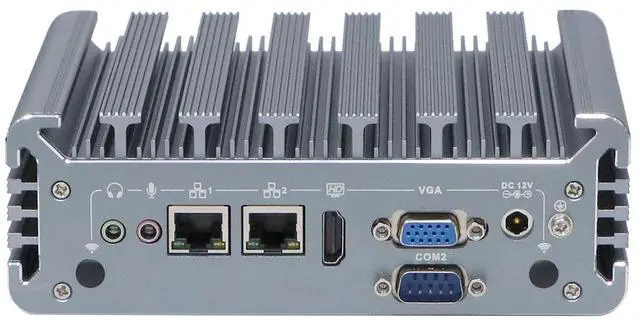

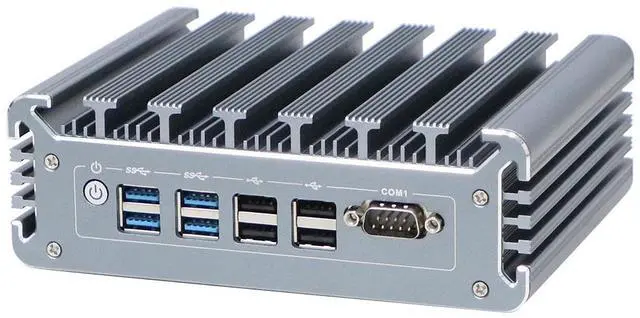

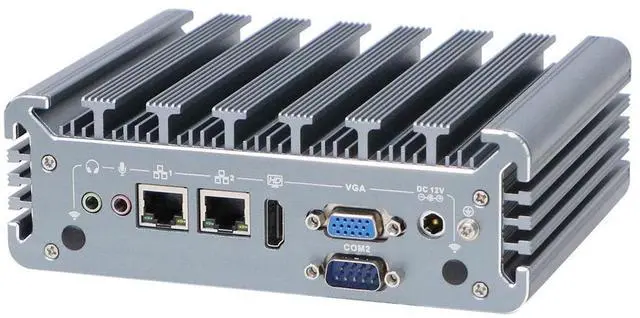

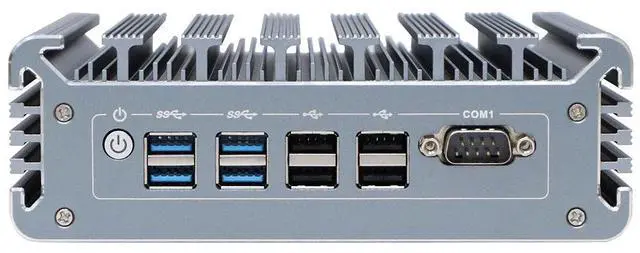

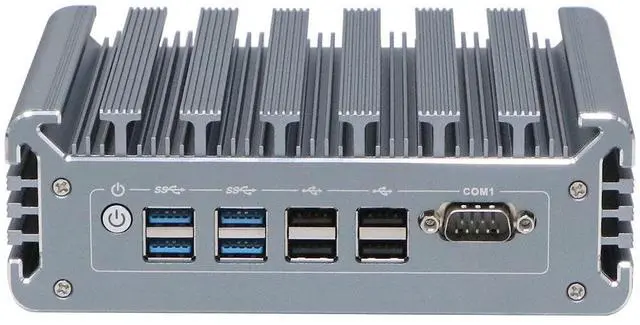

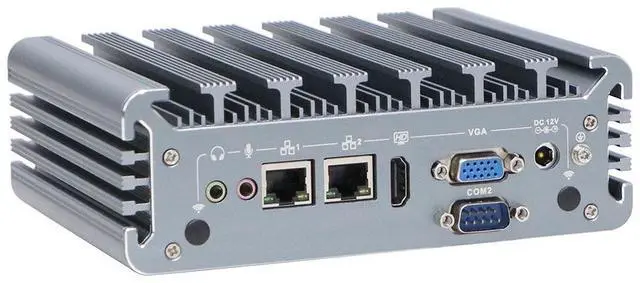

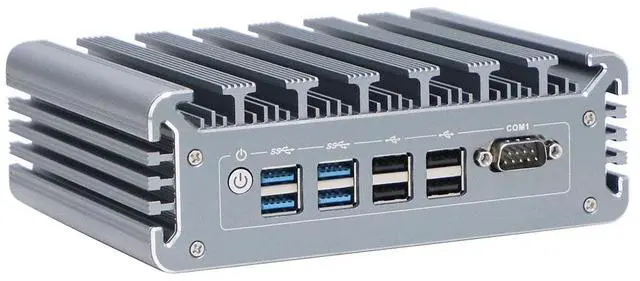

I/O Port: 1*Power button, 4*USB 3.0, 4*USB 2.0, 1*COM RS232, 1*DC, 1*VGA, 1*HDI, 2*RJ45 network ports, 1*COM RS232, 1 Mic, 1 Line Out
Power: DC 12V
Working Temperature: 0°C~+45°C
Work Humidity: 5%~95% non-condensing
Size: 166 * 127 * 55.5 mm
Weight: 1.19 kgs
Cooling system: Fanless
Other Function: Auto power on, Timing boot, Wake on LAN, PXE boot, TPM 2.0 security encryption
Packing List: Partaker I24 industrial pc, power supply, power cord, warranty card
System Support: Windows 10/11, Linux Ubuntu
System Default Option: Windows 11 pro in English
Application: Industrial automation, medical, logistics and transportation, warehousing, electronic education etc.
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
Material: High-quality all aluminum, surface hard anodized
Color: Metallic Gray (color can be customized)
CPU: Intel Core i5-7287U (dual-core 4 threads, base frequency 3.3 GHz, up to 3.7 GHz)
BIOS: AMI EFI BIOS
Memory: DDR4 2133/2400/2666 SODIMM memory slots, i5-7287U & i5-8350U 1*DDR4 Ram, Max 32G
Storage: 1*M. 2 2280 slot, 1* 2.5 -inch HDD/SSD
Network: 2* Realtek 8111H 10/100/1000M Ethernet
Display Port: 1*VGA, 1*HDM (HDM resolution up to 4096x2304@24Hz)
Expansion: 1* M. 2 2280 M-Key slot (support SATA & NVME, PCIE 3.0X 4), 1* MINI PCIE slot (PCIe & USB 2.0 protocol, support 4G/WIFI), built-in Nano-SIM card slot
I/O Port: 1*Power button, 4*USB 3.0, 4*USB 2.0, 1*COM RS232, 1*DC, 1*VGA, 1*HDI, 2*RJ45 network ports, 1*COM RS232, 1 Mic, 1 Line Out
Power: DC 12V
Working Temperature: 0°C~+45°C
Work Humidity: 5%~95% non-condensing
Size: 166 * 127 * 55.5 mm
Weight: 1.19 kgs
Cooling system: Fanless
Other Function: Auto power on, Timing boot, Wake on LAN, PXE boot, TPM 2.0 security encryption
Packing List: Partaker I24 industrial pc, power supply, power cord, warranty card
System Support: Windows 10/11, Linux Ubuntu
System Default Option: Windows 11 pro in English
Application: Industrial automation, medical, logistics and transportation, warehousing, electronic education etc.
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
