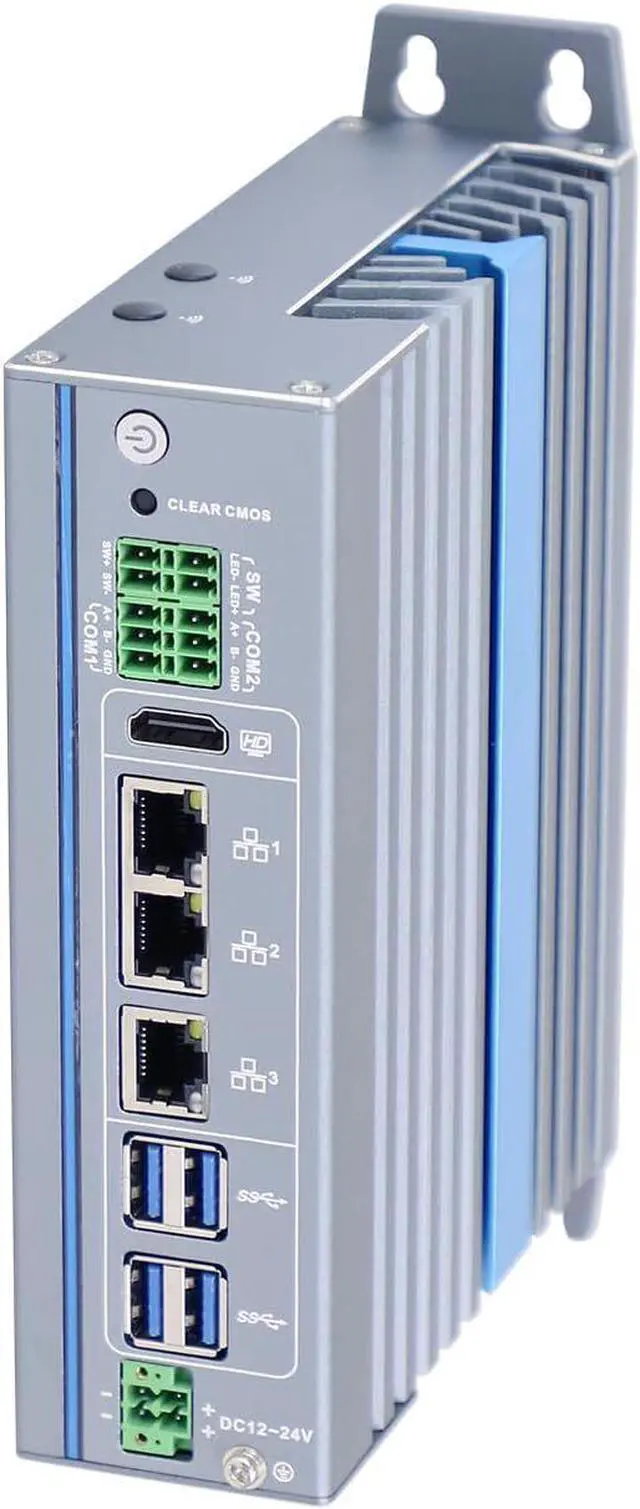

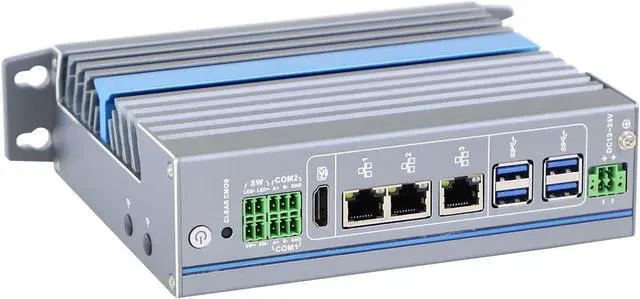

Partaker Book-Style Computer Industrial PC, Mini PC, N97, I30, 3 x LAN, 12-24V 4-pin Phoenix Terminal, 2 x RS485, Expandable CAN, 8G RAM, 128G SSD
- Powerful N97 Quad-Core Processor (Up to 3.6GHz) 4-thread CPU with integrated UHD graphics. Supports DDR4 3200MHz memory (up to 16GB) and 4K output via 1x high-definition display port (3840x2160@60Hz). Ideal for industrial automation, medical, and logistics.
- Fanless All-Aluminum Heat Dissipation Completely silent, dust-proof, and maintenance-free. Operates reliably from -20 to +50 with surface airflow. Perfect for harsh environments where moving parts fail. Long lifespan, compact size 205x146x50mm, 1.53kg.
- Triple Gigabit Ethernet & Rich I/O 3x high-speed Gigabit LAN ports, 4x USB 3.0, 2x COM (default RS485, optional photoelectric isolation), remote switch, and power indicator. Ready for high-bandwidth networking, security gateways, and edge computing.
- Versatile Storage & Expansion 1x M.2 2280 SATA SSD slot, 1x MSATA slot, and 1x full Mini PCIe slot (supports 4G/WiFi/BT) with internal Nano SIM card slot. Supports SSD + wireless/4G simultaneously for flexible connectivity.
- Flexible Power & Advanced Management Wide DC 12V~24V input via 14-pin Phoenix terminal. Supports timing boot, wake-on-LAN, PXE boot, watchdog timer (0-255 level), and TPM 2.0 security encryption. Mounting: wall mount (standard), DIN-rail (optional), or desktop.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker I30
Material: Aluminum
CPU: Alder Lake N97 CPU 6M Cache, up to 3.60 GHz
Memory: 1 x SODIMM DDR4 3200 MT/s, max. 16GB
Storage: 1 x M. 2 2280 M-Key SATA SSD, mSATA SSD
Network: 3 x I210-AT Gigabit LAN
Expansion: 1 x Full Length Mini PCIE slot for WiFi/4G, with Nano SIM slot
Optional Expansion: CAN module etc(Pay extra, contact us if need)

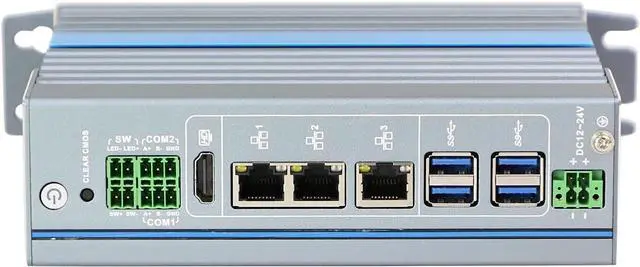

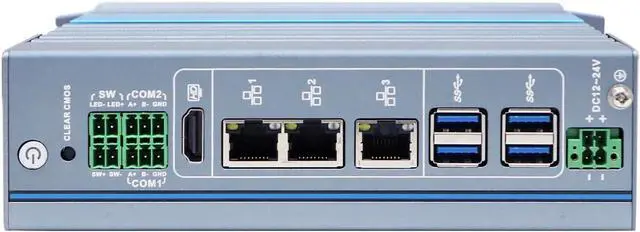

I/O Port: Power Switch, Clear CMOS, Switch Signal for Remote Switch and Power Supply Indicator Light, 2 x RS485 Optical Isolation,
HDMI, 3 x LAN, 4 x USB 3.0, DC_IN 12-24V 4-pin Phoenix Terminal
Power: DC100-240V AC/50-60hz, 12V5A, DC 12V~24V input, 14 Pin power supply Phoenix terminal.
Operating Temperature: -20°C ~ +50°C, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 205 x 146 x 50mm
Weight: 1.53 kgs
TDP: 12W
Cooling system: Fanless
Packing List: I30 book-style industrial pc, power supply, power cord, book-style mount, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level, TPM 2.0
Installation: Supports Desktop, Din Rail, Book-Style vertical flat wall-mounted and other fixing methods, default as book-style wall mount method,
if need Din Rail, please contact us after order placed.
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
Application: Industrial Automation, Medical, Logistics &Transportation, Warehousing, E-education and etc
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.
Material: Aluminum
CPU: Alder Lake N97 CPU 6M Cache, up to 3.60 GHz
Memory: 1 x SODIMM DDR4 3200 MT/s, max. 16GB
Storage: 1 x M. 2 2280 M-Key SATA SSD, mSATA SSD
Network: 3 x I210-AT Gigabit LAN
Expansion: 1 x Full Length Mini PCIE slot for WiFi/4G, with Nano SIM slot
Optional Expansion: CAN module etc(Pay extra, contact us if need)
I/O Port: Power Switch, Clear CMOS, Switch Signal for Remote Switch and Power Supply Indicator Light, 2 x RS485 Optical Isolation,
HDMI, 3 x LAN, 4 x USB 3.0, DC_IN 12-24V 4-pin Phoenix Terminal
Power: DC100-240V AC/50-60hz, 12V5A, DC 12V~24V input, 14 Pin power supply Phoenix terminal.
Operating Temperature: -20°C ~ +50°C, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 205 x 146 x 50mm
Weight: 1.53 kgs
TDP: 12W
Cooling system: Fanless
Packing List: I30 book-style industrial pc, power supply, power cord, book-style mount, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level, TPM 2.0
Installation: Supports Desktop, Din Rail, Book-Style vertical flat wall-mounted and other fixing methods, default as book-style wall mount method,
if need Din Rail, please contact us after order placed.
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
Application: Industrial Automation, Medical, Logistics &Transportation, Warehousing, E-education and etc
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.
