PFCTART 200W 12V/24V Solar Panel Kit High Efficiency Mono Solar Module for RV Camper

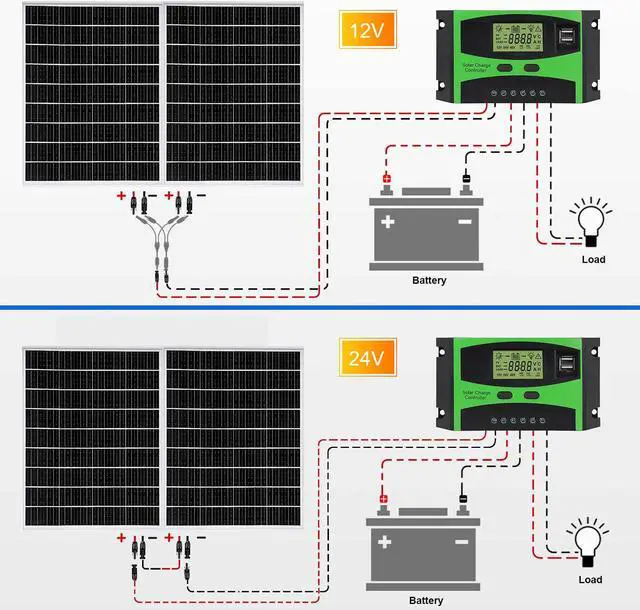

The world's leading innovative design. Compared with the 200W 18V solar panel on the market, our solar panel has very strong flexibility and practicability in multi-panel installation. Our kit has corresponding accessories. According to the voltage requirements of your charging equipment, DIY combination can be selected for series or parallel installation to reach 18V or 36V to meet your different needs.



Features:

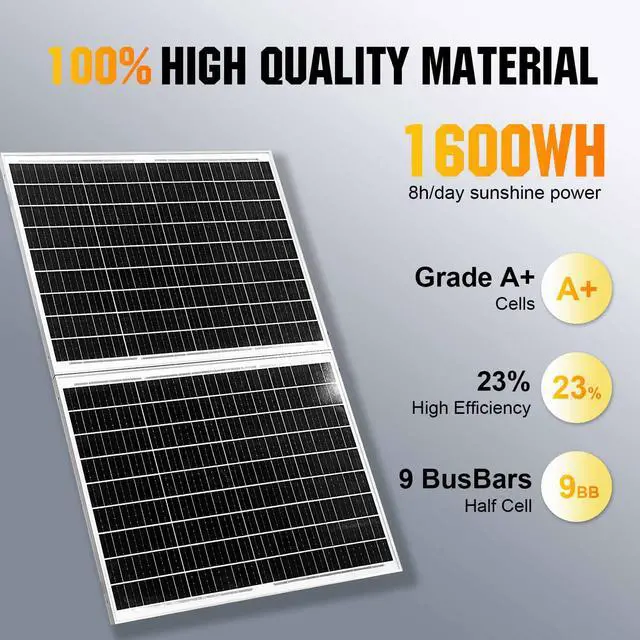

High Conversion Efficiency
Over 90% transferable power output in 10-year, 80% transferable power output in 20-year.
Under 8 hours full sunshine:
200W solar panel generating 1.6KWH per day



Upgraded DesignPFCTART monocrystalline solar panel upgraded the latest half-cut cell technology, which makes the solar panels obtain better and more stable performance. Compared to regular solar panel, half-cut cell technology can reduce power loss, lower solar panel temperature and reduce the impact of shading on performance.

Easy to install
It comes with pre-drilled mounting holes, solar connector leads, and a junction box. Allowing you to install, connect it to a controller, or expand with panels without breaking a sweat. The panels are made of premium Grade A+ monocrystalline solar cells that are more efficient than conventional polycrystalline solar cells.

High Quality

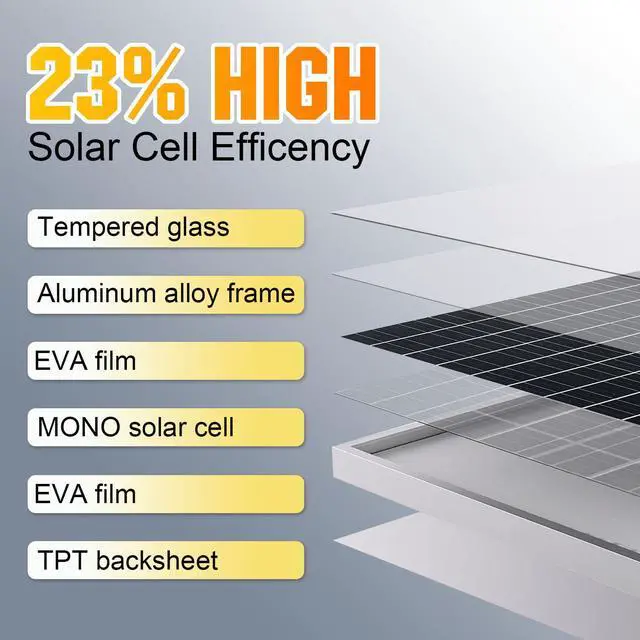

The panel is covered with a special glass to protect against the bad environmental conditions. Good quality frame, withstands high winds (2400Pa) and snow loads (5400Pa).

Built to LastCorrosion-resistant aluminum frame of this solar panel provides extended outdoor use that ensures the panel can last for decades. The IP65-rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.

Specification:


200W Solar Panel Kit

Maximum Power: 200W

High Efficient Monocrystalline


Each Solar Panel Product size: 76*58*3 cm( 29.92 * 22.83 * 1.18 inch)

After Splicing Product size: 76*116*3 cm( 29.92 * 45.66 * 1.18 inch )

Net weight: 4.58 KG *2



Specification parameters of Each 100W Panel

Maximum Power: 100W

Open Circuit Voltage (Voc): 21.6V

Maximum/Peak Voltage (Vmp): 18V

Short Circuit Current (Isc): 6.2A

Working Current (Iop): 5.55A

Output Tolerance: ±3%

Charge Voltage: 12V

Frame: Aluminum alloy frame

Temperature Range: -40 to +80(-40°F to +176°F)

J-Box IP Rating: IP65

Product size: 76*58*3 cm( 29.92 * 22.83 * 1.18 inch)

Net weight: 4.58 KG


How Many Solar Panels Do You Need To Buy?
1-4 Solar Panels For Boat power generation
1-6 Solar Panels For RV Power Generation
1-30 Solar Panels For House power generation
More Welcome to consult!

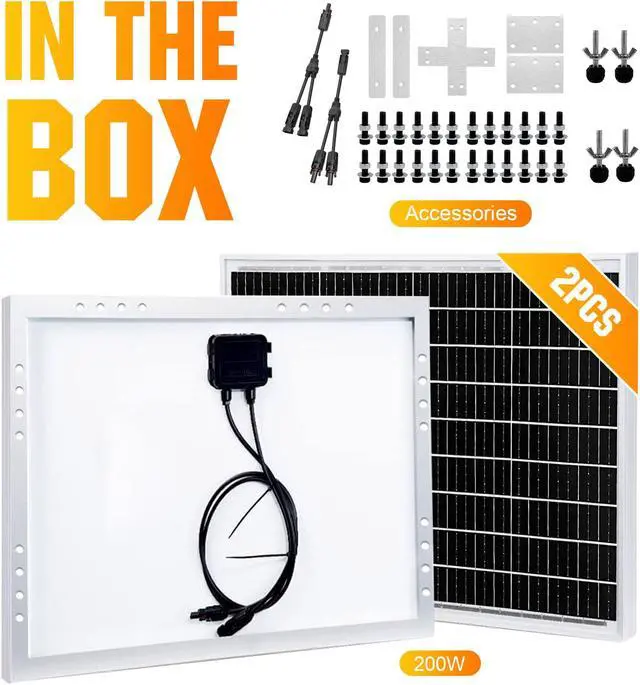

Packages Includes
100W Solar Panel *2
1 tow 2Y link cable *1 pair
6 hole center post firmware *2
2 hole bezel firmware *2
Cross-shaped middle link firmware *1 (it is only used when 4 solar panels are assembled together)
Mounting screws *1 pack
