Phanteks PH-F120MP 120mm PWM High Static Pressure Radiator Fan
- 500-1800 +/- 250 RPM 53.3 CFM
- 25 dB (A)

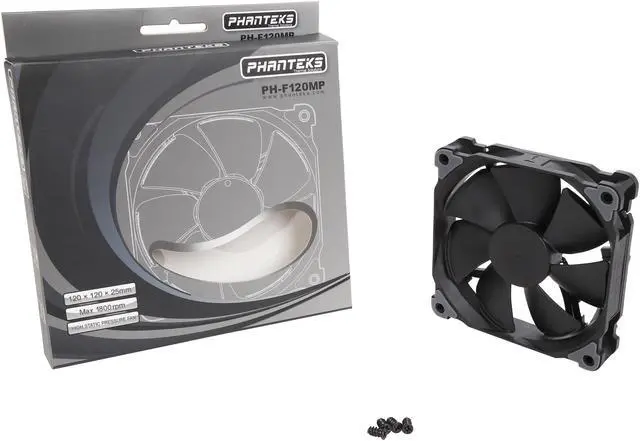

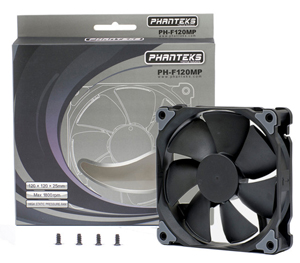

Phanteks PH-F120MP 120mm Radiator Fan
The PH-F120MP is a high-performance, quiet high static pressure radiator fan. Up to seven high pressure blades with MVB2 feature produces high static air pressure, allowing for a direct and focused airflow. This makes it ideal for the densely packed fins of a radiator. The UFB bearing, composed by MOSS and SSC systems, ensures long lifespan and consistent operation. The back frame of the fan is meticulously redesigned to create better structural strength. The larger base size with a magnetic brushless DC motor provides maximum rotational stability, while the acoustic dampers, along with the optimized PCBA and frame rib, effectively minimize the vibration and noise. Plus, the exclusive polarity auto-restart protection ensures the fan is always working correctly.

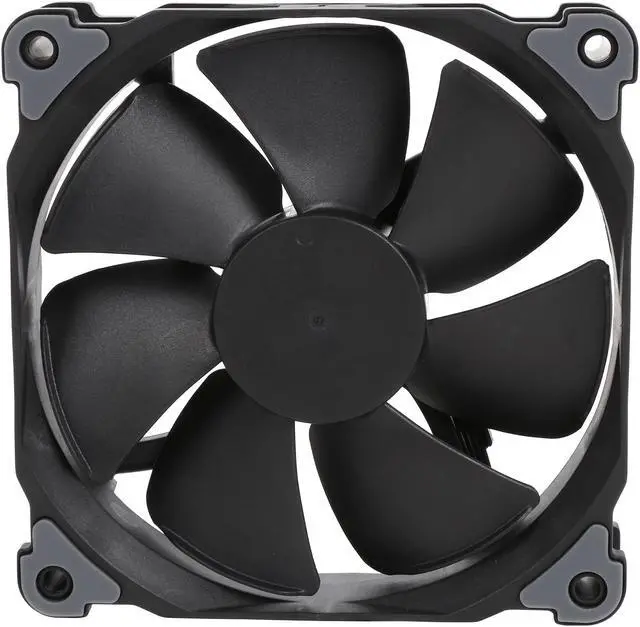

MVB2 (Maelström Vortex Booster 2)
The new seven high pressure MVB2 blades are precisely angled to generate a silent controlled airflow. The blades produce a downdraft vortex, allowing for greater amount of air passage through and reduce airflow turbulence across the surface of the blades to create significantly better performance and airflow while keeping noise to a minimum.
UFB Bearing (Updraft Floating Balance Bearing)
Phanteks’ UFB bearings are composed by MOSS and SSC system. MOSS has an effective fan hub-blade ratio to achieve a dynamic balance, thus floating the axis for minimal air noise. SSC increases the bearing life span to ensure that the fan axis is consistently operating without mechanical noise.
Polarity Auto-Restart Protection
Phanteks’ unique fan circuit design provides a Fan Polarity Auto-Restart feature. The sensor inside of the fan will constantly send a series of rectangular signals to your PC M/B indicating that the fan is working correctly. The unique restart feature provides optimal support and protection.
Minimizes the Vibration
The PH-F120MP comes with pre-installed rubber pads to help reduce vibration occurrences.
Maximum Rotation Stability
The PH-F120MP has a larger base size with a magnetic brushless DC motor to avoid the effects of resonance, ensuring maximum rotational stability.
Warranty & Returns
Warranty, Returns, And Additional Information
- Limited Warranty period (parts): 5 years
- Limited Warranty period (labor): 5 years
- Read full details
- Return for refund within: 30 days
- This item is covered by Jinghui Technology Return Policy
