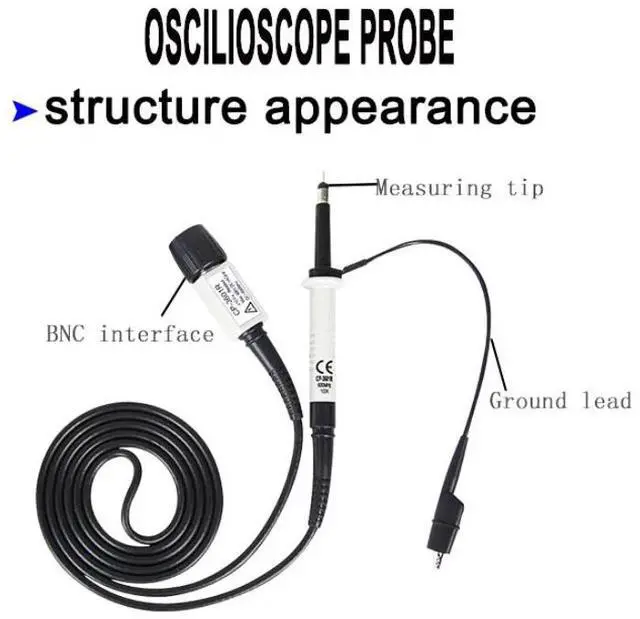

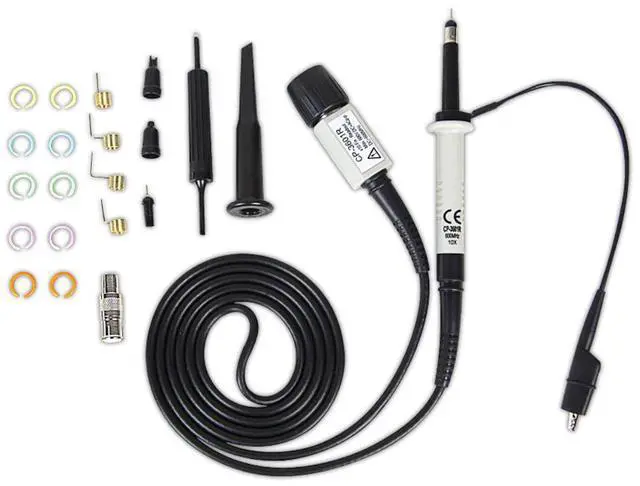

PINTECH 10X Oscilloscope Probe 600MHz Passive High Voltage Probes 12pF, 600V, 0.5% Accuracy, Lab Scope Probe with BNC Connector, CP-3601R
- Bandwidth: 600MHz. CP3601R passive voltage probe features with high precision, high speed.
- Universal oscilloscope probe's Attenuation Ratio is 10X.
- Accuracy: ±0.5%. Rise Time: 0.58ns. Input Impedance: 10M.
- Max. Rated Input Voltage: 600V.
- Widely Used: The passive high voltage probe features with standard BNC interface, compatible with all oscilloscopes.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

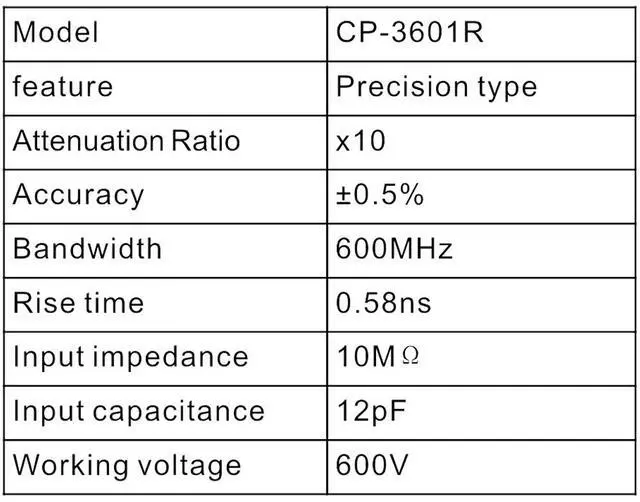

MODEL: CP-3601R
Input Impedance: 10M
Attenuation Rate: 10X
Bandwidth: 600MHz
Rise Time: 0.58ns
Accuracy: ±0.5%
Input Capacitance: 12pF
Max. Rated Input Voltage: 600V
Cable Length: 1.2m/47.24in
Weight: 90g/0.2lb
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH CP-3601R is a 10X passive oscilloscope probe built for high-voltage signal measurement, making it suitable for lab users, engineers, and technicians who need up to 600MHz bandwidth, 600V rated input, and broad BNC oscilloscope compatibility.
Recommended For
- Engineers and lab technicians using 1 MΩ bench oscilloscopes who need a higher-bandwidth 10:1 passive probe for fast digital edges, clock lines, and general signal integrity checks up to the probe’s 600 MHz class.
- Users who want a passive probe with oscilloscope readout support, so the scope can auto-detect the 10:1 attenuation instead of relying on manual channel scaling.
- Electronics repair and validation workflows that need a standard BNC passive probe with a wide compensation range for swapping across multiple compatible scope channels and instruments.
- Bench users measuring ground-referenced power rails or higher-voltage nodes within the probe’s rating who prefer the simplicity and lower cost of a passive probe over an active accessory.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | General-purpose oscilloscope probe for signal measurement and debugging, provided as a single-probe pack |
| Model Identifiers | PINTECH CP-3601R (Part Number CP-3601R) |
| Physical And Packaging | Black finish, sold as a 1 pack |
