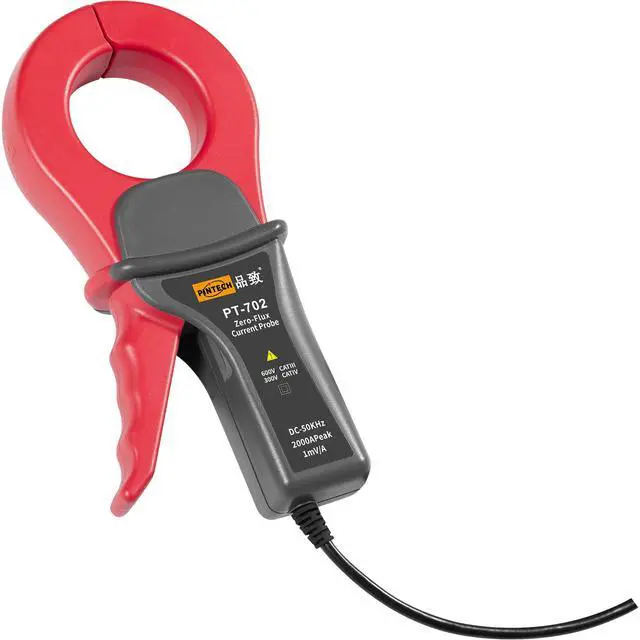

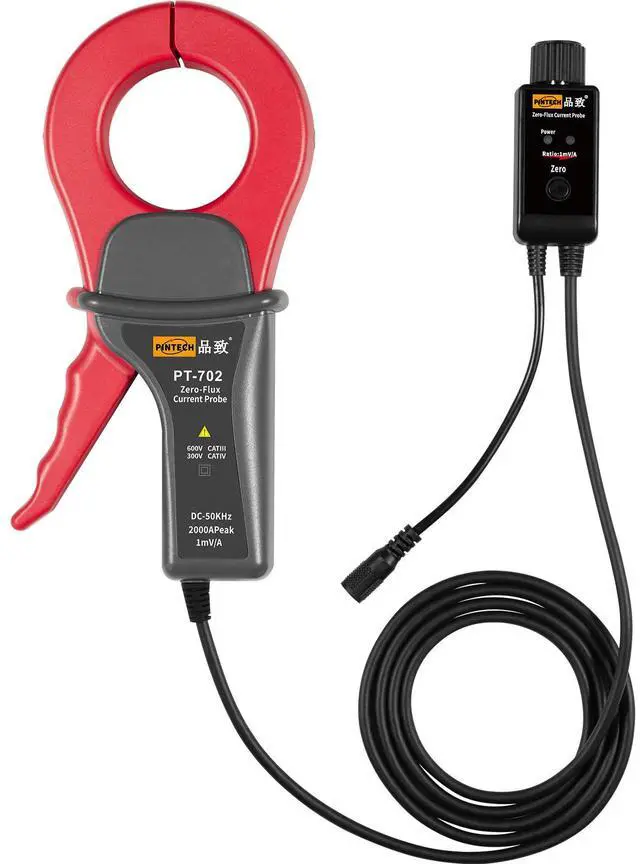

PINTECH AC/DC Current Clamp Probe for Oscilloscope 50kHz Bandwidth, 4000A, Zero Flux Current Probe with BNC Connector, PT-702
- Test Range: PINTECH PT-702 current clamp measure currents up to 4000A. 1000:1 ratio.
- High Precision: Zero flux current probes eliminate errors caused by core excess in DC measurements.
- Great Stability: The probe reduced insertion resistance, reducing the loading effect on the object to be measured, which can improve long-term stability of the current probe.
- Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes.

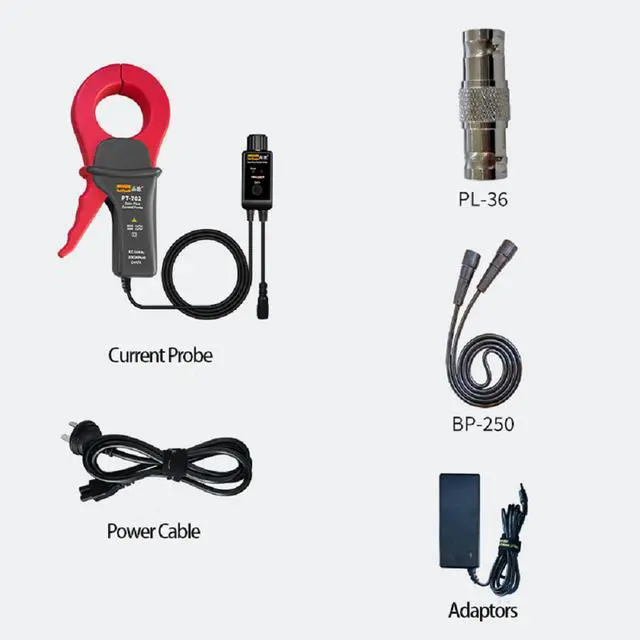

- Package Included: PT-702 AC/DC Current Probe x 1, Adaptors X 1, BNC Cable X 1, Power Cable X1, Adapter x 1, Manual x 1.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

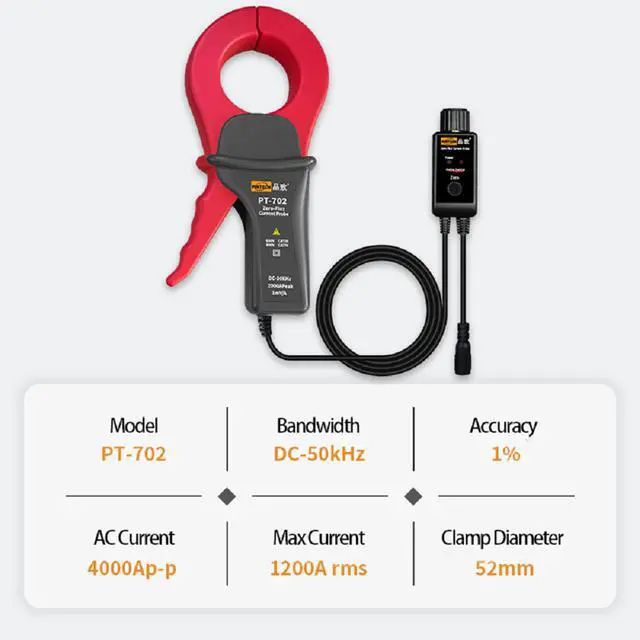

MODEL: PT-702
Bandwidth (-3dB): DC-50kHZ
AC Current: 4000Ap-p
Max Current: 1200A rms
DC Current: 2000A
Min Current: 500mA
Accuracy: 3%(Guaranteed); 1%(Typical
Temperature Drift/Zero Dift: <1mV
Auto-zero Accuracy:0.1mV
di/dt(Max): 20A/us
Load Impedance: 1M and 47pF
Coupling:AC/DC
Rise Time: 7s
Clamp Diameter: 52mm/2.05in
Ratio: 1mV/A(1000:1)
Size: 216 x 111 x 45 mm
Weight:650g/1.43lb
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH PT-702 is a zero-flux AC/DC current clamp probe for oscilloscopes, designed for electricians, test engineers, and industrial users who need high-current measurement up to 4000A with a standard BNC connection.
Recommended For
- Power electronics engineers checking high-current DC or low-frequency AC waveforms on buses, inverters, battery packs, or motor drives where non-intrusive clamp-on measurement matters more than MHz-class edge detail.
- Lab and service teams that need AC/DC current viewing on a standard oscilloscope through BNC, especially when using 1 MΩ scope inputs and working on industrial equipment with larger conductors.
- Users measuring sustained or slowly changing current in EV, solar, UPS, or industrial power systems who benefit from zero-flux behavior for DC accuracy and low drift over longer captures.
- Test engineers who need a large-aperture current probe for heavy cables or busbar-adjacent conductors, where a 52 mm jaw opening and 4000 A peak class are more relevant than compact probe size.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Oscilloscope-based measurement of high AC/DC currents via a BNC-connected clamp probe; suited for electricians and power-system/current testing |
| Model Identifiers | PINTECH PT-702 current clamp probe |
| Physical Dimensions | 216 x 111 x 45 mm — compact clamp-probe size suitable for portable or bench use |
