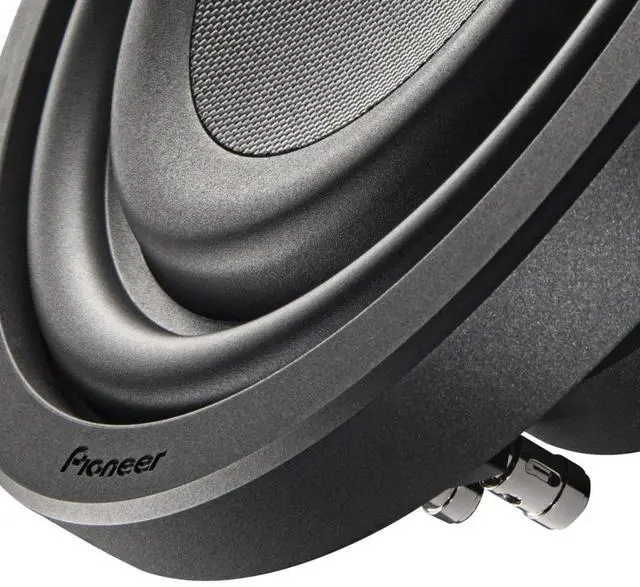

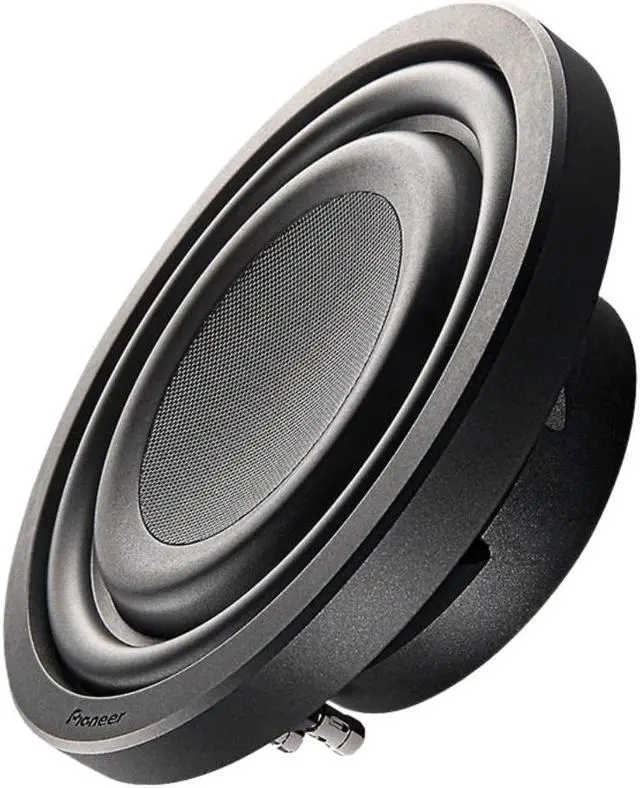

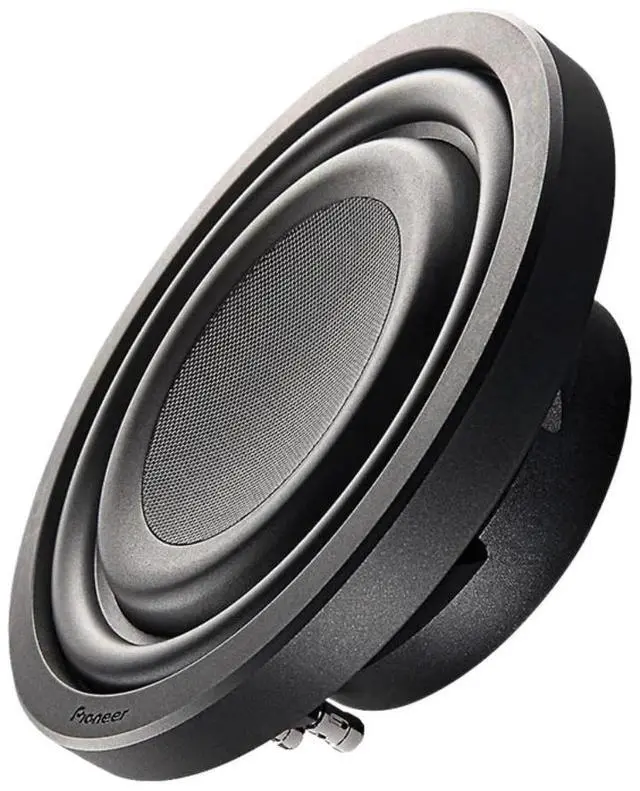

Pioneer TS-Z10LS4 10" Single 4 ohms Voice Coil Subwoofer

Pioneer TS-Z10LS4 10" 1300W Max Power Single 4 Ohm Voice Coil Subwoofer

The Pioneer TS-Z10LS4 Single 4 Ohm Voice Coil Subwoofer delivers exceptional performance with a maximum power output of 1300 Watts and a nominal power of 400 Watts. Featuring a 10" Twaron aramid fiber and cellulose fiber dual-layer cone, this subwoofer ensures powerful and precise bass. The butyl rubber surround enhances durability while providing excellent sound quality, while the dual poly-cotton spider offers consistent movement for improved bass response. Perfect for any audio enthusiast looking for deep, clear, and reliable bass performance.

Product Highlights:

• Condition: New


• Continuous Power Handling (RMS): 400W


• Frequency Response: 20 Hz to 3.8 kHz


• Maximum Peak Power Handling: 1300W


• Nominal Impedance: 4-Ohm


• Sensitivity (1W/1m): 76dB


• System Type: Component


• CarSoundFit: Yes


• Cut-Out Dimensions: 9-1/8" (23.18 cm)


• Equivalent Compliance (VAS): 23.7 Liters (0.83 Cu. Ft.)


• Free Air Resonance (Fs): 35


• Linear Excursion (Xmax): 9.5 mm (3/8")


• Mounting Depth: 3-1/4"


• Port Diameter: 3" (7.62 cm)


• Port Length: 7-1/2" (19.05 cm)


• Recommended Ported Box Volume: 17 Liters (0.60 Cu. Ft.)


• Recommended Sealed Enclosure Volume: 0.6 Cu. Ft. (17 Liters)


• Total Speaker "Q" (Qts): 0.52


• Basket Material: Die Cast Aluminum


• Cone Material: IMPP - Composite


• Damper: Poly cotton


• Drive Cone Material: Twaron Aramid Fiber


• Gasket: Rubber


• Installation Ring: Polypropylene


• Magnet Material: Ferrite


• Magnet Weight: 70.2 oz


• Surround Material: Rubber (Rolled)


• Voice Coil Bobbin: Glass Imide


• Voice Coil Type: Single Voice Coil


• Voice Coil Wire: Copper


• Wire Terminals: Push Type
