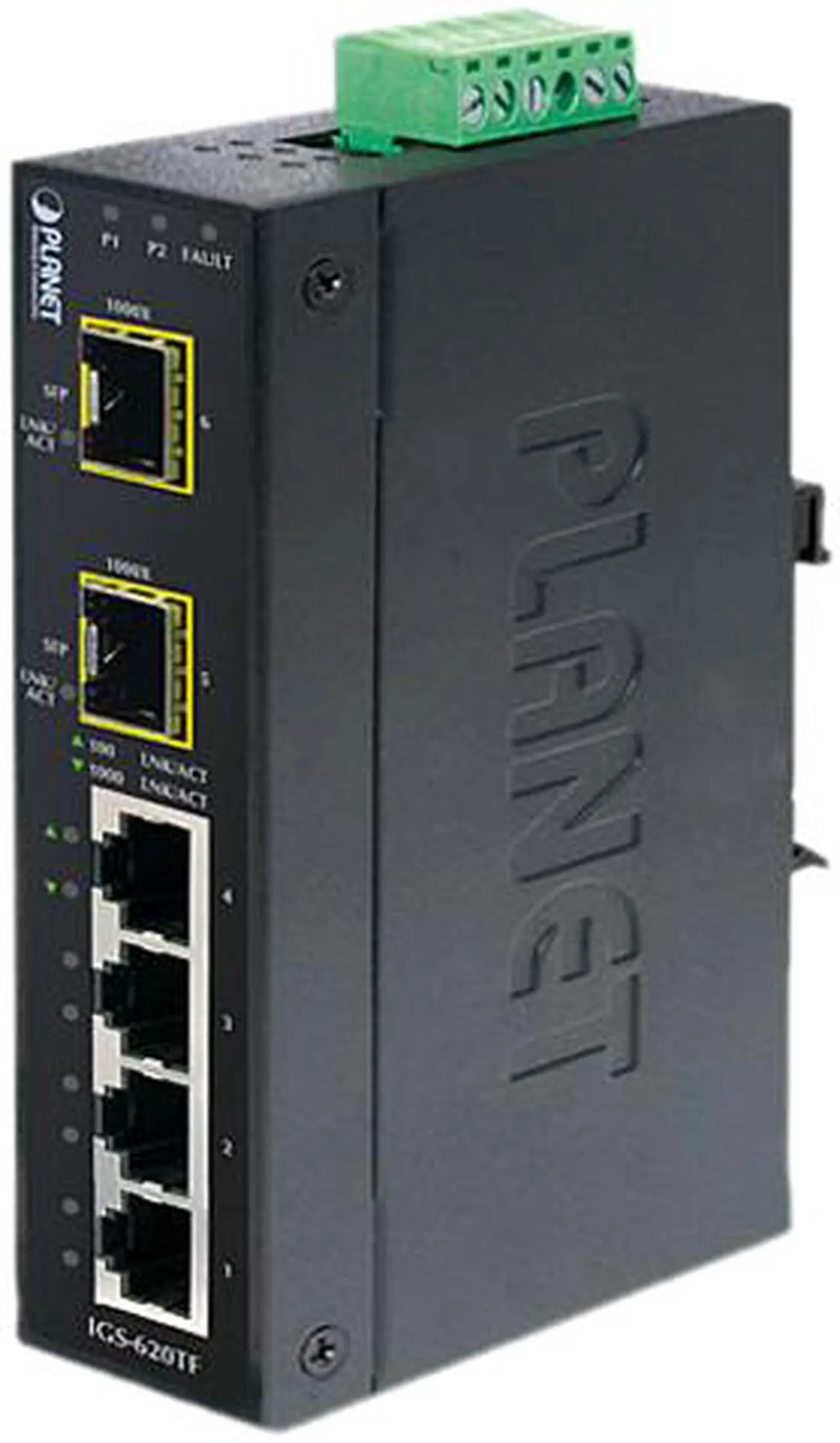

PLANET IGS-620TF Industrial 4-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
- 4-port 10/100/1000Base-T RJ-45 with auto MDI / MDI-X function
- 2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured
- Supports Auto-negotiation and 10/100 Mbps half / full duplex and 1000 Mbps full duplex mode
- 9K Jumbo Frame Size support
- Backplane (Switching Fabric): 12 Gbps
- Slim IP30 metal case protection
+
+
Learn more about the PLANET IGS-620TF
| Brand | PLANET |
|---|---|
| Model | IGS-620TF |
| Format | DIN Rail Kit and Wall Mount Ear |
|---|---|
| Standards | IEEE 802.3 Ethernet / 10Base-T IEEE 802.3u Fast Ethernet / 100Base-TX IEEE 802.3ab Gigabit Ethernet / 1000Base-T IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX IEEE 802.3x Full-Duplex Flow Control |
| Network Management Type | Unmanaged |
| Primary Ports | 4 x RJ45 + 2 x SFP |
|---|---|
| Primary Port Speed | 10/100/1000Mbps |
| MAC Address Table | 1K |
|---|---|
| Switching Method | Store and Forward |
| Jumbo Frames | 9216 bytes |
| LEDs | 3 x LED for System and Power: Green: DC Power 1 Green: DC Power 2 Green: Power Fault 2 x LED for Per Copper Port (Port-1~Port-4): Green: 1000 LNK/ACT Orange:100 LNK/ACT 1 x LED for Per mini-GBIC interface (Port-5 and Port-6): Green: LNK/ACT |
|---|---|
| Power | DC 12 - 48V or AC 24V Redundant power with polarity reverses protection function 7.2watts / 24BTU |
| Features | Physical Port: 4-port 10/100/1000Base-T RJ-45 with auto MDI / MDI-X function 2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured Fiber Port Redundancy: Link status auto-detect and redundant on Dual ports with the same connector type Only Primary-Port is active at a time, the Backup-Port is blocked When Primary-Port link failure occurs, the traffic will swap to Backup-Port automatically. Once the Primary-Port status is back to link-up, the traffic will swap from Backup-Port to Primary-Port. Layer 2 Features: Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex) 9K Jumbo Frame Size support Backplane (Switching Fabric): 12Gbps Integrated address look-up engine, support 1K absolute MAC addresses Automatic address learning and address aging CSMA/CD Protocol Industrial Case / Installation: Slim IP30 metal case protection DIN Rail and Wall Mount Design Redundant Power Design: 12 to 48V DC, redundant power with polarity reverse protect function AC 24V power adapter acceptable Supports EFT protection 6000 VDC for power line Supports 6000 VDC Ethernet ESD protection -40 to 75 degrees C operating temperature |
|---|
| Dimensions | 1.26" x 5.31" x 3.43" |
|---|---|
| Weight | 1.11 lbs. |
| Temperature | -40 - 75 degree Celsius |
|---|---|
| Humidity | 5% - 95%, Non-condensing |
| First Listed on Newegg | September 05, 2017 |
|---|
