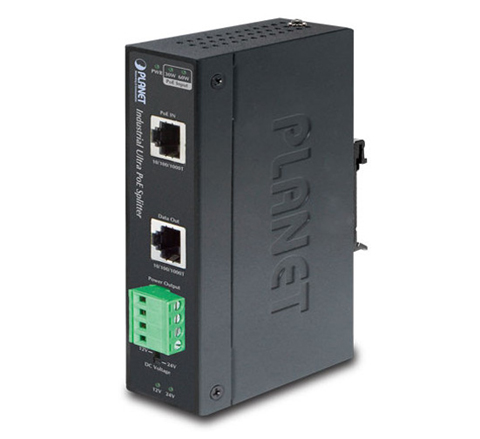

PLANET IPOE-171S Industrial Single-Port 10/100/1000Mbps Ultra PoE Splitter

The PLANET IPOE-171S Ultra Power over Ethernet Splitter delivers both the Ethernet digital data and PoE power from an Ultra PoE PSE (Power Source Equipment, sold separately) over an UTP cable to a non-PoE powered Ethernet device. It provides an ideal solution to directly transfer power to traditional non-PoE Ethernet devices – without the need to install additional power outlets and electrical cabling in the industrial environment.

The IPOE-171 splits the 50~56V DC power over RJ45 Ethernet cable into DC 12V/24V output. A selectable 12V/ 24V DC DIP switch is included. It supports passive 10/100/1000Mbps Ethernet connection and distance up to 100 meters. To fulfill the growing industrial applications, it features a rugged IP30 metal case, and is built to work under the operating temperature range from -40 to 75 °C. The DIN rail and wall mount design allow for easy installation.

Features

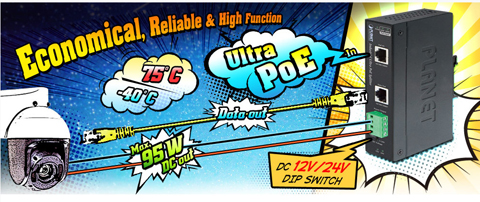

Quick and Easy Ultra Power PoE Network Deployment

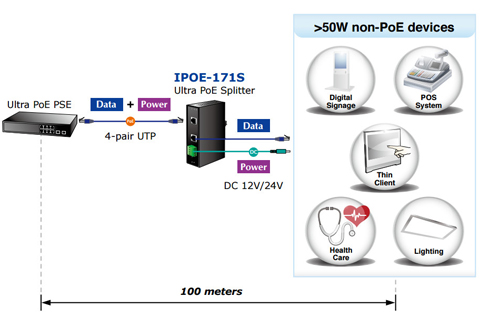

Many high-power required traditional Ethernet devices are not designed with PoE PD (Powered Device) capability to accept power over UTP cable. They can only get power through their DC jack while their RJ45 interfaces accept only Ethernet data. The IPOE-171S, functioned as an Ultra PoE PD (Powered Device), splits the combined data and power stream into two separate cords to offer more non-PoE applications, such as:

• POS
• AIO (All-in-One) touch PC and thin-client
• Digital signage and display tablet
• PTZ speed dome
• Other network devices that need higher power to work normally

Innovative, Selectable DC Power Output Voltage

Via the innovative 12/24 volt DIP switch on the front panel, the IPOE-171S can supply either 24V DC power to industrial equipment or 12V DC output to the common network devices. It highly increases the flexibility of the product applications.

Dual Power Output Capability

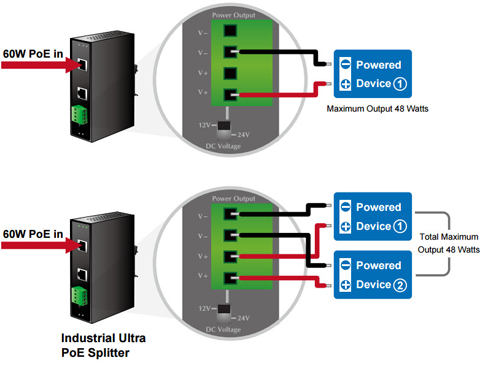

The IPOE-171S shares its 55-watt output power with not only a single power-hungry equipment but also two non-PoE Ethernet devices simultaneously through a 4-pin terminal block. For example, the two power output can be applied as shown below to completely solve the need of electric source:

• IP camera (Power 1) + Outdoor housing with fan and heater (Power 2)
• IP camera (Power 1) + Pan & Tilt motor (Power 2)
• Analog camera (Power 1) + IP video server (Power 2)

Environmentally Hardened Design

With compact, slim type IP30 industrial case protection, the space-saving Industrial Ultra PoE Splitter IPOE-171S can be placed in almost any difficult environment. It allows either DIN rail or wall mounting for efficient use of cabinet space. Being able to operate under the temperature range from -40 to 75 °C, the IPOE-171S is the ideal product for co-working with Industrial High Power Injector which can feed the power to non-PoE devices up to 100 meters (328 feet) away in those harsh environments.

Applications

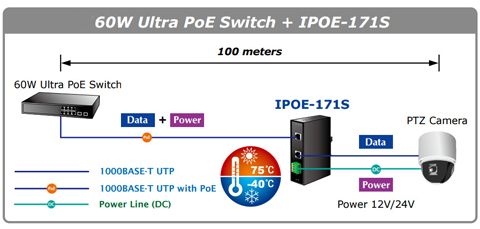

Ultra PoE Switch and Splitter Installation
