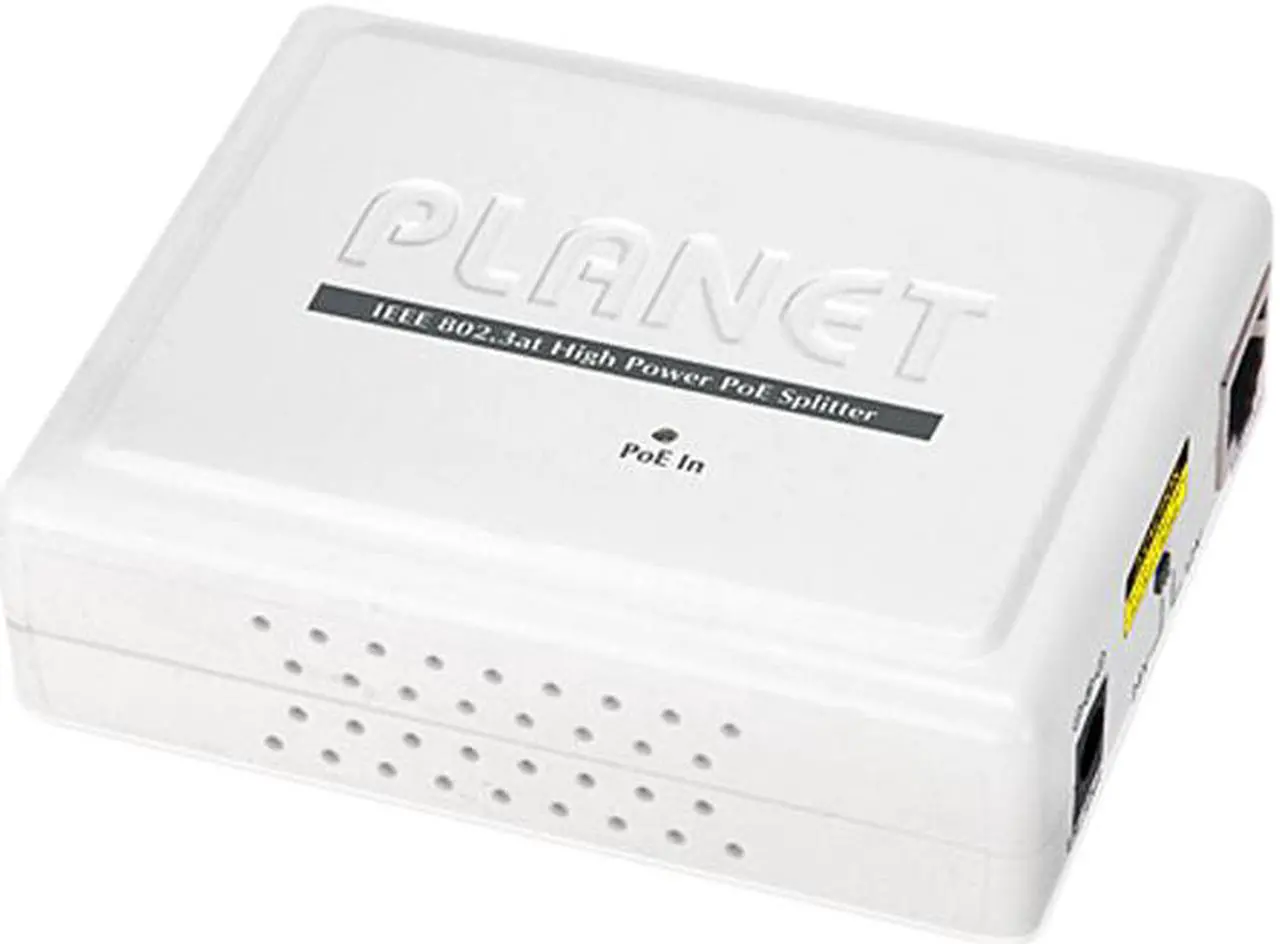

PLANET POE-162S IEEE 802.3at Gigabit High Power Over Ethernet Splitter

PLANET has released a next-generation Power over Ethernet Splitter product, POE-162S, compliant with brand-new IEEE 802.3at High Power over Ethernet standard that supports a maximum of 25.5 watts of input power. The POE-162S provides the following key features:
¦ IEEE 802.3at Power over Ethernet Standard Compliance
¦ 12V / 24V DC Power Output Through DIP Switch
¦ Passive 10/100/1000Mbps Duplex Mode Support
¦ Quick and Easy High Power PoE Network Deployment

The POE-162S is the IEEE 802.3at High Power over Ethernet Splitter that can split the 52 ~ 56V DC over the Ethernet cable into selectable 12V or 24V DC power output. It is designed specifically to meet the growing demand for higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome camera, color touch-screen / video and voice over IP (VoIP) telephones, multi-channel (11a / b / g / n) wireless LAN access points and other network devices that need to work normally by higher power feeding than power via current IEEE 802.3af PoE standard. The POE-162S High Power Splitter is an ideal solution to transfering power to the network device with high power demand directly via the RJ-45 port interface without the need to install power outlets and electrical cabling.

Interface
• 2-Port RJ-45 interfaces
    –1-Port PoE Power+ Data input
    –1-Port Data output
• 1 DC output plug connector

PoE
• Complies with IEEE 802.3at Power over Ethernet PD
• Splits the 52 ~ 56V DC power over RJ-45 Ethernet cable into DC 12V / 24V output
• Up to 1 non-IEEE 802.3at device can be powered
• Auto-detects of PoE IEEE 802.3at equipment and protects devices from being damaged by incorrect installation
• Adjustable two different output voltage options (12V / 2A, 24V / 1A) to fit various devices
• Distance up to 100 meters

Hardware
• Plastic case
• 12V / 24V DIP switch
• LED indicators power input indication

Standard Compliance
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3at Power over Ethernet standard
• FCC Part 15 Class A, CE
